By: Thorsten Overgaard. January 22, 2024. Most recent update September 22, 2024.
This is a continuous review that is continued from Page 1, Page 2, Page 3, Page 4, Page 5 and Page 6.
The Leica M11-D
In this article, I talk about the four generations of Leica digital mirrorless cameras without a screen. Here is the latest model, the Leica M11-D (released September 12, 2024).
Tired of the screen?
Try a camera without a screen
Back in 2005, when Leica was planning to make their first digital Leica M rangefinder camera, the idea was to not have a screen on the back of it. But according to people internally, the majority owner of Leica, Dr. Kaufmann, wanted a screen because he had bought a digital Canon, and he really liked that it had a screen.
To even bring a digital Leica into consideration, the chairman of Leica had to be replaced, and that was the first thing Dr. Kaufmann did. "He was a great guy, but he loved analog photography. Maybe he also really liked Leica’s campaign at Photokina (2004) 'I am a film dinosaur.' So I thought it was time to replace him and reorganize management."
At Photokina 2004 Leica did present the DMR digital back (10 MP) for the Leica R9 that they had made with Kodak and Imacon, and there was also the Leica Digilux 2 (5 MP). And then there was Epson who presented the world’s first digital rangefinder camera, the Epson R-D1 (6 MP) for Leica M lenses.
The chairman of the advisory board was ousted, but many of the old-timers at Leica Camera AG felt it would not be right to make the Leica M digital. So they fought for a camera that at least was a sort of Leica M film camera, only the film inside would be replaced with a digital sensor. They still saw the only right way to make a Leica M was a camera without a screen.
Having started buying into the Leica company in 2004, one of the things Dr. Kaufmann had to face was that even if he replaced key people in the management, many people on the floor and hidden in corners had been in the company for a lifetime and 'knew more about what a Leica should be than a new owner', or some Japanese toy designers for that matter. It took the next ten years to turn around the internal consensus of what a Leica is.
In retrospect, this stubborn attitude at Leica Camera AG to stay with the old days – is also what makes Leica great. There is a consistent love and buying power among Leica fans for anything classic Leica – the more yesteryear, the better. As seen in the lineup of digital Leica rangefinder cameras which all have a feel and look as a classic Leica film camera, and perhaps – if I am to point out a particular model for you – the Leica M10 (2017) that has an ISO dial resembling the film rewinder of the Leica M3 (1954). Also, three Leica M film cameras are still in production: The Leica MP (2004), the Leica M-A (2014), and the Leica M6 (2022).

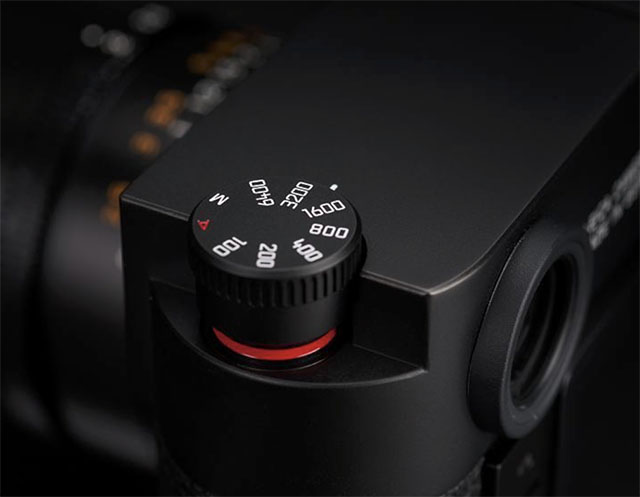

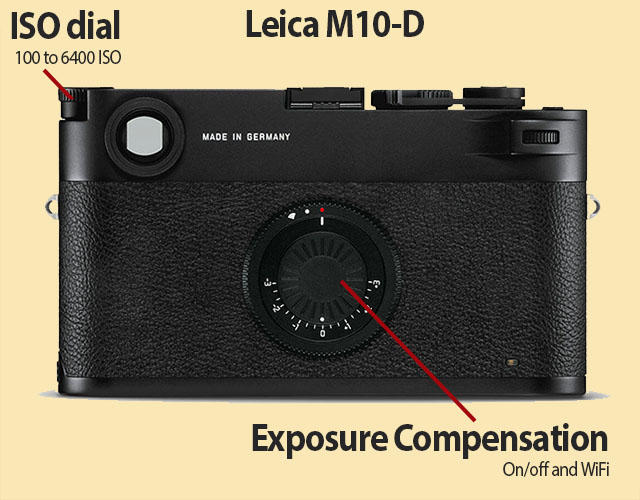

The ISO dial on the Leica M10 (2017) is a nod to the Leica M3 (1954) rewind knob, a classic feature on a Leica that also still exists on the film rangefinders Leica MP and Leica M-A that are still in production.

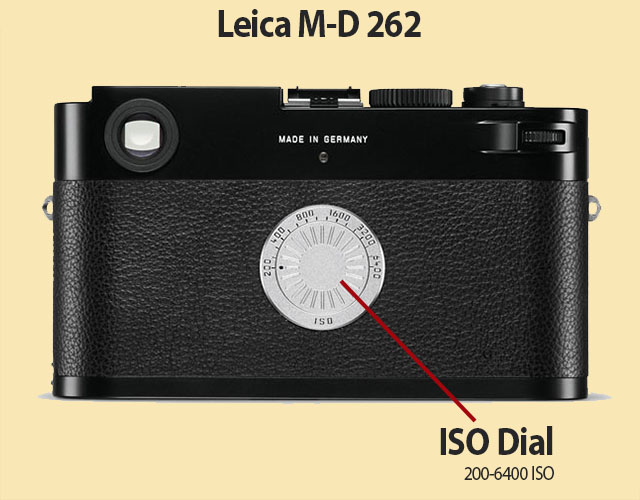

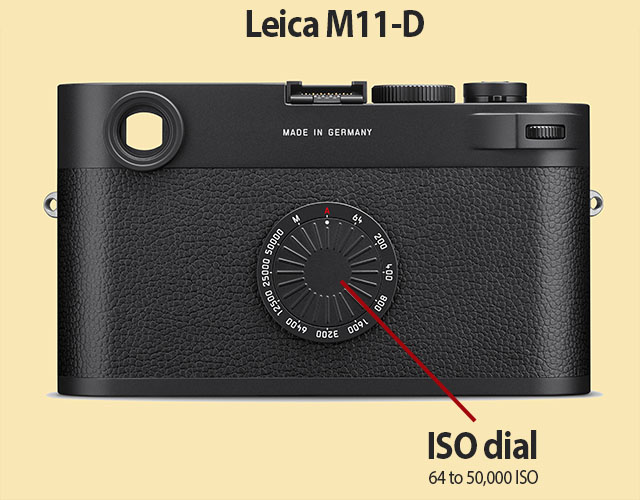

On the Leica M11-D (2024), the ISO dial has moved back to the back of the screen-less camera, a nod to the series of Leica film camera models.

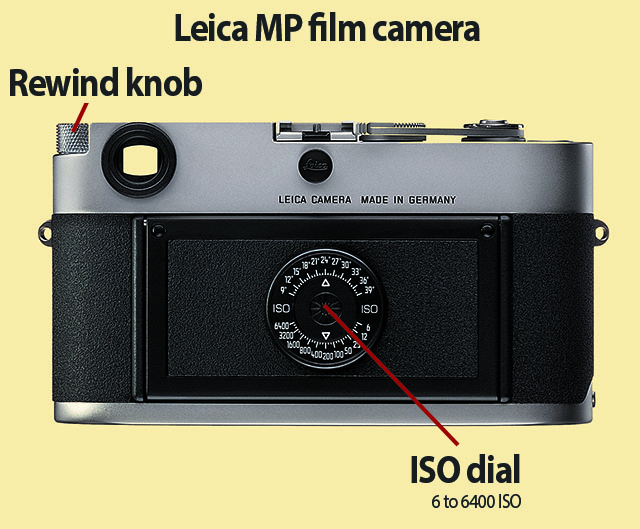

The Leica MP film camera (2002) has the rewind knob top left, and the ISO dial on the back of the camera.
In any case, the owner of Leica said, “I want a digital Leica to have a screen,” and so the first Leica M digital rangefinder camera, the Leica M8 (2006), did, in fact, have a screen on the back. And a 10MP sensor inside. But apart from that, it did look and feel like a film camera. And as time has told us, it still sells for 50% of the new price twenty years later, which indicates that a Leica is in many ways “for life” and not a blink on the time track like many other electronic gadgets tend to be. Even the then-so-world-popular iMac (2006) is not even remotely in use anywhere anymore. But the Leica M8 is.
When the Leica M9 (2009) was released as the first "real" Leica M (because it was the first with a full-frame sensor), the sale of digital Leica M cameras took off, and for a long time, it was impossible for Leica to produce enough cameras to even slightly meet demand.
If you read internet forums back in 2004 when Leica had run the “I am a film dinosaur” campaign, you would see that quite many agreed heartily that “Film is where it’s at” and similar statements. There was a great belief that digital was just a momentary thing and the world would soon come back to its senses – meaning film.
It should be no surprise that Dr. Kaufmann met photographers around the world that would tap him on the shoulder and whisper in his ear their own vision of a Leica M without a screen – and of course, and more often suggested, the vision of a Leica M that took only black and white photos.
Both suggestions, however ridiculous they may have sounded to some, became reality, thanks to Dr. Kaufmann. The first Leica M Monochrom was released in 2012 at a big event in Berlin, a camera based on the Leica M9 with the Bayer color filter removed and only able to take black and white photos. And in a way that makes sense for a Leica fan, with the lack of ability to capture colors, this particular model was priced $1,000 higher than the Leica M9 that could also capture colors. (This is, of course, fun, though not a joke. The expectation of limited demand for this particular camera, yet the requirement to start production of a special sensor, does make it more expensive to produce. At least that is what we who bought a Leica M Monochrom choose to believe).
The new 2024-edition with 50% more pages and illustrations.
i"I have just been reading your eBook last night, which opened my eyes for more than
I have been thinking about before. You have a great sensitivity that I feel
connected with, and I enjoyed every word."
"I am reading your book, Finding the Magic of Light. Exactly what I crave."
"I find your books very helpful and thought-provoking."
"A must have. Personally useful for street photography."
In this easy to read and apply eBook, Thorsten Overgaard takes you on a journey to see, understand and simply use light.
"One of the most important ways to get an aesthetic and pleasant picture is to find the good light."
"Finding the Magic of Light"
New edition (April 2024)
eBook for computer and iPad. (129 pages) Only $78.00
Order now - Instant delivery.
★
★
★
★
★
★
Here it comes …
Then finally, in October 2014, Leica released the Leica M60 as the first Leica digital rangefinder without a screen. A sort of out-of-reach model for many as it was a limited run of 600 made in stainless steel together with Audi Design celebrating the 100th year of Leica Photography and the 60th year of Leica M models (hence the model name M60).
Leica M60 (2014) was a limited edition of 600 cameras made, in stainless steel, and designed with Audi Design.
Nevertheless, this was a digital Leica without a screen, at that time considered as maybe so far out in the woods that it was best to only make it as a limited run for collectors. It was sold as a set with a stainless steel 35mm Summilux-M f/1.4 FLE lens for the asking price of $18,500.00.
In retrospect, now that later models have achieved a pleasant sound of their shutters, the Leica M60 stainless steel body accentuates the sound of the Leica M240 shutter to a slightly unpleasant metallic clonk. Also notable, the Audi Design team did not find it necessary to have strap lugs on the Leica M60. You cannot really have it in a strap over the shoulder, and not even hold it in a hand strap. Instead, the Audi Design team came up with a camera case that sits across the chest with a pocket for the camera on the front. Quite innovative, but not thoroughly thought through for use in hot climates, in my opinion.
Never mind, it was a fun statement, and a play with the design that also allowed for the revolutionary and “fun idea” of having no screen.
October 2014: The first model of a digital Leica M without a screen, the limited Leica M60 anniversary model designed with Audi Design.
Finally, a real classic Leica without a screen
In April 2016, Leica Camera AG (finally) released the first digital Leica M-D 262 without a screen on the back, based on the Leica M240 (2012) model as far as the internal electronics go (24 MP CMOS sensor), and the black-painted body made of brass shaped like that of the Leica M9 (2009).
This edition was not meant to be limited, and it looked like a traditional Leica in black paint, with a matte aluminum metal film/ISO dial on the back. In the process, seven buttons and a mini joystick on the back was all deleted. A physical statement that you don't need all those buttons to take a photo.

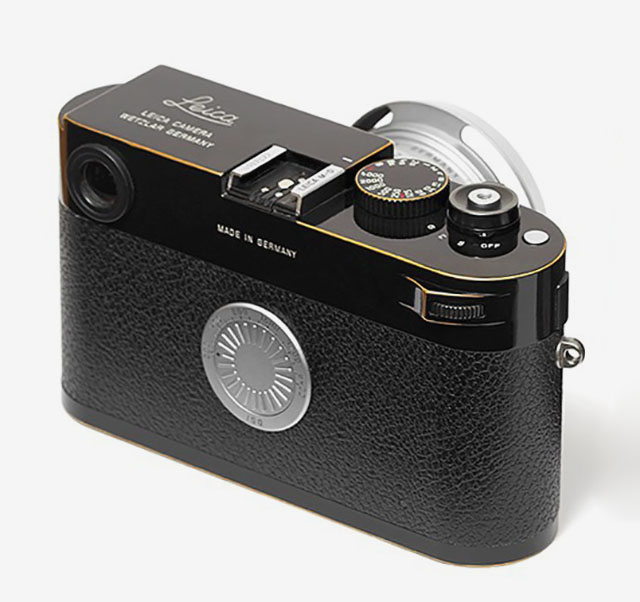

Leica M-D 262: A digital Leica without a screen, or a film Leica with a digital sensor – whichever idea you prefer
The digital Leica M-D 262 without a screen is a camera that caters to such a small segment that it is only relevant because they are die-hard enthusiasts. You would think, but the truth is that nobody really can tell what makes someone buy this camera. In some ways, the less it make sense, the more irresistible it becomes.
The number of people who have suggested to just cover the screen of a normal digital rangefinder is numerous. But then you don’t really get the point: This camera doesn’t have a screen.
April 2016: The first “real” digital Leica M without a screen, the Leica M-D 262 model. Fundamentally the Leica M240 (2014) without a screen. In the process, it also lacks the seven buttons and mini joystick on the back. Model no. 10945.This model is black paint on brass.
Video review of the Leica M-D 262 by Thorsten Overgaard:
The second generation without a screen: The Leica M10-D
Based on perhaps the most well-functioning Leica digital rangefinder, the Leica M10, was born another model without a screen: the Leica M10-D (October 2018).

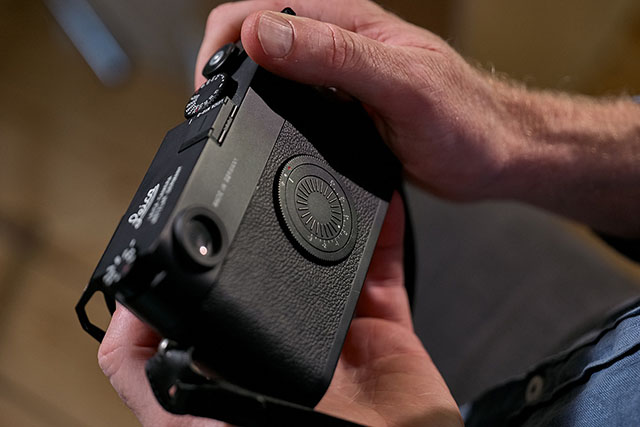

October 2018: Leica M10-D digital rangefinder without a screen, based on the Leica M10-P (the one with silent shutter).
Leica M10-D film feel with damped shutter
The Leica M10-D has a lot going for it because it is based on the Leica M10-P, which is the 24MP digital rangefinder with an almost silent shutter. Again, a classic Leica rangefinder from the good ol’ days when a film Leica M had a cloth shutter, which has a distinct soft sound with a metallic background sound of wheels turning. A modern digital rangefinder has a metal shutter curtain, often the same as the ones you find in high-end Nikon cameras, and the sound is decisive metallic.
Shoot and advance to your next digital picture
Another odd request throughout the years of digital rangefinders has been to get the film advance arm back on the camera. On a film camera, you advance the film after each photo, and it gets to become a sort of a part of you to take a photo and make the motion with your thumb to advance the film. A very satisfying sensation and movement, and thus understandable that some would get suggestions that an arm could produce energy to charge the camera (and thus remove the battery as well). Any excuse to get this arm back. But for no real reason.
And what do you know, Leica decided to add it for no particular reason other than that it would be fun and cool. A way to make believe it is a film camera, or as a thumb's rest as it always was a good place to rest your thumb and stabilize the camera.

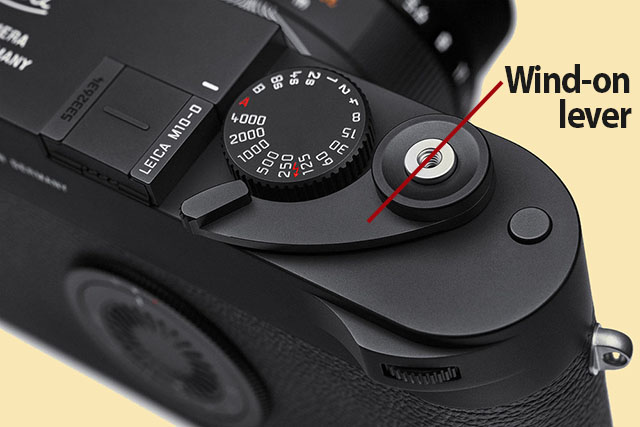

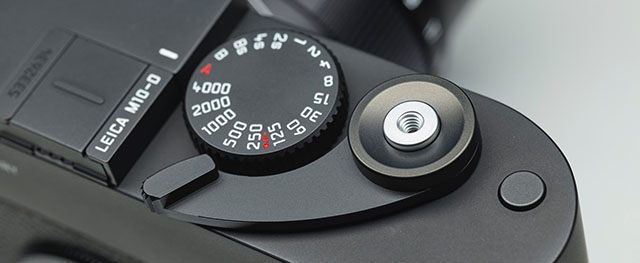

Presented as a “fold-out thumb rest” on the Leica M10-D, the film advance arm was back. Finally.
Then, the re-release of the mother of Leica M cameras without a screen: The Leica M6 film camera
Surprisingly, in 2022, Leica presented the Leica M6 – again. One of the legendary film camera models and a workhorse for many professional photographers over the years, the Leica M6, which was in production from 1984 to 2003, suddenly came back on the shelves as a brand-new camera. Nobody will ever have to live without a Leica M6.
A camera without a screen, and without a sensor too. Back to film and the ultimate minimalist feel.

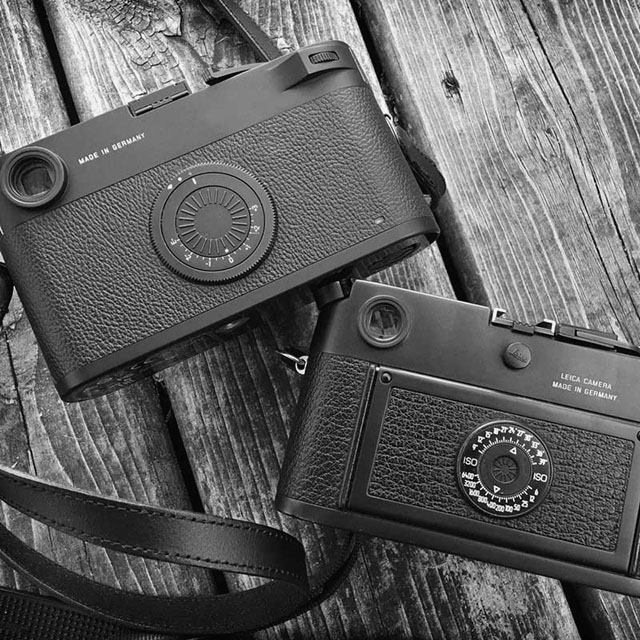

Leica M10-D and Leica M6 compared, from the website of Cradoc Bagshaw.
The joy of photographing digital without a screen
Speaking of Leica, the joy often is not to give a heck and just go take photographs. You and your camera and nothing else. Hence, the less, the better. Getting a Leica M already means that 80% of the usual dials, buttons, and Fn buttons (programmable Function buttons) have vanished.
Then remove the colors, and then remove the screen, now there is less to deal with for the eyes, the fingers, and the mind. All your strength can be focused on the here and now and what is in front of the camera.
It also has the moment of Christmas that you don’t know what is stored on the camera’s memory card. You will have to wait until you get to the computer and download. You can cheat with an EVF as all the screenless Leica cameras can take an EVF, or you can connect the camera to the Leica Fotos App for both preview before and viewing the photo you just took. But that is cheating and fundamentally goes against the whole idea. If you wanted to do that, you would have gotten a camera with a screen in the first place.
The advantage of digital photography versus film photography is the speed with which you can take photos, finalize them, and have them go somewhere. Anyone who says they prefer to wait for the film to be developed is either glorifying film, or they sniffed too much darkroom chemicals. There is no joy in waiting for film to be developed, only dust spots and small hair to be removed, expenses to labs, lost rolls, and the fact that the possibilities of editing the look are strongly limited.
What film does do is that it enables you to ponder philosophically about your photography. I tried this with the return of the Leica M6 in 2022. I dug out my Leicaflex SL (1964) film camera, and armed with that, a brand-new Leica M6, and a Leica M11 (2022) I roamed the streets of New York for some days, shooting many photos both digital and film. Then I walked down to Picturehouse and dropped off the film rolls. When I had it all digitized on my computer, I could compare, and I was able to find ways to emulate the look of film on my digital files. In the end, I couldn’t tell if a photo was digital or film. It looked exactly the same.
But the experience renewed my photography in some ways, and then it also revitalized the reason I stopped shooting slide film in 2006 and went all digital with the Leica R9 with a digital back, and the Leica M9. It’s just too damn slow and too many unnecessary barriers to shoot film. Beautiful, impressive, and all that. But with digital, you don’t have to travel with rolls of film: You can load the image onto the computer, select, edit, and deliver the same day. Job done.
So much for film. But what the Leica M6 film camera has is no prevision, and deliberate thoughtfulness and slowness.
A lot of these qualities are transferred to the Leica M-D 262 and the Leica M10-D because you cannot prevision the photo, and you cannot review it. You have to trust your skills and that what you planned to, decided to do, and the way you executed it, will, in fact, result in something that sometimes is stellar. And it is.
That is the biggest validation and excitement of the Leica without the screen: That you realize that it is not difficult to photograph. It is, in fact, very easy to walk around with a camera, see a photo opportunity, take the photo, and the final photo will match. It is not underexposed, it is not out of focus, the frame is not wrong, you didn’t press the shutter at the wrong time.
You can photograph. It doesn’t take a wheelchair, Artificial Intelligence, high-resolution screen, ultra-fast camera responses, or anything to aid you in doing this. Just you and a camera.
All this aligns perfectly with the Leica M feature that you prevision a photo and use the manual rangefinder focusing mechanism to measure the correct distance, and what you see in the viewfinder is just an idea of what you are making.
It’s all in your head with a Leica M, and with the Leica M digital rangefinder without a screen, it confirms that you are the one making the photographs, and not the camera. The less camera, the more photography. That is the lesson. That is the beauty and the fun of a Leica M without a screen.
The difficulty of a digital Leica without a screen
The most difficult part of a digital rangefinder camera without a screen is currently to get your hands on one. So limited, and so sought-after are the Leica digital rangefinders that acquiring a Leica M-D 262 or M10-D is hard work. Once you find one, which is the hardest part, the Leica M10-D is in the range of $7,000.00 (new price was $7,995) and the Leica M-D 262 is in the range of $5,000.00 (new price was $5,995). Leica M11-D is the same, in short supply after the relase, and thereafter a so narrow user-group that fw will be available second-hand.
Compared to this, the Leica M60 is almost a deal. Released as a limited edition set of camera and a 35/1.4 lens, both in stainless steel, the price was $18,500.00. They now sell for $12,500.00. But then again, this is the model without strap lug. Beautiful in the eyes of some, less functional in the world of others. But fundamentally easier to find than the Leica M10-D and Leica M-D 262.
But thankfully, you and I don’t need this camera without a screen.
You actually don’t, but the idea that you are not there is what contributes to you not being there. When people notice your camera, it is beacuse you try so hard not to be noticed.
A camera without a screen does allow you to work in ways a camera with a screen doesn’t. This is how a camera without a screen works. You become harmless and invisible. The type of photographer nobody notices and nobody cares about. You live in a parallel reality where it is believable even for yourself that you are not taking photos. In a way, you aren’t, because there aren’t any photos anywhere. Not till you come home and empty the memory card.
Taking portraits with the Leica M-D 262 or Leica M10-D, it doesn’t count as a camera moment. It’s so convincing that this really is not happening and there really is no camera present that even you as the photographer feel convinced you are just having a conversation with the subject.
You have always known that when you put a camera in a person’s face, it changes their attitude. Here is a camera that fundamentally doesn’t count, and that might change the photo session.
We and ourselves who use a camera without a screen
With the Leica digital rangefinder without a screen comes the pluralis majestatis where we talk about ourselves in the plural and speak as a representative of the united but exclusive nation of minimalists.
The world have been awaiting … nah, scratch that. Let’s instead Let's insteead go with this: A minority of enthusiasts have eagerly been awaiting the Leica M11-D model … and now it finally is here (with some months of technical delay), September 12, 2024.

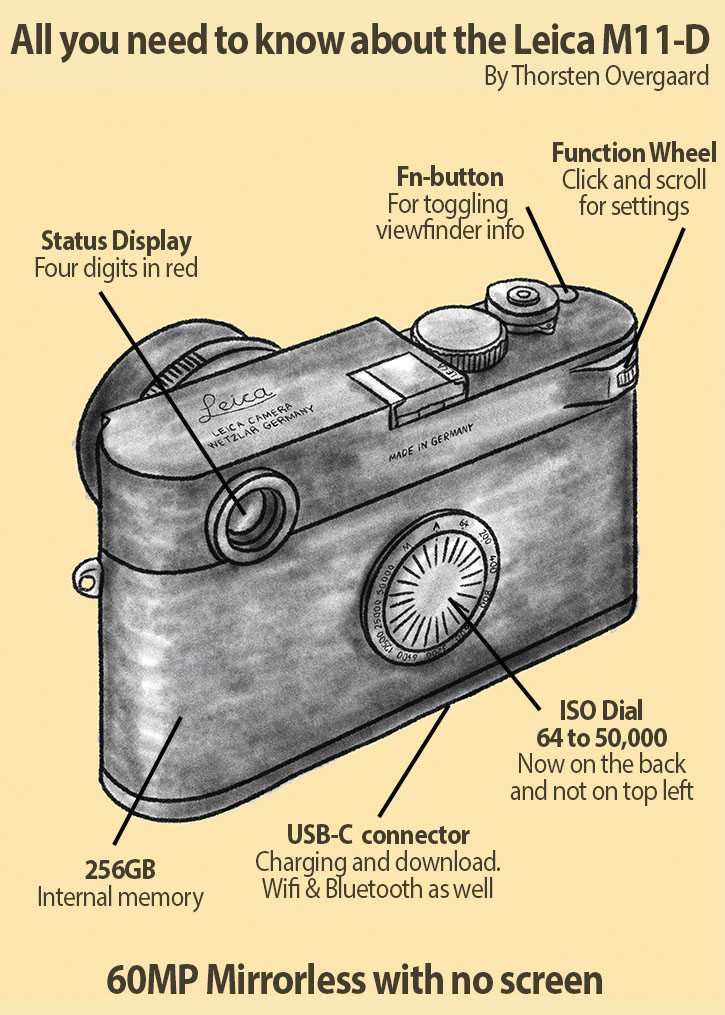

The Leica M11-D review: A camera for the daring purist
The short story is that the Leica M11-D is the same as the Leica M11-P, but without a screen. Or, it is similar to the Leica M10-D, but without the film advance lever (which was added for decoration) and without the "a-Leica-always-has-a" bottom plate.
As some of us can imagine, but most of the world's population can't fathom - what's the difference? What is the big deal?
But the struggle is real: These minute details offer hours of consideration and lengthy discussions online, and in the end, only the brave, daring purist will understand how to love this camera forever. Others may buy it and find themselves in recurring doubt whether this is the best deal ever or a wrong purchase. The D models can't do anything the traditional models with screens can't do - except for making you happy if this is the one and only camera you need for what you want to do.
The Leica D model is for the purist, and as such, the fact that it has a faster Bluetooth connection, more megapixels, and even the possibility to remotely control and view photos via smartphone—or use an EVF2 Electronic Viewfinder inserted in the camera's hot shoe to preview photos - is of little or no interest.
Even if it holds its resale value (it does), it is of no interest, because this one is for life.
Most of the Leica D models in use are covered in black tape and generally treated as if they were film cameras. The core users may have read the instruction manuals but have successfully unwritten from their memorybank that Bluetooth and the electronic viewfinder exist. It's in the Leica M11-D because somebody else wanted it, but the purist prefers simplicity.
While the Leica M60 and Leica M-D 262 had only Auto White Balance, with the Leica M10-D and the Leica M11-D, you can use the connection to a smartphone with the Leica Photos App to change it to, for example, Daylight (5400 Kelvin) or Tungsten (3200 Kelvin). If you want accurate colors on the Leica M11 models, take a photo of a WhiBal card in the field for reference and adjust the colors in editing by pointing the White Balance picker to the WhiBal card in your photo.
It's all about the paint
What does matter is that the Leica M10-D and Leica M-D 262 models had black paint bodies, with solid brass underneath. It's 'how it is done.' However, the aluminum top and bottom of the Leica M11-D take 100g off the weight, and that's nice too.
While the Leica M11-D is the simplest camera in existence, making a decision about it won't be easy. It's about the feeling, the sound, the paint, the feel of the leather covering, and the illusions you feel you can create with this friend in the field.
That said, it is unique...
Add to that the Leica M11-P that has a screen, or the Leica M11 Monochrom that doesn't take color photos (but have a screen).
There can be only one
For most of us, the challenge is that we primarily use traditional cameras - those with screens and which do color photography. In that context, the Leica M11-D becomes the extra camera and, as such, doesn't contribute the simplicity the camera is all about. I wouldn't let that discourage anyone... There is a lot to learn about photography and yourself from using a Leica M11-D without a screen. One thing I have found is that, despite the uncertainty of not being able to see what you are doing, it actually works out really well. As such, it gives you back the confidence that you can make photographs with relatively few gadgets and tools.
Here is an overview of the different Leica D models, the Leica M cameras without a screen.
Model
Leica M60
Leica M-D262
Leica M10-D
Leica M11-D
Start
12/2014
05/2016
10/2018
09/2024
Screen
No
No
No
No
Advance lever
No
No
Yes
No
Material
Stainless Steel top/bottomp
Magnesium body
Black Painted
Brass top/bottom
Magnesium body
Black Painted
Brass top/bottom
Magnesium body
Black Finish
Aluminium top/bottom
Magnesium body
ISO dial
On back
On back
On top
On back
Exposure
compensation
No
Thumb Wheel
Rear Dial
Thumb Wheel
Strap lugs
No
Yes
Yes
Yes
MP
24
24
24
60/36/18
Sensor
CMOS
CMOS
CMOS
BSI CMOS
Format
24x36
24x36
24x36
24x36
AA filter
No
No
No
No
White Balance
Auto White Balance
Auto White Balance
Presets and Kelvin via Leica Photos App
Presets and Kelvin via Leica Photos App
Video
No
No
No
No
Shutter speed
Mechanical
1/4,000
Mechanical
1/4,000
Mechanical
1/4,000
Mechanical 1/4,000 Electronic 1/16,000
Light metering
Off shutter
Off shutter
Off shutter/
Live View
By sensor
(open shutter)
Content Credentials
No
No
No
Yes
Lens adapters
Leica screw mount
Leica screw mount
Leica screw mount
Leica screw mount
Shutterless
No
No
No
No
Mirrorless
Yes
Yes
Yes
Yes
Live View in EVF or smartphone
No
No
Yes
Yes
WiFi
No
No
Yes
Yes
Bluetooth
No
No
No
Yes
Framelines
LED
Red
LED
White
LED
White
LED
White
Base ISO
200
200
100
64
Max ISO
6400
6400
50,000
50,000
Internal memory
No
No
No
256GB
Buffer
1GB
1GB
2GB
3GB
USB 2 port
No
No
Extra
No
USB-C port
No
No
No
Yes
Weight
680g
680g
647g
540g
Frame selector
No
Yes
Yes
Yes
Viewfinder
0.68X
0.68X
0.73X
0.73X
Can an EVF be attached?
No
No
2.4 MP Visoflex 0020
3.7 MP Visoflex 2
Limited Edition
600 pcs
No
No
No
Price $US new
$18,500 with lens
$5,995
$7,995
$9,395
The meaning of D..?
There is no official explanation for the D in D-models. There was the Leica MD (1964) that was a Leica M without the rangefinder, a “blind” camera for use with the external Visioflex mirror-viewfinder (which is a way to add a mirror-prism to a Leica M camera).
The Leica M11 Know-All eBook, Video Masterclass and Presests
By Thorsten von Overgaard
Full Leica M11 Pack
15 video classes with work book
+ 455 page eBook,
+ Styles for Capture One for Leica M11
and Leica M11 Monochrom
+ Lightroom Presets. for Leica M11
and Leica M11 Monochrom
Normal price $897.00
Normal price $897.00
Save 45%
Only $487.00
USE CODE: "ILOVEM11"
PREORDER. Be the first to get this.
100% satisfaction or money back. Leica M11, Leica M11-P
and Leica M11 Monochrom
Item #2150-0222
Leica M11 Know-All-eBook
455 pages illustrated for Computer,
Kindle,
iPad or smartphone.
Only $298.00
PREORDER. Be the first to get this.
100% satisfaction or money back.
Item #2151-0222
To be continued ...
As always, feel free to mail me questions, suggestions and ideas to thorsten@overgaard.dk
1:2/50 the description says.
But what does it mean?
1: = Basically means 1 divided with. On the lens to the right, it means that the diameter of the hole throught he lens is 25mm.
We would normall call it
a 50mm f/2.0 lens. The writing of 1:2/50 is a tradition from the 1800's of specifying a lens, which reveals quite a bit about the construction: Focal length 50mm simply means that the distance from center of focus inside the lens to the focusing plane (the sensor or film) is 50mm, and the aperture of f/2 or 1:2 means that the diameter of the hole the light comes throught is 25mm (50mm divided with 2 = 25mm).
In traditional lens design, one could usually tell from looking at the length of a lens if it was a 400mm, 100mm or 35mm. Newer designs with mirrors (in tele lenses) and more corrections (in wide lenses) can make the size of the lenses shorter or longer, but the distance from center of focus to sensor in a modern 50mm lens will still be 50mm for a 50mm and 400mm for a 400mm, and so on.
See Focal length and Aperture further down for more.
35mm
a) 35mm lens is a lens that has a viewing angle of view is 63°vertically, 54° horizontally and 38° vertically within a 35mm film frame or "full-frame" 24x36mm digital format. See Focal length further down.
b) 35mm focal length: the distance from center of focus inside the lens to the focusing plane (the sensor or film) is 35mm.
35mm film format (also known as full-frame)
c) 35mm film format (also known as full-frame in digital sensors) was a standard film format that came about in 1892 where the width of the film roll was 35mm, and it's been the most used format ever since. Only a format of 24 x 36mm is used for the photo on the film roll.
35mm film format was first used in 1892 by William Dickson and Thomas Edison for moving pictures with frames of 24 x 18mm, using film supplied by George Eastman (Kodak), and this became the international standard for motion picture negative film in 1909. Later other motion picture formats came about, such as Academy Ratio (22 x 16 mm), Widescreen (21.95 x 18.6 mm), Super 35 (24.89 x 18.66 mm) and Techiscope (22 x 9.47 mm).
The inventor of the Leica camera, Oskar Barnack, built his prototype Ur-Leica in 1913 as a device to test film stock and\ motion picture lenses and had it patented. Putting 35mm film format into a small camera gave him the idea "small negative, large print" and he decided to increase the size of each frame on the 35mm film to 24x36mm (for more detail and sharpness), and then invented an enlarger to make large prints from the small negative. The length of a film, 36 pictures, is said to have become the standard because that was how far Oskar Barnack could stretch his arms (when cutting film from larger rolls to put them into film rolls for the Leica camera).
d) 35mm equivalent is often given as a standard when talking about lenses in small compact-cameras or large format cameras with other sensor/film format than the 24 x 36mm frame. Example: A camera with a 12 x 18 mm sensor has a 14mm lens on it, and even the lens is actually a 14mm, it is specified as a 28mm lens because the viewing angle that ends up on the sensor is equivalent to a 28mm lens on a 35mm of full-frame camera.
The Leica 50mm APO-Summicron-M
ASPH f/2.0 lens
50mm
a) 50mm lens is a lens that has a viewing angle of view is 47° vertically, 40° horizontally and 27° vertically within a 35mm film frame.
b) 50mm means there is 50mm from the center of focus inside the lens to the focal plane (sensor or film).
c) 50mm lens is often compared to the human eye. Not because of viewing angle (how wide it sees) but because of size ratio (how it sees). The 50mm lens is the lens that comes closest to the size that the human eye see things. Whereas the human eye has a much wider angle of view [120-200°] than the 50mm lens [47°].
AEL = Auto Exposure Lock. This is a function that can be used when you want to reframe the scene, but keep the current exposure from changing.
AF = Auto Focus. The idea is that the camera does the focusing itself (the word auto comes from Greek "self").
AOV - angle of view = Is the angle a lens 'see'. A 35mm lens has a 54° angle of view horizontally. Each human eye individually has anywhere from a 120-200° angle of viewn ags.
Aperture = The same function as the iris and pupil has in the eye. The pupil in the eye is the dark circular opening in the center of the iris of the eye, varying in size to regulate the amount of light reaching the retina (the sensor area inside the eye).
Aperture on a camera is the f/ stop on the camera that regulates how much light passes through the lens by increasing or decreasing the hole through the lens. On a f/2.0 lens the lens is fully open" at f/2.0. At f/2.8 the aperture inside the lens make the hole through the lens smaller so only half the amount of light at f/2.0 passes through. For each f/-stop (4.0 - 5.6 - 8.0 - 11 - 16) you halve the light. The aperture of the lens is basically the focal length divided with the f/-stop = size of the hole (50mm divided with f/2.0 = the hole is 25 mm in diameter).
Besides regulating the amount of light (so as to match the correct exposure), the aperture also affects the dept of field: , which is how deep the sharpness is. To get the sough-after photos with narrow depth of field where the background is blurry, the lens has to be wide open at f/2.0 or so. Stopping the lens down to f/8 or f/16 will result on more depth of field, meaning the background will start becoming in focus. To maintain narrow depth of field, one can use the ISO sensitivity and/or the shutter speed to match the correct exposure (as aperture is only one of three ways to control the exposure; the correct amount of light). ORIGIN: Late Middle English : from Latin apertura, from apert- ‘opened,’ from aperire ‘to open’.
Aperture Priority Mode = When the shutter speed dial on top of a Leica M camera is set to A, it is short for “Aperture Priority” and allows the user to set a specific aperture value (f-number) while the camera selects a shutter speed to match it that will result in proper exposure based on the lighting conditions as measured by the camera's light meter. In other words, you set the aperture as priority (f/1.4 for example), and the camera calculates a shutter speed (1/250 of a second) that matches that. If you change the aperture to f/2.0 by changing the aperture ring on the lens, the camera will re-calculate the speed to 1/125 so as to get the same amount of light to hit the sensor (f/2.0 is half the light through the lens as f/1.4 and 1/125 if twice the amount of light on the sensor as 1/250).
APO corrected basically means that the red, green and blue has been corrected to meet more precisely in the same spot. Clarity of colors and definition of details would be the result.
APO = in lens terminology stands for "apochromatically corrected". In most lenses, optical design concentrates the focus of blue light and green light into a single plane, but red light falls slightly into another plane of focus. In APO lenses, the design and expense has been put in to making red light focus on the same plane as blue and green. Under a microscope you would see that all light subject is now in focus, creating a sharper image overall. Many manufacturers offer APO designs, but in most of these only the very center of the lens is APO corrected. Leica prides itself on making most of the frame APO corrected.
APo-correction has traditionally been used for long tele lenses (and periscopes), but in recent years APO-correction has been applied to 50mm and wide angle lenses as well. One will notice that the colors are really bright and alive, almost more real than to the eye, in lenses like the Leica 90mm APO-Summicron-M ASPH f/2.0 and 50mm APO-Summicron-M ASPH f/2.0.
Apochromat; ORIGIN early 20th century, made of the two words; apo (Greek origin, away from) and chromatic (Latin origin, meaing relating to color).
spherical (ball)
a-spherical (non-ball)
ASPH = (Aspherical lens) stands for "aspheric design".
Most lenses have a spherical design - that is, the radius
of curvature is constant. These are easy to manufacture by
grinding while "spinning" the glass. This design
however restricts the number of optical corrections that can
be made to the design to render the most realistic image possible.
ASPH lenses (a-spherical, meaning non-spherical), however, involve usually 1 element that does
*not* have a constant radius of curvature. These elements
can be made by 1) expensive manual grinding, 2) molded plastic,
or 3) Leica's patented "press" process, where the element
is pressed into an aspherical ("non-spherical")
shape. This design allows Leica to introduce corrections
into compact lens designs that weren't possible before. Practically,
the lens performs "better" (up to interpretation)
due to increased correction of the image, in a package not
significantly bigger than the spherical version.
There is another Aspherical lens manufacture technique: an uneven coating layer is applied to a spherical lens. The coating is thicker on the edges (or on the center, depending). Canon "Lens Work II" calls these "simulated" aspherical lenses. Simulated and Glass-Molded (GMo) asphericals show up in non-L Canon lenses, while the L lenses have actual ground aspheric elements.
A- means non, or without.From Latin, ex. Sphere: ORIGIN Middle English : from Old French espere, from late Latin sphera, earlier sphaera, from Greek sphaira "ball".
Normal spheric lens (grinded)
ASPH (note the shape of the glass as result of pressing rather than grinding)
Auto- means “self”. The idea is that when a camera has auto-(something), it does that (something) by itself.
Banding = Noise in digital images. Horizontal lines in a horizontal picture (if the camera is in portrait mode/vertical, the lines will obviously be vertical). It's simply noise; the result of uncontrolled algorithms working overtime with an image the sensor really can't see because it's very dark. (If your image has vertical lines in it, it is more likely that the sensor needs remapping).
This image at 6400 ISO, underexposed and then brought up to correct exposure in Lightroom, displays banding: Horizontal lines in the image. Leica M-D 262 with Leica 50mm APO-Summicron-M ASPH f/2.0.
Base ISO = The ISO the digital sensor was born with. Even a digital sensor goes from say 50 ISO to 25,000 ISO, it only has one base ISO. Any other setting is an algorithm that figures out how the image whould look if there was 64 times more light, or half the light, etc.
When you go down from Base ISO (for example 200 to 100 ISO), you can expect a
decrease in quality. When you go up, the decrease is much less. For some sensors, you loose 2-3 stops by going down 1 step in ISO, but can go 8 steps up and only loose 1 stop in dynamic range. Basically, your ISO range should be from Base ISO and as far up as you can, before you see visible decrease in quality (mostly 3200 ISO - 6400 ISO).
Base ISO for Leica M9 is 160 ISO, for Leica M240 it is 200 ISO. For Leica M10 it is around 160 ISO.. For Leica M11 it is 64 ISO. For Leica M Monochrom it is 320 ISO. For Leica Q and Leica Q2 it is around 100 ISO. For Panasonic Lumix S it is 200 ISO. For most Canon cameras the base ISO is around 100, for most Nikon cameras it is around 200 ISO.
Max Berek (1886-1949) was lens designer who joined Ernst Leitz Optische Werke in 1912 and became the head of the microscope development where he also designed the first lenses for the company's new adventure into photography, the Leica introduced in 1925. In particular, he calculated the Elmax 50mm f/3.5 lens for the so-called Ur-Leica.
Bizofurex = A Leica Visoflex electronic viewfinder name for the new electronic viewfinder thatr was planned to be made for the Leica M10 introduction in 2017. Dues to too high expenses molding a new viewfinder, Leica decided to stay with the Leica visoflex EVF 020 that was originally med for the Leica T.
Bokeh = The visual quality of the out-of-focus areas of a photographic image, especially as rendered by a particular lens: It's a matter of taste and usually photographers discuss a 'nice' or 'pleasant' bokeh (the out-of-focus area is always unsharp, which is why the quality discussed is if one likes the way it renders or not by a particular lens). The closer you get to something, the 'more' bokeh' you get (in that the focus becomes less for the background and foreground at close distances than at long distances). ORIGIN from Japanese 'bo-ke' which mean 'fuzzines' or 'blur.'.
BSI = Backlit sensor = Back-Illuminated Sensor (also known as BI = Backside Illumination) sensor that uses a novel arrangement of the imaging elements to increase the amount of light captured and thereby improve low-light performance. These sensor types were first used for low-light security cameras and astronomy sensors, and then was brought into wider use, in the A7 II (2015), Nikon 850D (2017), Leica SL2-S (2021) and Leica M11 (2022), to increase the cameras performance in low light (high ISO).
Camera comes from Chambre, mostly in relation to Spanish soldiers’ rooms. Obscura means 'dark', so a dark room is basically the derivation for the word camera.
Camera -is today’s short name for Camera Obscura (meaning “a dark room”). CamerameansChambre and was used only as a Latin or alien word, actually only for Spanish soldiers’ rooms, until popularized in connection with photography in 1727: “Camera Obscura”. In 1793 the slang term “camera” was used by Sterne Tr. Shandy: “Will make drawings of you in the camera” and by Foster (1878), “The eye is a camera”. Camera Obscura was described by Iraqi scientist Ibn-al-Haytham in his book, “Book of Optics” (1021) and by Leonardo da Vinci in 1500; popularized and made widely known in 1589 by Baptista Porta when he mentioned the principle in his book “Natural Magic”. Johannes Kepler mentions Camera Obscura in 1604.
Camera = chambre (room), Obscura = dark (or cover).
Why is it called a "camera"..?
The word Camera is today's short name for Camera Obscura (which originally means “a dark room”).
Origin of the word Obscura means "dark" or "covered", and the word Camera meansChambre and was used originally only as a Latin or alien word, actually only for Spanish soldiers' rooms, until popularized in connection with photography in 1727: “Camera Obscura”.
In 1793 the slang term “camera” was used by Sterne Tr. Shandy: “Will make drawings of you in the camera” and by Foster (1878), “The eye is a camera”.
Ibn-al-Haytham mentioned Camera Obscura in his "Book of Optics" in 1021.
The concept of Camera Obscura was described by Iraqi scientist Ibn-al-Haytham in his book, “Book of Optics” (1021) and by Leonardo da Vinci in 1500; popularized and made widely known in 1589 by Baptista Porta when he mentioned the principle in his book “Natural Magic”. Johannes Kepler mentions Camera Obscura in 1604.
Camera = chambre (room), Obscura = dark (or cover).
CCD sensor (as used in Leica M8, M9, Leica S)= (Charged Coupling Devices) - The first digital cameras used CCD to turn images from analog light signals into digital pixels. They're made through a special manufacturing process that allows the conversion to take place in the chip without distortion. This creates high quality sensors that produce excellent images. But, because they require special manufacturing, they are more expensive than their newer CMOS counter parts.
CLA
An acronym for "(C)lean, (L)ubricate & (A)djust", whereby the item is merely re-lubricated, fine-adjusted and calibrated rather than repaired. "I just got my equipment back from CLA at Leica"
CMOS sensor (as used in Leica CL, Leica T/TL/TL2, Leica M10, Leica M 240, Leica M11, Leica M Monochrom Typ 246, Leica S Typ 007, Leica SL, Leica Q, Leica Q2, Leica M10, Leica X, Leica D-Lux, etc.) = (Complimentary Metal Oxide Semiconductor) chips use transistors at each pixel to move the charge through traditional wires. This offers flexibility because each pixel is treated individually. Traditional manufacturing processes are used to make CMOS. It's the same as creating microchips. Because they're easier to produce, CMOS sensors are cheaper than CCD sensors. CMOS allow Live View and use less energy than CCD.
Collapsible - Usually refers to a collapsible lens such as the Leica 50mm Elmarit-M f/2.8 Collapsible, or Leica 90mm Macro Elmar-M f4.0 Collapsible, etc. A collapsible lens is one that can collaps into a compact lens when not in use.
Compact Camera - A camera that is compact, usually the same as a point-and-shoot or beginners camera. See my article Leica Compact Cameras.
Contrast - The degree of difference between tones in a picture. Latin contra- ‘against’ + stare ‘stand.’
Normal to low contrast
High contrast
Depth - Distance between front and back. Distance from viewer and object. See DOF in this list.
Digilux (Digital Lux) = A series of compact digital cameras by Leica Camera AG developed with Fuji from 1998, and then with Panasonic since 2002. The first models, Leica Digilux (1998) and Leica Digilux Zoom (2000) and Leica Digilux 4.3 (2000). With Panasonic, Leica Camera AG made the Leica Digilux 1 (2002), Digilux 2 (2004) and Leica Digilux 3 (2006). See my article Leica Digital Compact Cameras for more. Lux comes from Latin and means Light.
Digital rangefinders= The Leica M camera originates from 1925 and have been existing as film camera in many models. From 2006, the first Leica M digital rangefinder was launched, Leica M8. The Leica M7 (2002) is a film camera, so the new mode was Leia M8 and the main difference was that it had a crop digital sensor. The Next Leica M9 had a full-frame 24x36mm sensor. The Leica M240 had many features supposedly requested by users, the most noticeable was live view via a CMOS sensor, electronic viewfinder and video recording. Leica M10 was a return to the original Leica simplicity, including being a smaller body resembling the film cameras, and video and other features and buttons had been removed, a simplified menu created, and most noticeable an ISO dial to set the ISO on a wheel on the top left of the camera, very similar to the similar looking dial on older Leica film cameras where this dial was a rewind function for the film. Leica M11 (2022) was simplified even further, with a new sensor design that was designed to resemble classic color photography closer (Kodachrome and Leica M9 colors), yet featuring new technology such as triple-resolution sensor (where the sensor as a fourth function is also used as light meter), digital shutter and a new design where the battery is part of the bottom plate (no battery door, and no more bottom plate).
Digital Shutter = Electronic Shutter (see in this list).
Lens distortion looks like this. The lines are not straight. Our eye uses distortion correction. Lens designers can design lenses so they have very little distortion, or they can make less complicated lens designs and "fix" the distortion in software.
Distortion = In photo optics/lenses: When straight lines in a scene don't remain straight because of optical aberration.
Lens designers can correct for distortion to a degree so the whole image field is perfect corrected and all lines remain straight. In modern lens design many designs rely on Software Distortion Correction (SDC).
The eye adjusts for distortion so we always see vertical and horizontal lines straight when we look at things. Even when you get new prescription glasses (if you use such), you will often experience distortion in your new glasses. After a few days they eyes have adjusted for the glasses and the distortion you saw to begin with is now gone. Software Distortion Correction (SDC) is far behind what the human eye can perform of adjustments. (Also see my definition on Perspective for more on the eye and optics)
DNG = Digital Negative, an open standard developed by Adobe. It is a single file that contains the raw image data from the sensor of the camera as well as date, time, GPS, focal length, settings, etc.
The alternative is a RAW file + XMP file where the RAW file contains the image information and the XMP contains the rest of information about where, how and when the picture was taken, as well as editing data when the photo is edited in Lightroom or Capture One.
A Camera Raw profile (that is specific for that camera) in the computer helps the software program, for example Adobe Lightroom, to translate the RAW data into the image. Camera producers provide a Camera profile with their camera, and Adobe makes their own 'refined' Adobe Raw camera profile for all new cameras.
A raw file (or DNG) is simply the full recording of digital data (1's and 0's) from the sensor. In the computer, the sensor data is translated into the exact colors, via a camera profile.
The lines on this 28mm lens indicates the DOF. Here the focus is on infinity, and if the lens is stopped down to f/1.6, objects from 1.8 meter to ininity will be 'acceptable sharp'.
DOF = Depth of Field (or Depth of Focus), an expression for how deep the focus is, or (more often use to express) how narrow the area of focus is. This is how much of the image, measured in depth or ditance, will be in focus or "acceptable sharp".
The appearance of the DOF is determined by:
1) aperture (the smaller the aperture hole is, the deeper is the depth of field, and opposite, the wider open a lens you se, the more narrow will the DOF be) and
2) distance to the subject (the farther away, the larger area is sharp; the closer the subject in focus is, the more narrow the DOF gets)..
The DOF scale measurement on top of the Leica lenses shows lines for each f-stop that indicates from which distance to which distance the image will be sharp. Shallow DOF is a generally used term in photography that refer to lenses with very narrow focus tolerance, like f/1.4 and f/0.95 lenses, which can be used to do selective focus; making irrelevant subjects in the foreground and background blurry so only the subjects of essence are in focus and catches the viewers eye).
in modern cameras like the Leica SL2, the camera has a DOF scale inside the viewfinder. As DOF is the same for all lens brands and designs, only depending on focal length, distance and aperture f-stop, the camera can calculate it and show a 'digital DOF scale" in the viewfinder.
Depth Of Field scale from Fujifilm, same lens with different aperture settings from f/2.0 to f/8.0.
Leitz Summicron DR (Dual Range) f/2.0 (order no SOOIC-MN).
DR = Dual Range lens. This is a type of Leitz/Leica lens that works as macro (near focus range) and normal lens, and comes with googles/"Eyes" for the macro function. The 50/2 Dual Range Summicron was made from 1956 to 1968, only in chrome, with a near-focusing range as close to 478mm.
You mount the googles/"Eyes" to focus at close range. If you use the lens in normal range, you can take off the googles/"Eyes"
The googles/"Eyes" can be critical for which camera the lens fits on. the Leica M6 TTL requires that the plastic tab onthe eyes is removed; and other Leica M models likewise. It fits on the Leica MP, M2, M3 and oterh models. .
Dynamic range. The grade of ‘contrast range’ (or number of tones) a film or sensor, or simply a photograph, possess between bright and dark tones. The human eye is said to have a dynamic range of 10-14 ‘stops’ (but because we scan area by area and compile a concept of the overall scene, they eye is often thought to have a much higher dynamic range), Film used to have 7-13 ‘stops’ and some modern sensors have up to 15-17 ‘stops’.
E - Diameter in Leica filters and screw diameter, as in E46 which means that the filter diameter is 49mm for this lens. In general language, one would see Ø46 used, as Ø is the general symbol for diameter.
Electronic Shutter = A shutter that operates silently by turning the cameras imaging sensor on and off to control exposure, rather than a traditional shutter where a foldable metal curtain keeps the sensor in the dark and goes up for a brief moment moment, like 1/125th of a second, and exposes the sensor to light. In the Leica TL2 (2017), there is a mechanical shutter curtain from 30 sec. to 1/4000 shutter times, and digital shutter from 1/4100 to 1/40,000 shutter speeds. In the Leica M11 (2022) an electronic shutter can be activated from 60 seconds to 1/16000th second while a mechanical shutter goes from 60 minutes to 1/4000th second..The word shutter simply means to close something, like with a curtain. It comes from "desist from speaking" (14th century).
Electronic ViewFinder = See EVF.
Elmar = Refers to the maximum lens aperture - here f3.5 . Historically derived from the original 1925 50mm f3.5 Elmax lens, which was an acronym of (E)rnst (L)ieca and Professor (Max) Berek, designer of the original lenses. Later that year the 50mm f3.5 Elmar superceded the Elmax, which was discontinued due to its complexity and high cost of manufacture.
Elmarit = Refers to the maximum lens aperture - here f2.8 . The name is obviously derived from the earlier (and slower) "Elmar" designation. Not every f/2.8 lens is called an "Elmarit" though, the most obvious current exception being the 50mm f2.8 Elmar-M collapsible lens which for nostalgia and marketing reasons has kept the original 1930's Elmar name (the 50mm f3.5 collapsible Elmar, manufactured 1930-59, was one of Leica's most famous and popular lenses). Vario-Elmarit (and Vario-Summicron, etc) is Leica Camera AG's name for zoom lenses.
Elmax
Elmax lens named after = Ernst Leitz + Max Berak. Ernst Leitz was the founder of Ernst Leitz Optical Industry which later became Leica. Professor Dr.Max Berak was employed at Leica in 1912 and was the architech of the first Leica lens which Ernst Leitz asked him to design for the "Barnack's camera" (the 1913-prototype named after Oscar Barnack who invented it). The lens was a f/3.5 50mm and was known as the Leitz Anstigmat and later the Elmax.
The Leitz Elmax 50mm f/3,5 (1925-1961) on the Leica A camera (1925) camera. Photo by Marco Cavina.
EVF = Electronic ViewFinder. A viewfinder where you look at a small screen through optics/prisms. The advantage is that you see what the sensor sees. Some cameras have built-in EVF (Leica CL, Leica SL, Leica Q, etc), others you can attach an EVF (Leica TL2, Leica M240, Leica M10, Leica M11).
Traditionally a viewfinder is adeviceon a camerashowingthe fieldofviewofthe lens, used in framing and focusing the picture. Some rangefinder cameras simply have optics that show an area in front of the camera with frames indicating what will be recorded on the film or sensor. SLR cameras have mirror and prisms so you see theough the lens of the camera. Electrnic viewfinders show on a small display inside the viewfinder what the sensor see.
The EVF (Electronic Viewfinder) on the Leica SL.
EXIF =Exchangeable Image File, a file generated in camera and enclosed in the image file that contains recording information on the image such as shutter speed, exposure compensation, what metering system was used, aperture setting, ISO setting, date and time the image was taken, whitebalance, which lens was used, camera model and serial number. Some images may even store GPS information so you can see where the image were taken. The data from the EXIF file continues to follow any later editions of the image and can be read in photo editing software such as Capture One and Lightroom, as well as Photoshop (go to the menu File > File Info). There is also software available that can read EXIF data from any file, like Exifdata.com.
The EXIF data is all the information about shutter speed, metering method, ISO, etc. - and then some more that you don't see on the screen (such as camera model, serial number, lens used, etc).
Exposure Bracketing = The possibility to set the camera to automatically record a series of images where the exposure is above and below what the camera measures. The idea is that at least one of the images will be correctly exposed.
f/ (f-stop, also known as aperture).
f- (focal length). Often given in mm, for example 90mm. In the past they were often given in cm or inch, for example 9.5 cm or 3.2 inch.
f/1.25 is the size of the "hole through" the lens, the aperture. f/1.25 means focal length divided with 1.25. In the Leica 75mm NoctiluxM ASPH f/1.25, the "hole through" the lens at f/1.25 is 60mm in diameter. At f/1.4 the "the hole through" is 53.5mm in diameter. At f/4 the "hole through" is 18.75mm in diameter.
Each step smaller from f/1.4 to f/2.0 to f/2.8 to f/4.0 and son on is a reduction ofthe light to half for each step. The Noctilux f/1.25 therefore lets 50% more light in through the lens than a 75/1.4 Summilux.
f-stop = the ratio of the focal length (for example 50mm) of a camera lens to the diameter of the aperture being used for a particular shot. (E.g., f/8, indicating that the focal length is eight times the diameter of the aperture hole: 50mm/8 = 6,25 mm); or the other way around, the hole is the focal length divided with 8).
ORIGIN early 20th cent.: from f (denoting the focal length) and number.
One f-stop is a doubling or halving of the light going through the lens to the film, by adjusting the aperture riing. Adjusting the f-setting from f 1.4 to f.2.0 is halving the light that goes through the lens. Most Leica lenses has half f-stops to enable the photographer to adjust the light more precicely.
Filters = Glass filters you put in front of the lens. A much used filter is the claer UV filter that is supposed to protects the front of the lens. Other filters are color filters that add effects to black and white photography by changing the color balance. Other filters are ND (Neutral Density) filters that reduce the amount of light coming through (used for for example video recordings as video is usuallu filmed at 1/50th second shutter speed and thus most lenses are too bright wide open. Or they are used for long exposure photography in order to record for example stars movements over the sky. Other filters are filters that create star effects, or blur the view, and almost any effect you can think of.
A traditional Yellow filter in 49mm diameter to screw onto the front of the lens. The yellow filter is used for black and white photography where it slightly darkens skies, helps to cut through haze, and improves overall contrast. Yellows and reds within the scene are also lightened.
Flare = Burst of light. Internal reflections between (and within) lens elements inside a lens. Mostly, flare has a characteristic "space travel" look to it, making it cool. Particularly in older lenses with less or no coating of the glass surfaces to suppress this, it can be a really cool effect. In newer lens designs, the coatings and overall design try to suppress flare and any reflections to a degree, so that there is seldom any flare to be picked up (moving the lens to pick up a strong sunbeam), but instead a "milking out" (or "ghosting") of a circular area of the frame; meaning simply overexposed without any flare-looking flares.
Sunlight creating (fairly supressed) flare in the bottom right quadrant of the image of a modern lens.
Lens Flare in Star Trek (2013). JJ Abrams famously said, "I know there's too much lens flare ... I just love it so much. But I think admitting you're an addict is the first step towards recovery (ha ha)"
FLE = See "Floating Elements"
Flickering = blinking light. This may result in "banding like" horizontal stripes in an image, or simply that the light you see isn't in the picture, or it looks different. For example, you take a photo in light, and the result you get is darker. You take another, and now it is all right. The reason is that some light blinks. Here's the difference within one second (notice how the light in the room, the wall light and the sign light all flicker):
Flickering light causing different result in each frame becasuse the light blinks faster than the eye sees, but slow enough to be caught on camera. Here at shutter time 1/1500 sec, four pictures within a second.
Often you will see that you take a portrait indoor in an office, and from frame to frame the person has shade on one side of the face in one photo, but not the next.
Flickering ligh is a new challenge that photographers face, which is flicering light that looks good to the eye, but result in different results in a photo. Through cinema and photography history, the three standard high-quality light soruces have been daylight (from the sun), daylight HMI (5400 Kelvin Hydrargyrum medium-arc iodide lamps) and tungsten lamps (3200 Kelvin). When I say high-quality, it's because those are the light types that ensure high color quality (see the definition of CRI - Color Rendering Index in my "Leica and Photography Definitions page") and how quality light traditionally has a score above 90 CRI).
In recent years we have seen "light that flickers" because it has a pulse, such as stage light, photo lamps, video lights and of course indoor and outdoor late night lamps using LED (Light-emitting diode), compact fluorescent lightbulp-shaped lamps and other low-energy lamps (such as halogen). These light also generally have lower CRI (Color Rendering Index) below 90, and even lamps that are stated to have 90 CRI or higher, may mis out on the important red and blue tones, which will make it impossible to get the colors right, espoecially skin tones). If a stage has one or more low-quality lights (which they thend to have), these will pollute the colors of the scene to some degree.
Banding as result of electronic shutter, and often also if the ISO is high.
Flickering horizontal stripes (or "banding"-looking stripes) may appear when you use electronic shutter, and you are photographing with one or more light sources that flickers.
When the electronic shutter is on, you are usually at higher shutter speeds than 1/2000, which means there it would be possible to go down to a lower ISO, and to activater the mechanical shutter. (In some cameras you can choose to use electronic shutter throughout the entire range, which would make the camera completely silent; and this alone may cause horizontal stripes/banding if one or more lights in the room flickers).
Flickering in the EVF is very normal and will apear often without the vertical lines you see in the EVF will be in the picture.
Floating elements (a group of lenses or can also be s aingle lens element). .
Floating Elements (FLE) = Near focus correction in a lens by having a single lens or a group of lenses floating independently of the other lenses. Most lenses are born with poor performance at their closest focusing distance. Center sharpness may be good, but aberrations and corner softness increase when you’re shooting closeups. Floating elements are lens elements outside of the primary focus group that change position when the lens is focused on a close object, correcting aberrations and improving close up performance. Floating Elements originally was coined by Canon in the 1960's and quickly became the general term for this feature. Other brands came up with new names for the same thing, Minolta called it Floating Focusing, Nikon used the term Close-Range Correction (CRC), Leica call it FLE/Floating Elements.
Floating elements are for close-focus improvement of image quality and not for reducing "focus shift". Floating elements by themselves cannot reduce focus shift, but by reducing the impact of focus distance on performance, they give the designers more freedom in other areas - which could include minimising focus shift.
(As a side-note, when a lens "rattler when moved, it is not the floating elements "floating around" but can be the IS (Image Stabilization) elements for elense that has that, AF elements for auto focus lenses, or the aperture cage that rattles (as in the case of the Leica 35mm Summilux-M f/1.4 FLE - if you stop down the Summilux to f/16, the sound is usually not there).
Fn = Short for Function. It's a function button or wheel on a camera that you can program (focus zoom, turning acessories on/off, one-click to set white balance, one-click to call up a particular menu setting).
The Leica M11 has a Fn button on top.
The Leica TL2 and Leica CL has two Fn wheels (wheels you can program to different functions after your likings).
A 28 mm lens has a 74° viewing angle
Focal length = Originally focal length referred to the distance from the sensor (or film in older days) to the center of focus inside the lens (28mm, 50mm, 400mm, etc). Today one call it effective focal length (EFL) as a 400mm lens is not nessesarily 400mm long due to optical constructions that can make it shorter. The 35-420mm zoom on the Leica V-Lux 1 is for example only ca. 135 mm long. Nobody uses that measurement, except those who construct lenses! For users of lenses, focal length refers to how wide the lens sees. The viewing angle, which is often given in for example 90° viewing angle for a 21mm lens, 74° viewing angle for a 28mm lens, 6° viewing angle for a 400mm lens, etc.
Each human eye individually has anywhere from a 120° to 200° angle of view, but focus only in the center.
Focus, in - Sharp and clear in appearance. Focus - “The burning point (of a lens or mirror)”. In Latin the word focus meant fireplace or hearth. The word was probably first employed outside of its Latin literal use as “the burning point of a lens or mirror” in optics, and then came to mean any central point. The German astronomer Johannes Kepler first recorded the word in this sense in 1604.
Focus shift = That the focus of a lens shifts as the aperture changes. For example, if one focus a 50mm lens at f/2.0 and then stop the aperture down to f/8, the focus may change, especially noticeable in close focusing. Modern lenses with floating elements (FLE) where the floating elements adjust for image quality in close-focusing may also help avoid focus shift.
Frame lines = the lines inside a viwfinder that indicates the edger of the frame. In a Leica M, the viewfinder always is as wide view as 24-28mm. A mechanical contach on the lens (triggers the camreas frame selector) so the viewfinder shows the frame line of that lens. In the Leica M, the frame lines comes in sets, so there are alwaus twop sets of frame lines shown at any time (see illustration below).
(This is different than in most cameras where you only see what the lens captures: SLR cameras was the evolution in 1940's where the image from the lens was displayed directly onto a matte screen inside the camera via a mirror.
Later mirrorless cameras, the viewfinder shows the exact picture that the sensor sees through the lens).
Frame lines of the Leica M, here showing the set of 35mm and 90mm framelines.
Full Frame is "king of photography"
Full Frame (FF) = The size of the sensor is 24 x 36mm which is the format Oskar Barnack and Leica Camera AG invented with the first Leica that was introduced in 1925. Many other formats invented since, such as APS, APS-C and all usually refer to Full Frame ratio, by which it means what size they have compared to Full Frame. The "full frame" technically deifinition thouhg is a sensor that camtures the full frame in one go (as the early sensors as in Leica S1 scanned the image/senor over a period of time). The 24 x 36mm Full Frame format is so "king of photography" that it has continued to be the ideal for all cameras. Besides this, there exists Large Format cameras such as 4x5" (100 x 125 mm) and Medium Format 6x6 (60 x 60mm amongst other sizes in that area).
Ghosting = Secondary light or image from internal reflections between (and within) lens elements inside a lens. The reflected light may not always be in focus, so overall it looks like a "milked out" image. A subject in focus has brightened patches in front of it that come from reflections inside the lens. the most elementary look of ghosting is when you look in a rear-view mirror in a car at night and you see doubles of the headlights behind you (a strong one and a weaker one), because the headlights are reflected in a layer of clear glass on top of the mirror glass.
Degrees of ghosting from strong sunlight entering from outside the frame. To the right the outside light has been shielded with a shade.
ISO = Light sensitivity of the camera sensor is given in ISO (International Organization for Standardization). It's a standard that was used in film and is now used in all digital cameras also. The base ISO for the Leica TL2 sensor is around 100-150 which means that this is what the sensor "sees". All other levels are computer algorithms calculating the effect as if the sensor could "see" more (hence noise at higher ISO levels).
ISO goes in steps of doubling: When the ISO is raised from 100 ISO to 200 ISO, the camera only need half the amount of light to make the same picture. For each step in ISO to 400, 800, 1600, 3200, etc. the light sensitivity is doubled for the sensor (and the camera sensor only need half the light of the previous ISO to record the same image).
Also see Base ISO in this list.
JPEG = A standard for picture format made in the 1990's by Joint Photographic Experts Group). Mostly referred to as JPG as in L1003455.JPG which would be the name for a JPG file from the camera.
Leica L-mount bayonet.
L-mount = Lens bayonet mount introduced by Leica for the Leica T in 2014 and used for Leica TL, Leica CL and Leica SL. Since 2019 the L-mount has also been shared with Panasonic, Sigma and others who produce cameras and lenses that are compatible with Leica L cameras and lenses lenses, and vice versa.
The L-mount has a diameter of 51.6 millimeter which is big enough for any design we could wish to design, and at the same time compact enough for the L-mount to be used on compact cameras such as Leica TL and Leica CL with APS-C sensor sizes. Leica chief lens designer Peter Karbe spent years calculating this ideal size, large enouhg for any design, yet as compact as possible. Read my article "Small Camera, Large Print" (2019) with interview with lens designer Peter Karbe for more.
After Leica introduced this new bayonet mount in 2014, Nikon (Z-mount 55mm), Fuji (G-mount 65mm) and Canon (RF-mount 54mm) followed with similar new bayonet mounts, but with bigger diameter, making them less able to produce compact lenses.
LCC = acronym for Lens Cast Correction, which is a tool in phtoo editing (Capture One) that can help correct common issues that arise when using wide angle lenses. The "cast" is typical color cast, meaning that the color goes in an unwanted direction; snow in a photo has too much blue, so you correct it to have less blue and look like white snow. In Copture One, one create an LCC master profile which contains adjustment of color cast, dust spot removal and more, and then that LCC file can be applied to any photo in a series (of for example landscapes or architecture photos).
A screen on a camera is often referred to as "LCD Screen" for no particular reason (illustration is the back of the Leica Q2 special limited "James Bond/Daniel Craig & Greg Williams" version (2021).
LCD = Screen. LCD itself means liquid crystal display, which is slightly irrelevant (what it is made of) as the expression is mostly used to simply mean "screen".
Leica = A compound word derived from " (Lei)tz" and "(ca)mera". Apparently they were originally going to use "LECA", but another camera company already used a similar name in France, so they inserted the 'i' to prevent any confusion. The Leica name and logo is owned by Leica Microsystems GmbH.
Leicaflex was Leica's first single lens reflex (SLR) camera, released in 1964. It is a very solid, fully manual SLR with an exceptionally bright viewfinder. The Leicaflex SL and Leicaflex SL2 and Leicafles MOT (enabling attachment of motor winder) came after, and then Leica went onto Leica R3 that it developed with Minolta, then Leica R4, Leica R5, Leica R6.2, Leica R7, Leica R8, Leica R9.
My Leitz Leicaflex SL (1973) film camera in black, here with 50 mm Summicron-R f/2.0 from Canada.
The word lens derives from lentil, because of the similar shape.
Lens - A piece of glass or similarly transparent material (like water or plastic) that has a shape so that it can direct light rays. The word “Lens” is used both for single piece of glass as well as a camera lens with several lenses that works together. From ‘lentil’ because similar in shape.
A camera lens consists of several shaped lens elements of glass. The lenses can also be made of simple cheap plastic as in "kit lenses" (sold with a camera as a kit to make a workable cheap package), but it is mostly very exotic glass (that can be heavy or light in weight, very hard or very soft in surface (esay to scratch or very resistant) with each optical glass recipe made to develop very specific qualities in how the glass and final lens treats light. As a general rule, high quality glass is soft, which is why some lenses has as their front and back element, a non-optical lens element that is there to protect the actual optical glass from scratches. As a side noite, Leica made their own glass laboraty, The Leitz Glass Laboratory, from 1949-1989, which deveopled 35 new glass types and took out more than 2,000 patents of glass recipes from more than 50,000 experimental melts of glass. These designs, or recipes, are still used today by the lens designers to obtain very specific optical results. Other lens manufacturers in the world of course have had their glass laboratories, and today one will find an interchange of glass patents amongst production facilities that service Leica, Nikon,, Fuji and so on with optical lens elements.
Lens hood = (also called a Lens shade or Ventilated Shade). A tube or ring attached to the front of a camera lens to prevent unwanted light from reaching the lens and sensor. In the past where lenses were not coated to prevent internal reflections inside the lens, the lens hood was often essential. These days where lenses are coated, the shade serves just as much as decoration and protection (bumper) as well. ORIGIN Old English hod; related to Dutch hoed, German Hut 'hat,' also to hat.
Lens hood or Lens shade or ventilated shade. In the picture is a ventilated shade with clip-on mount to a 50mm f/2.0 lens. Ventilated means it has openings that allow for view from the viewfinder.
Lens names of Leica distinguish which widest aperture the lens has:
Noctilux
f/0.95 - f/1.25
Nocticron
f/ 1.2 (Leica-designed Panasonic lens)
Summilux
f/ 1.4 - f/1.7
Summicron
f/2.0
Summarit
f/2.4 - 2.5
Hektor
f/1.9 - f/6.3 (used 1930-1960 for screw mount lenses only)
Elmarit
f/2.8
Elmar
f/2.8 - f/4.5
Elmax
f/3.5 (only used 1921-1925 for the 50mm Elmax f/3.5)
Telyt
f/2.8 - f/6.8 (used for tele lenses)
Bubble Level Gauge to mount onto the flash shoe.
Level Gauge = This is a tool in the viewfinder to see if you hold the camera 100% horizontal and/or vertical. You can turn it on in the Menu > Photo Live View Setup > Level Gauge > On.
Before level gauge was integrated as a digitized feature in modern digital camers, it was a Bubble Level Gauge / Spirit Level you put on top of the camera.
The idea is to be able to get 100% vertical and horizontal lines (because if you tilt the camera slightly, the horizon will not be horizontal, and of you tilt the camera forward or backwards, the lines of for example vertical buildings will not be vertical.
Digitized level gauge in a Leica M10-P. You tilt the camera up and down (front/back and left/right) till the level is completely straight.
Light = Tiny particles called photons that behaves like both waves and particles. Light makes objects visible by reflecting off of them, and in photography that reflecting off of subjects is what creates textures, shapes, colors and luminance. Light in its natural form (emanating from the sun) also gives life to plants and living things, and makes (most) people happier. So far, nobody has been able to determine exactly what light is. The word photography means “writing with light” (photo = light, -graphy = writing). Read more about light in my book Finding the Magic of Light.
The "light balance" scale in the camera menu.
Light Balance = That the amount of light is correct, or is under-exposed or over-exposed. Not a common expression, but is used in camera manuals for the scale that shows how the exposure compensation is set, or indicates a scale that shows what the camera thinks the exposure should be adjusted to.
Live View = This is the ability to see the image the sensor see, live, via the screen on the back of the camera, or via an electronic viewfinder (EVF).
LMT - Leica Thread-Mount: Also known as M39, is the screw mounted lenses for Leica cameras. It’s a simple as that; you screw on the lens, and back in 1932, the possibility to change the lens was the big news hwen introduced by Leica on the Leica III. The M39 system was updated with the M Bayonet from 1954 for the Leica M3. The M bayonet is a quick way to change lenses and is the current mount for Leica M digital rangefinders.
M (as in "M3", "M6", "M7" etc.)
A) The M originally stands for "Messsucher", which is German "Meßsucher" for "Rangefinder". The "3" in M3 was chosen because of the three bright line finders for the 50, 90 and 135 mm lenses. Later the numbers of the M cameras were more or less chosen to follow each other.
M-body evolution in chronologic order:
M3 - MP - M2 - M1 - MD - MDA - M4 - M5 - CL - MD-2 - M4-2 - M4-P - M6 - M6 TTL - M7 - MP - M8 - M8.2 - M9 - M9-P - MM (black and white sensor) - ME (Type 220) - Leica M (Type 240) - Leica M-P 240 - Leica M 246 Monochrom - Leica M-A (type 127, film camera) - Leica M 262 - Leica M-D 262 (without a screen) - Leica M10 - Leica M10-P, Leica M10 Monochrom, Leica M10-R, Leica M11.
B) M also refer to M-mount as the M bayonet that couple the Leica M lenses to the Leica M camera. Before the M bayonet the coupling between the camera and lens was screwmount.
C)
M nowadays refer to the Leica M line of cameras rather than the "Messsucher".
The Leica M bayonet on the Leica M10.
M-mount: The Leica M-mount is a bayonet that was introduced with the Leica M3 camera in 1954 and has been used on all subsequent Leica M cameras, as well as on the Epson R-D1, Konica Hexar RF, Minolta CLE, Ricoh GXR, Rollei 35RF, Voigtländer Bessa, and Zeiss Ikon cameras (2019).
Compared to the previous screw mount (M39), the M
mount requires a quick turn of the lens, and ithe lens is mounted. The patent for the M-bayonet ("Bajonettvorrichtung für die lösbare Verbindung zweier Kamerateile") was registered by Ernst Leitz GmbH 10 February 1950 (patent number DE853384). Hugo Wehrenfennig was credited with the invention.
M9
Leica M9 is a model name for the Leica M9 that was introduced on September 9, 2009 (as the first full-frame digital Leica M). It was the latest model designation using the M and a number. From their next model, Leica Camera AG introduced a new model system so each camera would simply be a Leica M but then with a model designation like Typ 240, Typ 246, Typ M-D 262 and so on. The idea was inspired from Apple who name their computers for example MacBook Pro and then it has a sub- model number designation which model it is (and which would define speed of processor, etc).
MACRO = Macro lens. The Leica 60mm APO-Elmarit-Macro-R ASPH f/2.8 is a 60mm lens for portraits, landscapes, etc. as well as a near focus macro lens. The Leica Q lens can be turned to Macro which enables you to go close so as to enlarge smaller subjects. The Leica M cameras becomes Macro when you add a Macro ring "Oufro" or "Leica Macro M Adapter" that increases the lens' distance to the sensor. The word macro comes from Greek makros ‘long, large.’
Maestro III - A processor developed first as Maestro for the Leica S2 (Maestro) and upgraded to Maestro II for the Leica S (Typ 007). The Leica Q and Leica Q2 has a Mestro II (Leica Q edition) processor developed by SocioNext Inc. based on Fujitsu's Mibeault architecture. Leica M10 also has a Maestro II processor, but seemingly developed further for this model. The Leica M11 (2022) has a Maestro III processor.
Mandler, Dr. Walter (1922 - 2005)
Legendary Leica lens designer and CEO of Ernst Leitz Canada (ELCAN) 1952-1985. Read more inLeica History.
Dr. Walter Mandler (center) at the Ernst Leitz Camera factory.
Megapixel (or MP) - Millions of pixels. See pixel further down. How many units of RGB is recorded by a given sensor by taking height x widt. A Leica M10 delivers a 5952 x 3968 pixel file = 23,617,536 piexls. On a screen the resolution you choose determines the size of the image. Say you have a 5000 pixel wide file and your screen is set for 8000 pixels wide. Then the image will fill only the 5000 pixels fo the 8000 and the rest will be empty, If you then change the screen resolution to 5000 wide, the image would be able to fill out the whole screen.
Meßsucher = (rangefinder or distance finder) = Mess = range, sucher = finder. It is always correctly written with the "ß". There are technically not three "s", rather the "ß" and one "s" because it is a word constructed by the combining of two precise words.
mm = millimeter(s), as in a 50mm lens. (Earlier in lens history lenses focal length was given in cm = centimeters; as in a 5 cm lens). For anyone used to centimeters and millimeters, it’s no wonder. But if you grew up with inches, feet and yards, you may have had a hard time grasping what a 50mm lens was. But as lenses were designed first in Europe, the metric system with centimeters and millimeters was used to describe lenses.
(Leica and others made lenses for a while with either meter scale or feet scale; but then eventually started including meter and feet on all the lenses (two scales, usually distinguished with different colors). However, the lens' focal length remained always 50mm, 75mm and so on).
The reason a 50mm lens is a 50mm lens is that there is 50mm from the focus plane (the film or sensor surface) to the center of focus inside the lens. When photography was a young subject, it was engineers who made it all, and the users were expected to understand. The engineers were so into the making of the lenses, that it apparently never dawned upon them that today’s users would think of a 21mm lens as a wide angle lens rather than a lens where there is 21mm from the sensor to the center of focus inside the optics.
MP
a) Stands for Mechanical Perfection, as in the Leica M-P.
b) Megapixels (millions of pixels).
c) Megaphotosites (millions of photosites).
ND
Neutral Density filters are grey filters function as 'sunglasses' for lenses. They simply block the light so that a lens can work at for example f/0.95 or f/2.0 in sunshine.
If a camera is set to 200 ISO and the maximum shutter speed is 1/4.000, this will usually result that the lens has to be at f/2.8 or smaller aperture in sunshine. Else the image will over-exposed. So in order til stay within the maximum shutter speed of 1/4.000 and still use a lightstrong lens wide open, one mount a ND-filter that reduce the light with 3 stops (8X) or 6 stops (64x).
For video ND-filters are used quite a lot (as the shutter speed for video is 1/60), and ND-filters are also used to reduce the light for really long multi-exposures at night (stop-motion video and stills).
ND-filters also exist as variable ND-filters so one can adjust the amount of light going through from for example 1 stop (2X) to 6 stops (64X).
ND-filters also exist as graduated ND-filters where the top of the filter is dark and then gradually tone over in no filter (so as to reduce the skylight in a landscape for example).
The ND filters are called Neutral because it is a neutral filter. It doesn't change colors, only the amount of light.
ND-filters / gray-filters.
Noctilux = Also known as "King of the Night" because "Nocti" means Night and "Lux" means Light. The f/1.0 lenes from Leica are named "Noctilux". The first Leica Noctilux lens was the 50mm Noctilux f/1.2 which shortly after it's introduction was improved to the 50mm Noctilux f/1.0. In the current model the f-stop has been improved further to f/0.95.
"Noctilux" refers to the maximum lens aperture - here f1.0 . "Nocti" for nocturnal (occurring or happening at night; ORIGIN late 15th cent.: from late Latin nocturnalis, from Latin nocturnus ‘of the night,’ from nox, noct- ‘night.), "lux" for light. The Leica Noctilux 50mm f1.0 is famous for enabling the photographer to take photos even there is only candleligts to lit the scene. See the article "Leica Noctilux - King of the Night"
The Noctilux "King of the Night" lens. From left the f/0.95 in silver (same on the camera, in black), the f/1.0 in the back and the rare and expensive first model, the f/1.2 in the front.
No.
Number, on this site Leica catalog numbers or order numbers. Some the numbers changed depending on the number of cams in the lens: The Elmarit-R f2.8/135mm started life as No. 11 111, however when fitted with 2 cams for the SL became No. 11 211, yet another No. for the 3 cams lens and a fourth number for 3 cam only at the end of its life. Number changes also applied to M lenses depending on whether they were screw-thread, bayonet or for M3 with “spectacles”. Thus the No. in the Thorsten Overgaard Leica Lens Compendium list is a guideline but not a comlete list of existing catalog numbers.
OIS = Optical Image Stabilization. This is used in tele lenses where blurring motion of the camera from inevitable vibrations are adjusted by the lens. At low shutter speeds and/or with long lenses, any slight movement would result in a picture with "motion blur" unsharpness. The Leica TL2 supports optical image stabilization when A) OIS is turned on in the camera menu, and B) when you use lenses with OIS (the Leica SL longer lenses has OIS). An alternative is EIS = Electronic Image Stabilization, which the Leica T has. Here the problem of "motion blur" is corrected electronically after, which might lead to image degradation. However, the larger the sensor resolution, the less one will notice small 'degradation'.
Optic = Eye or vision. From French optique or medieval Latin opticus, from Greek optikos, from optos ‘seen.’
OSPDAF (sensor type) = On Sensor Phase Detect Autofocus, which is a digital sensor where the main imaging sensor has "focus pixels" added in a layer on top of the traditional image pixels that are used for autofocus. First introduced in 2010 by Fujifilm on F300EXR and used in the first smartphone in 2014, Samsung Galaxy S5.
PASM on a cameras 'program wheel'
PASM = is short for P = Program Mode / A = Aperture Priority Mode / S = Shutter Priority Mode / M = Manual Control Mode. On some cameras, these P, A, S and M are choices on a wheel on top of the camera, or in the menu.
PDAF = Phase Detect Autofocus. Used in canon EOS 5D Mark IV in 2016 where a dSLR camera use mirrors to reflect copies of the main sensor’s light at a dedicated phase detection sensor. Compact cameras and smartphone cameras has the AF sensors built on to he sensor itself so as to be more compact (OSPDAF = On sensor Phase Detect Autofocus). The alternative to PDAF is CDAF (Contrast Detection Auto-Focus).
Perspective = The way objects appear to the eye; their relative position and distance. Also, selective focus (foreground and background out of focus) can change the perception of perspective (also see Three-dimensional). A wide angle "widens" the perspective and makes objects further away appear smaller than they are to the eye; and objects closer, relatively larger than they are to the eye. A tele lens will "flatten" the perspective and often objects further away will appear relatively larger than close objects than they are in real life. A 50mm lens is the one closest to the perspective and enlargement ratio of the human eye.
The word Perspective comes from the latin word for optics (perspicere, per- ‘through’ + specere ‘to look’), and so-called Renaissance painting is simply painting done within the framework of optics and the linear perspective it presents.
Perspective is relative position and distance. The objects nearby are larger than objects far away. This is how the eye and the mind calculate distance. The eye and the camera automatically captures perspective. In darwing and painting one would see "stupid" two-dimensional drawings 500 years B.C where elements were thrown into the mix without considering that a an object far away must be smaller than if close to the viewer. The word "perspective" comes from "to look through (optics)". Pier 7 in San Francisco by Thorsten Overgaard. Leica M11 with Leica 50mm Noctilux-M ASPH f/0.95.
Vanishing points are the points where lines meet. This is how you make perspective in paintings and drawings (and some times make movie sets or theatre stages appear more three-dimensional than they are)
Painters works with vanishing points, which is where the lines meet, so as to create an illusion of perspective and three-dimensional effect on a two-dimensional painting or drawing.
The human eye corrects for perspective to an extreme degree. We always see vertical lines vertical and horisontal lines horisontal: The eye has a angle of view equivalent to an 8mm wide angle lens, a size ratio equivalent to a 50mm lens and we focus on relatively small area of the viewing field - one at the time. Three things happens that are worth paying attention to:
1) We compile areas of our view that we focus on, to one conceptual image that "we see". Ansel Adams, the great American landscape photographer pointed out that a large camera used for landscape photography capture every detail in focus and sharp so you can view it in detail after; but the eye does not see everything in focus when you try to compose the landscape photography, the eye scans only one part at a time and stitch the idea together. This makes composing or prevision of a landscape photography challenging.
2) We compile areas of our view that we individually adjust the exposure of. A camera adjust the exposure of the whole image frame to one exposure. That's why what looks like a nice picture to the eye of houses in sunshine with a blue sky above, becomes a photograph of darker buildings with a bright white sky: The camera simply can't take one picture that compare to what we "compiled" with our eyes, adjusting for each type of light.
3) Objects (on a table, for example) in the bottom of our viewing field will appear 100% perspective corrected - to a degree that it is impossible to correct in optics, with or without software correction. A wide angle lens, even with little distortion, will exaggerate the proportions of the closet part so it - to the eye - looks wrong.
Perspective correction - In software like Adobe Lightroom and Capture One Pro there is often a feature to correct perspective (and distortion) like seen below. You can change perspective this way, or at least make believe: If you correct a tall building on teh vertical lines, you will notice that the height of the windows doesn't match the perspective. If the building is with straight lines, the windows should all be of the same size. But a tall building seen from below and corrected with software will have taller windows (closer to camera) in the bottom than in the top (further away from the camera originally).
A graphic illustration of the typical Bayer Color Filter Array on an RGB sensor. It's called a Bayer filter because Bryce Bayer of Eastman Kodak invented the technology of filtering incoming light into RGB and distribute it into the the photosites that each read just one color (R/G/G/B).
Photosite - The unit in a digital camera sensor that records intensity of either red, green or blue. Unlike the output of a sensor, measured in pixels (and where each pixel contains RGB), the photosite records only one color each, and it's intensity (how bright it is). A photosite can not distinguish colors, which is why there is a Color Filter Array (basically a prism) above them to filter the colors and send information to the photosite if 's a R, G og B color. See illustration below. In a monochrome sensor (as in the Leica M Monochrom and the Phase One Achromatic), all photosites are recording intensity of light only as there is no concern which color it is, and there is no color filter.
The ratio of photosites to pixels is not a given. Each block of 4 contiguous photosites contains one photosite sensitive to low wavelengths (blue), one photosite sensitive to high wavelengths (red), and two identical photosites sensitive to medium wavelengths (green). So four photosites would be the minimum to create one 'full-color' pixel. Apart from that, depends on the sensor specifications, which is different from brand to brand. Sometimes four photosites (two Green, one Red and one Blue) makes up one pixel, at other times it's more photosites to one pixel; and there is also pixels sampled from photosites across (sort of overlapping patterns).
Pixel - Made up word from Pix (picture) and el (element). A pixel is the smallest full-color (RGB) element in a digital imaging device. The physical size of a pixel depends on how you've set the resolution for the display screen. The color and tonal intensity of a pixel are variable, meaning that each pixel contains RGB. This is different from a camera sensor's small eyes (photosite) that are an intensity of either red, green or blue. You could say that the digital sensor's photosite (where each unit collects just one color; red, green or blue) is the input technology, whereas the pixels on a screen (where each pixel contains red, green and blue) is the output device. So while sensors are measured in megapixels (mega = million), it's their output unit of pixels, and not the input unit of photosites that is measured and stated. See illustration below.
Q - The Leica Q model was released in 2015 as a full-frame 24MP digital compact camera featuring a fixed auto-focus and 28mm f/1.7 lens with macro, amd upgraded with a larger 51MP sensor (same concept) Leica Q2 in 2019. See my article Compact Leica Cameras for more.
R = Resolution, in the name Leica M10-R camera model (2020).
R - Reflex: The Leica R cameras (2009) is the SLR cameras from Leica. The first Leicaflex (1964) feels like a Leica M, built as a tank, and with reflex and fits Leica R lenses. Over the production time of the Leica R system, a number of magic lenses from fisheye to 800mm were made for this system (as well as a made-to-order 1600mm lens for a prince in Qatar). Also a number of zoom lenses was made for the Leica R system. Many of the lenses are being used for cinema in their next life, especially the wide angle and the 50/1.4, but also the 280mm APO f/2.8 tele lens was retrofitted with a PL mount and used for the Joker movie in 2019.
The Leicaflex series (1964 - 1976) was modernized with the Leica R3 (1976) that was made together with Minolta , and then Leica went on with Leica R4, Leica R5, Leica 6.2, Leica R7, Leica R8 and Leica R9. The latter two models got a digital 10MP back made as an accessory in 2004 (CCD-sensor made with Imacon and Kodak). You simply took off the film back and mounted a digital back (and could change back to film if you wanted to). See my Leica DMR article. The Leica R system was retired in 2009 when the production of new lenses stopped. Leica Camera AG said then that the plans fot the R10 camera had been retired as it was not feasible to maintain an SLR system. Though, in 2016 Leica opresented the Leica SL system which is a SLR camera without reflex and instead is mirrorless cameras, and with a new series of L-mount lenses. The Leica SL (and Leica M) can use Leica R lenses via adapter.
"Rattle" = Noise from something moving around inside a lens when moved or shaken, as if something is loose: When a lens "rattle" when moved, it is not the floating elements "floating around" but can be the IS (Image Stabilization) elements for elense that has that, AF elements for auto focus lenses, or the aperture cage that rattles (as in the case of the Leica 35mm Summilux-M f/1.4 FLE - if you stop down the Summilux to f/16, the sound is usually not there).
Rigid - Refers usually to the Leica 50mm Summicron-M f/2.0 "Rigid" of 1956.
It is called "Rigid" because, unlike the 50mm Collapsible, this one is not able to be changed.
Rigid means stiff, uable to be forced out of shape. Not able to be changed. From Latin rigere, "be stiff".
The name is a little confusion nowadays as all or most lenses are rigid today, but back in 1925-1956, many lenses were collapsible so the camera was compact when not in use. Just like compact cameras today often has a lens that extrudes when the camera is turned on, and collaps into the camera body when the camera is turned off.
RF
(R)ange (F)inder - the mechano-optical mechanism which allows M Leicas to focus.
Alternative meaning - RF is also shorthand for Hexar RF , Konica's motorised "M-lens-compatible" rangefinder camera released in 2000.
S = Single image. When the ring by the shutter release on top of the camera (or in the menu of a digital camera in case it does not have this ring on the ourside) is moved from OFF to S, the camera takes only one photo at the time (Single). The other possibility is Continuous where the camera takes pictures continiously as long as the shutter release button is helt down. (see above).
Saturation: How colorful, intense or pure the color is. Less saturation would be less colorful, more saturation would be more colorful. In today’s photography, de-saturating a photo on the computer will gradually make it less and less colorful; and full de-saturation would make it into a black and white photo.
Sensor = A device that detects a physical property (like light) and records it. A camera sensor is a plane plate with thousands of small “eyes” with (photosites) a lens in front of each (CFA, Color Filter Array), which each individually records the amount of red, green and blue light rays that comes through the lens. Together, Red, Green and Blue form all colors of the spectrum, which becomes a pixel. Sensor comes from Latin sens- ‘perceived’.
SDC = Software Distortion Correction. A correction of lens distortion (not straight lines) applied in the camera and which is part of the DNG or RAW file. In Lightroom or Capture One Pro the SDC of the camera file is applied automatically (and cannot be removed), in software like AccuRaw one can open the DNG file without the SDC correction. Sean Reid Reviews have written a good article on what SDC is and does in "Software Distortion Correction".
SDC (Software Distortion Correction): In Lightroom the correction profile for the Fujinon 23mm is applied automatically and cannot be turned off.If you go into Develop mode in Lightroom and look under Lens Correction > Profile, you will see a message in the bottom with an exclamation mark. When you click on that, you get the message above.
Sharpness - See “Focus”
Shutter speed dial - The dial on top of the Leica M where you can set the shutter speed manually. It can also be set to A which stands for Aperture Priority (where the camera suggests a shutter speed; or when you move the dial away from A, the camera will show arrows in the viewfinder, suggesting which direction to change the Aperture to, to get the correct exposure).
The number on the dial refers to the shutter speeds. "4000" is 1/4000th of a second (one second divided with 4,000).
Shutter speed dial set to A (Aperture priority where the camera automatically suggest an shutter speed based on the aperture of the lens). The other settings are manual shutter time settings. "B" is short for Bulb where the shutter is open for as long as the shutter release is pressed (max 60 minutes in the Leica M11). The little "thunder symbol" between number 250 and 135 is a symbol indicating that this is the flash synchronizing setting (1/180th of s a second).
Six-bit code (6-bit code) - An engraving on the flange of M-lenses that makes it possible for digital M-cameras to recognize the lens that has been mounted. The camera can include information on the attached lens and its focal length in EXIF data and make digital corrections for lens-specific flaws, such as color-cast or vignetting. Six-bit coding was introduced for all M-lenses sold since 2006, but many older lenses can be retrofitted with the code at Leica Camera AG in Wetzlar.
SL = Abbreviation for Single Lens (used by Leica for theeir Leica SL (2015) digital cameras. The point is that there is no Reflex mirror (See SLR in the list).
SLR = Abbreviation for Single-Lens Reflex; the lens that forms the image on the film/sensor also provides the image in the viewfinder via a mirror. Newer camera models has aen EVF (Electronic Viewfinder) that displays in the viewfinder what the sensor sees in real-time.
Leitz Wetzlar Mikro-Summar 42mm f/4.5 lens anno 1910 might be the first lens carrying the name Summar.
Summar - (or a story of name development) The 1933 lens 50mm f2.0 Summar: It started out as Summar(f2.0), then the Summitar (f2.0 in 1939), then the Summarex(f1.5 in 1948), then the Summaron(35mm f.2.8 in 1948, then later f2.0, f3.5 and f5.6 lenses), then the Summarit (f1.5 in 1949 and used again for the 40mm f2.4 on the Leica Minilux in 1995, then again for the 35mm, 50mm, 75mm and 90mm Summarit f2.5 in 2007) then the Summicron(f2.0 in 1953 for the collabsible 50mm) and finally the Summilux(50mm f1.4 in 1959).
ORIGIN of Summar is unknown.
Summarex
The great thing about being a lens designer is that you get to name the lens. Dr. Max Berek who worked for Leitz from 1912 till his death in 1949 named lenses after his two favorite dogs. One was Sumamrex named after his dog Rex, the other Hektor named after his dog Hektor.
Summarit
Refers to the maximum lens aperture - here f/1.5.
Summicron = Refers to the maximum lens aperture - here f/2.0 . There are many guesses how this name came about, a popular one being that the "summi" came from "summit" (summit means the highest point of a hill or mountain; the highest attainable level of achievement) while the "cron" came from "chroma" (ie. for colour). Not so: The name (Summi)cron was used because the lens used Crown glass for the first time, which Leitz bought from Chance Brothers in England. The first batch of lenses were named Summikron (Crown = Krone in Deutsch). The Summi(cron) is a development from the orignal Summar (the 50mm f2.0 lens anno 1933). Vario-Summicron, Vario-Elmarit is Leica Camera AG's name for zoom lenses, for example the Vario-Summicron f/2.0 as the one that is on the Leica Digilux 2.
Summilux = Refers to the maximum lens aperture - here f/1.4 , "-lux" added for "light" (ie. the enhanced light gathering abilities). In Leica terminology a Summilux is always a f/1.4 lens and a Summicron is a f/2.0 lens.
Telyt
Lens nomenclature - short-hand for " telephoto " (tele- is a combining form, meaning to or at a distance) and used in names of instruments for operating over long distances : telemeter. The name has been used for a number of tele lenses from Leica.
ORIGIN: from Greek t?le- ‘far off.’
Thambar Leitz Thambar 90mm f.2.2. At most about 3000 were made, originally, probably in eight batches, starting with 226xxx (built in 1934) and going through 283xxx, 311xxx, 375xxx, 416xxx, 472xxx, 511xxx, and 540xxx (about 1939/1940). But then the Thambar was re-launched in 2018, exactly the same lens.
Three-dimensional = Having the three dimensions of height, width and depth. In photography and lens design, three-dimensional effect is also the perception of even small micro-details; the texture of skin can appear flat and dead or three-dimensional and alive. Also, selective focus (foreground and background out of focus) can change the perception of depth. Also see Perspective.
Leica T is the compact camera developed by Leica Camera in 2014 as a touch-screen operated camera that can take the Leica L mount lenses made for this camera and the Leica SL and Leica CL. This camera series was names Leica TL later. See my article Compact Leica Cameras for more.
TTL
(T)hrough (T)he (L)ens light metering, usually WRT the flash metering capabilities built into the R6.2, R8, R9, M7 & M6TTL cameras.
V-Lux is a series of compact SLR-like digital cameras by Leica Camera AG developed with Panasonic since 2006, starting with the Leica V-Lux 1 (2006), V-Lux 2 (2010), V-Lux 3 (2011), V-Lux 4 (2012), V-Lux Typ 114 (2014), V-Lux 5 (2018). See my article "Compact Digital Leica Cameras".
To add confusion, Leica also made a Leica V-Lux 20 in 2010, V-Lux 30 in 2011 and a Leica V-Lux 40 in 2012 that was a temporarily renaming of the Leica C-Lux series.
Vario- is the Leica Camera AG name for zoom lenses. Vario-Elmarit, Vario-Elmar and Vario-Summicron and so on.
Ventilated shade on a 35mm of Elliott Erwitt's Leica MP camera.
Ventilated Shade - A shade is a hood in front of a lens that provides shade from light going straight onto the lens from outside what you are photographing, which could cause internal reflections like flare, which would make the picture less contrasty.
The ventilated shade has holes so it doesn't obstructs the view from the viewfinder. In many of today’s mirrorless cameras where there is no viewfinder looking ver the lens, so there is no actual need for a ventilated shade; but they are considered classic or vintage looking and are still in high demand. It makes no difference for the purpose of the shade (to create shadow) if it is ventilated or not.
Ventilated Shade for the Leica Q. I make ventilated shades for most lenses and sell them from here.
Viewfinder a device on a camera showing the field of view of the lens. Also known as the German word "Messucher" (or Meßsucher).
1) A built-in viewfinder in a camera that simply show the frame you get when you look through the viewfinder.
2) A rangefinder viewfinder which is also used to focus the lens. In Leica M cameras two pictures has to meet and lay 'on top of each other' for the picture to be in focus.
3) An external viewfinder, usually on top of the camera in the flash shoe, so as to show the field of view of lenses vider than what the built-in viewfinder can show (15mm, 21mm, 24mm, 28mm etc viewfinders exist)
4) Very simple "aiming-devices" on top of a camera that is simply a metal frame without any optics. Just a frame, as for example very old cameras (the original Leica), or when using cameras in diving where you can't look through the camera.
5) A Electronic Viewfinder (EVF) that shows what the sensor sees "live".
Visoflex
A device mounted between the Leica M camera and a lens, containing a mirror mechanism like in a SLR camera, thus allowing the M user to 'preview' a picture using a tele lens larger than 135mm which is the maximum covered by the framelines in the Leica viewfinder. In 2012 Leica made the electronic Visoflex for the Leica M240, which is an electronic viewfinder (see EVF in this list).
Leica Visoflex EVF2 electronic viewfinder.
You can also use the Olympus VF-2 which essentially is the same.
The Leitz VisoFlex came out in 1951 as a way to implement a mirror on a Leica M. The first version exist for screw mount lenses and M mount lenses.
Vulcanite
The black rubberized, textured material used to cover Leica camera bodies prior to the 1980s. It actually was made of vulcanised rubber (hence the name) and was and remains much loved by professionals because of its solid, sure grip.
WLAN = German short for WiFi. In camera menus, Leica may refer to WLAN, which is simply German for WiFi, (and for some reason they refuse to believe that the rest of the world doesn't call it for WLAN like they do). WLAN stands for wirelesslocal area network.
X1 - The Leica X1 was released in September 2009, the Leica X2 in 2012, and Leica X Typ 113 was released in September 2014, all with a fixed 23mm f/1.7 lens. Leica X Vario Typ 107 and Leica X-E Typ 102 was released later. A Leica X-U underwater edition was released in 2026. See my article Compact Leica Cameras for more.
Ø - Diameter. As in Ø49 for example which means that the filter diameter is 49mm for this lens (or if a filter is Ø49, it is 49mm in diameter and fits that Ø49 lens). Leica uses E to express their filters sizes, as in E49 for a 49mm filter size.
Index of Thorsten Overgaard's user review pages on Leica M9, Leica M9-P, Leica M-E, Leica M9 Monochrom, Leica M10, Leica M10-P, Leica M10-D, Leica M10-R, Leica M10 Monohcrom, Leica M11, Leica M 240, Leica M-D 262, Leica M Monochrom 246, Leica SL, Leica SL2, Leica SL2-S, as well as Leica TL2, Leica CL, Leica Q, Leica Q2 and Leica Q2 Monochrom:
Leica Digital Camera Reviews by Thorsten Overgaard
Thorsten von Overgaard is a Danish-American multiple award-winning photographer, known for his writings about photography and Leica cameras. He travels to more than 25 countries a year, photographing and teaching workshops to photographers. Some photos are available as signed editions via galleries or online. For specific photography needs, contact Thorsten Overgaard via email.
You can follow Thorsten Overgaard at his television channel magicoflight.tv.
I am in constant orbit teaching
Leica and photography workshops.
Most people prefer to explore a
new place when doing my workshop.
30% of my students are women.
35% of my students dotwo or more workshops.
95% are Leica users.
Age range is from 15 to 87 years
with the majority in the 30-55 range.
Skill level ranges from two weeks
to a lifetime of experience.
97% use a digital camera.
100% of my workshop graduates photograph more after a workshop.
Bokeh: The visual quality of the out-of-focus areas of a photographic image. Photo at Bar del Fico in Rome.
Leitz Summicron DR (Dual Range) f/2.0 (order no SOOIC-MN).
Digitized level gauge in a Leica M10-P. You tilt the camera up and down (front/back and left/right) till the level is completely straight.
