Leica 28mm Summilux-M ASPH f/1.4 ultra wide angle lens review
SIGN IN to Overgaard Academy on-line classes Subscribe for full access. It's free.           thorstenovergaard on Instagram Thosten von Overgaard on Facebook Thorsten von Overgaard on Twitter Thorsten von Overgaard on LinkedIn Thorsten von Overgaard on Flickr Thorsten Overgaard on YouTube Thorsten Overgaard video on Vimeo Thorsten von Overgaard on Leica Fotopark Thorsten von Overgaard on 500px
leica.overgaard.dk
Leica 28mm Summilux-M ASPH f/1.4 - Review and user report

The Leica 28mm Sillux Review by Thorsten Overgaard -Leica M10 with Leica 28mm Summilux-M ASPH f/1.4. © Thorsten Overgaard.




The Leica 28mm Summilux Review by Thorsten Overgaard

By: Thorsten Overgaard. June 29, 2015. Latest updated October 25, 2023.

Add to Flipboard Magazine.






Leica 28mm Summilux-M ASPH f/1.4 (Model 11 668)
Leica 28mm Summilux-Q ASPH f/1.7 (on the Leica Q3)
Leica 28mm Summicron-M ASPH f/2.0 (Model 11 672)
Leica 28mm Summicron-M ASPH f/2.0 Near Focus (11 618)
Leica 28mm Elmarit-M ASPH f/2.8 (model 11 677)
Leica 28mm Summaron-M f/5.6 (Model 11 695)
Leitz 28mm Hector f/6.3
Leica 28-90mm Vario-Elmarit ASPH f/2.0-2.4
Leica 28-70mm Vario-Elmarit-R ASPH f/2.8



An review and user report in progesss ...

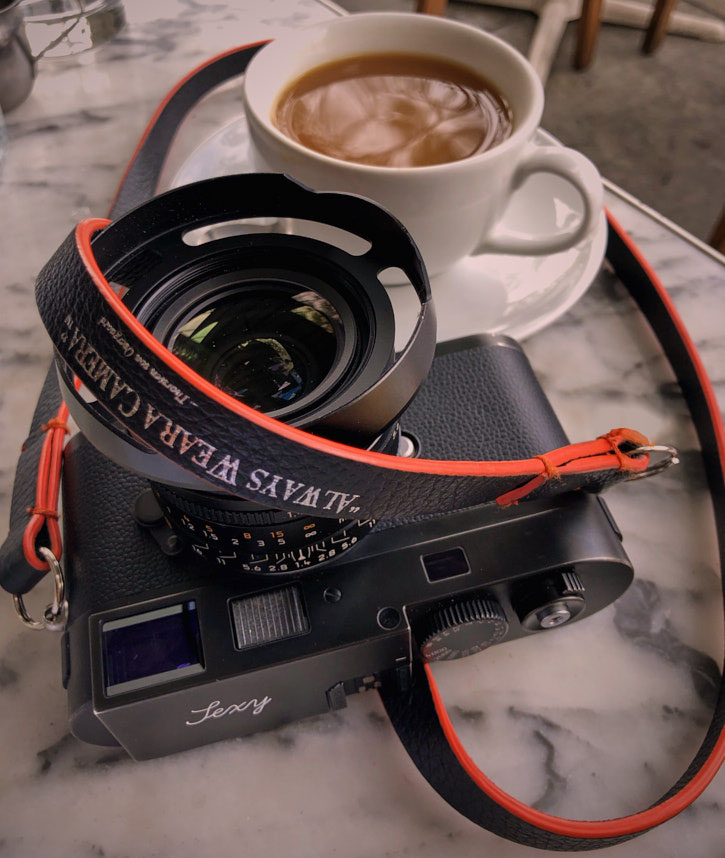

Leica M240 with the Leica 28mm Summilux-M ASPH f/1.4 and 2814OUS Ventilated Shade by Thorsten Overaard. Camera strap by Rock'n'Roll Camera Straps.
Leica M240 with the Leica 28mm Summilux-M ASPH f/1.4 and 2814OUS Ventilated Shade by Thorsten Overaard. Camera strap by Rock'n'Roll Camera Straps.



The Leica 28mm Summilux-M ASPH f/1.4 was announced on May 21, 2015 and started shipping in second half of 2015. My lens was produced in December 2014.

The 28mm lens for Leica M has been available since the Leitz 28mm Hektor f/6.3 came out in 1935 (model HOOPY) and has been regularly updated in 1946, and in 1955 with the 28mm Summaron f/5.6 (model SNOOX). The first "fast* 28mm was the Leica 28mm Elmarit Version I in 1965 which was updated in 1972 (version II), 1979 (Version III), 1992 (Version IV), 2006 (Version V) and 2016 (Version VI).



Doug E Fresh in his home studio in Harlem. Leica M240 with Leica 28mm Summilux-M ASPH f/1.4. © Thorsten von Overgaard.
Doug E Fresh in his home studio in Harlem. Leica M240 with Leica 28mm Summilux-M ASPH f/1.4. © Thorsten von Overgaard.



The first Leica 28mm Summicron-M ASPH f/2.0 saw available daylight in 2000 and was updated in 2016.

The very first real "fast" Leica 28mm lens is the Summilux-M ASPH f/1.4 that came out in 2015. It was hard to get for a while, but aroudn summer 2016 it is often in stock from Amazon or BH Photo.

In October 2016 Leica added the Leica 28mm Summaron-M f/5.6 to the lineup again (Model 11 695).



"Vesuvio Bakery" Leica M10 with Leica 28mm Summilux-M ASPH f/1.4. Click to read The Story Behind That Picture.
"Vesuvio Bakery" Leica M10 with Leica 28mm Summilux-M ASPH f/1.4. Click to read The Story Behind That Picture.



An upgrade of the Leica 28mm lens range

As of January 2016, the Leica 28mm Simmicron-M ASPH f/2.0 (11 672) and Leica 28mm Elmarit-M ASPH f/2.8 (11 677) have been released in new editions. Both have gotten the same slick lens shade as the Leica 28mm Summilux-M ASPH f/1.4 has (a rounder, stronger lens shade in metal that replaces the plastic lens hood they ued to have).

The flower store in New York. Leica M10 with Leica 28mm Summilux-M ASPH f/1.4. © Thorsten Overgaard.
The flower store in New York. Leica M10 with Leica 28mm Summilux-M ASPH f/1.4. © Thorsten Overgaard.



Sri Lankan actress Anarkalifor a magazine shoot. Leica M 240 with Leica M 28mm Summilux-M ASPH f/1.4. © 2015 Thorsten von Overgaard.
Sri Lankan actress Anarkalifor a magazine shoot. Leica M 240 with Leica M 28mm Summilux-M ASPH f/1.4. © 2015 Thorsten von Overgaard.




Bellgave Pl in Los Angeles. Leica M10-P with Leica 28mm Summilux-M ASPH f/1.4. © Thorsten Overgaard. Read The Story Behind That Picure
Bellgave Pl in Los Angeles. Leica M10-P with Leica 28mm Summilux-M ASPH f/1.4. © Thorsten Overgaard. Read The Story Behind That Picure



This marks an upgrade of the 28mm lenses so they all have similar design with Focus Tab and metal lens shade.

I shall get back to them in a later update as I interviewed Peter Karbe about the 28mm lenses some months ago. Sign up for my free newsletter (in the bottom of this page) to stay in the know about that.



Sunset Boulevard, Los Angeles, August 2015. Leica M 240 with Leica 28mm Summilux-M ASPH f/1.4. © 2015 Thorsten Overgaard. Lightroom 6 with 2010 Process.
Sunset Boulevard, Los Angeles, August 2015. Leica M 240 with Leica 28mm Summilux-M ASPH f/1.4
. © 2015 Thorsten Overgaard. Lightroom 6 with 2010 Process. © 2015-2016 Thorsten Overgaard.



The Leica 28mm Summilux-M ASPH f/1.4 is a high contrast wide angle lens with the same high performance as the Leica 35mm Summilux-M ASPH f/1.4 FLE (Floating Element), and in some respects it actually outperforms it.

It's a floating element lens. Distortion on the Leica 28mm Summilux-M ASPH f/1.4 is extremely low, 1.1% outwards bending ("pulvinate") which is so little is has no practical importance.



Glad to see a child using real paper and pen and not a device. Mad her three prints. Leica M Monochrom with Leica 28mm Summilux-M ASPH f/1.4. © Thorsten Overgaard.
Glad to see a child using real paper and pen and not a device. Made her three prints. Leica M Monochrom with Leica 28mm Summilux-M ASPH f/1.4. © Thorsten Overgaard.



Puch motor bike from the 1970's. Leica M 240 with Leica 28mm Summilux-M ASPH f/1.4. © 2015 Thorsten Overgaard. Lightroom 3 with 2010 Process, colors with Sekonic C-700 Color Meter.
Puch motor bike from the 1970's. Leica M 240 with Leica 28mm Summilux-M ASPH f/1.4. © 2015 Thorsten Overgaard. Lightroom 3 with 2010 Process, colors with Sekonic C-700 Color Meter.



The 28mm in Leica history

The 28mm lenses from Leica Camera AG traditionally has been of very high quality. I have speculated before if 28mm are very easy to make and if that could be the reason why Leica just make them very good, not matter the price.

The Leica 28mm Elmarit-M ASPH f/2.8 ($1,980) is an really outstanding lens, and the almost twice as expensive Leica 28mm Summicron-M ASPH f/2.0 [$3,780) is just a one stop better and offer the extra DOF (depth of field).



Leica M 240 with Leica 28mm Summilux-M ASPH f/1.4. © 2015 Thorsten Overgaard. Lightroom 3 with 2010 Process, colors with Sekonic C-700 Color Meter.
Leica M 240 with Leica 28mm Summilux-M ASPH f/1.4. © 2015 Thorsten Overgaard. Lightroom 3 with 2010 Process, colors with Sekonic C-700 Color Meter.



The new and even more expensive Leica 28mm Summilux-M ASPH f/1.4 ($5,959) it's too early to say much about. It's introduced but we're still waiting for them to be delivered (as of June 2015). Though Jono Slack did an article with samples based on the limited edition of the 28/1.4 that came out in May 2014.

The point I am making is that 28mm seems to be a lens format Leica has completely down how to make. Any of them are very good. Without having gone into much detail on the 28mm Summilux-Q ASPH f/1.7 on the Leica Q, I expect it to follow the family tradition of 28mm Leica lenses.



Leica M9 with Leica 28mm Elmarit-M ASPH f/2.8. © 2010-2015 Thorsten Overgaard.
Leica M9 with Leica 28mm Elmarit-M ASPH f/2.8. © 2010-2016 Thorsten Overgaard.



The 28mm on the Leica Digilux 2 was also very good, even it was a 28-90mm zoom f/2.0. Leica zoom lenses (except for the ones Minolta made for them in the 1980's) are known for being just as good at any focal length as the fixed focal length lenses.



My portrait of Former weapons inspector Dr. Hans Blix was made at 28-90mm f/2.0 at 28mm f/2.8 with the Leica Digilux 2. © 2007-2015 Thorsten Overgaard.
My portrait of Former weapons inspector Dr. Hans Blix was made at 28-90mm f/2.0 at 28mm f/2.8 with the Leica Digilux 2
. © 2007-2015 Thorsten Overgaard.






Buy the new eBook
"A Little Book on Photography"
by Thorsten von Overgaard





A Little Book on Photography by Thorsten von Overgaard eBook

Order now - Instant delivery.

More info

★ ★ ★ ★ ★ ★



It's a humorous understatement to call this
new eBook by Thorsten Overgaard for
"A Little Book on Photography".
It's a grand book, a history lesson, life experience, a biography and poetry book and brilliant photo book!
All in one beautiful package of 180 pages
to fire you up and get you to love
photography ... unconditionally!

"A Little Book on Photography"
eBook for computer, Kindle and iPad.
New release March 2017.
Intro price only $47 - 180 pages.




Buy Now

Add to Cart

Instant Delivery




View Cart




















Young lady attending a wedding in Aarhus, Denmark. Leica Q with Leica 28mm Summilux-Q ASPH f/1.7. (800 ISO, 1/6400, f/1.7 with B+W 3-stop ND filter. Converted to monochrom in Lightroom from the DNG file.).  © 2015 Thorsten Overgaard.
Young lady attending a wedding in Aarhus, Denmark. Leica Q with Leica 28mm Summilux-Q ASPH f/1.7. (800 ISO, 1/6400, f/1.7 with B+W 3-stop ND filter. Converted to monochrom in Lightroom from the DNG file.).
© 2015 Thorsten Overgaard.



One of the ideas of a f/1.4 super wide lens is to be able to use selective focus and get a nice blurred background ("bokeh"). You have to have a full-frane sensor and a wide open aperture to get the narrow DOF (depth of field). With a camera that has a smaller sensor, the DOF will be deeper and more (or all) will be in focus no matter how you do it. Leica M 240 with Leica 28mm Summilux-M ASPH f/1.4at f/1.4. © 2015 Thorsten Overgaard.
One of the ideas of a f/1.4 super wide lens is to be able to use selective focus and get a nice blurred background ("bokeh"). You have to have a full-frane sensor and a wide open aperture to get the narrow DOF (depth of field). With a camera that has a smaller sensor, the DOF will be deeper and more (or all) will be in focus no matter how you do it. Leica M 240 with Leica 28mm Summilux-M ASPH f/1.4at f/1.4. © 2015 Thorsten Overgaard.



The 28mm Summicron-M ASPH f/2.0 Near Focus (2023)

In October 2023 Leica released a new uniform-design version of the 28mm Summicron-M ASPH f/2.0 Near Focus. The uniform design refer to the lens being the same design and size as the earlier released new versions of the 35mm Summilux f/1.4 Ner Focus and the 50mm Summilux f/1.4 Near Focus.

The 28mm Summicron-M ASPH f/2.0 Near Focus (Model 11 618) lens on the Leica M11-P.
The 28mm Summicron-M ASPH f/2.0 Near Focus (Model 11 618) lens on the Leica M11-P.



Leica 28mm ventilated lens shades

I love ventilated lens shades, so I've made my own design of them for most of the Leica lenses. Have a look here which models goes with which 28mm Leica lens.

#new #ventilated #lens #hood #shade for the #28mm #Summilux by #leica #photographer #thorstenovergaard #cameraporn # vintage #fashion

A photo posted by Thorsten von Overgaard (@thorstenovergaard) on




Overgaard Workshop in Amsterdam. Leica M10 with Leica 28mm Summilux-M ASPH f/1.4. © Thorsten Overgaard.
Overgaard Workshop in Amsterdam. Leica M10 with Leica 28mm Summilux-M ASPH f/1.4. © Thorsten Overgaard.



Leica 28mm lens comparison (current models)


Leica 28mm lens comparison

  Leica 28mm
Summilux-M
ASPH f/1.4
Leica 28mm
Summicron-M
ASPH f/2.0
Leica 28mm
Elmarit-M
ASPH f/2.8
Leica 28mm
Summaron-M
f/5.6
Leica Q 28mm
Summilux-Q
ASPH f/1.7
Year Model 11 668
2015 -

Model 11 604
2000 - 2016
Model
11 672
2016 -

Model 11 606
2006 - 2016
Model 11 677
2016 -

2016 -

Model 11 695

2015 -
Focus Manuel Manuel Manuel Manuel AF and Manuel
Aperture f/1.4 - f/16 f/2.0 - f/16 f/2.8 - f/22 f/5.6 - f/22 f/1.4 - f/16
Mount M Bayonet M Bayonet M Bayonet M Bayonet Fixed on Leica Q
Closest distance 70 cm 70 cm 70 cm 100 cm 30 cm
Macro mode No No No No 15 - 30 cm
Weight 440g 270g 180g 165g 670g
including camera
Lens shade Included
(Metal screw)


(Snap-on plastic on model 11 604
or Leica ventilated
lens hood 12 466 fits the 11 604 model.
)

Metal screw hood on
model 11 672


(Snap-on plastic on model 11 606)

Metal screw hood on
model 11 677

Included
(Painted black brass square hood)
Included
(Metal screw)
Filter size 49mm 46mm 39mm 34mm 49mm
Lens cap Plastic Plastic Plastic   Metal
Price $5,959

Amazon
BH Photo

$3,995

Amazon
BH Photo

$2,195

Amazon
BH Photo
$2,495

Amazon
BH Photo
$4,250
including camera
Amazon
BH Photo



Leica M240 with the Leica 28mm Summilux-M ASPH f/1.4 and 2814OUS Ventilated Shadeby Thorsten Overaard. "Hendrix" camera strap by Rock'n'Roll Camera Straps.
Leica M240 with the Leica 28mm Summilux-M ASPH f/1.4 and 2814OUS Ventilated Shadeby Thorsten Overaard. "Hendrix" camera strap by Rock'n'Roll Camera Straps.





Landscape photography with 28mm and polarizer filter

The 28mm traditionally is a good lens for landscape photography.

A polarizer filter is used to remove the bluish haze you see in the air and which usually blur out distant subjects like mountains and buildings. A polarizer filter is also used to reduce or remove reflections in windows and any reflective surface like screens, cars, bottles, etc.

When you rotate the filter, the reduction of light rays change and the reflections are reduced gradually.

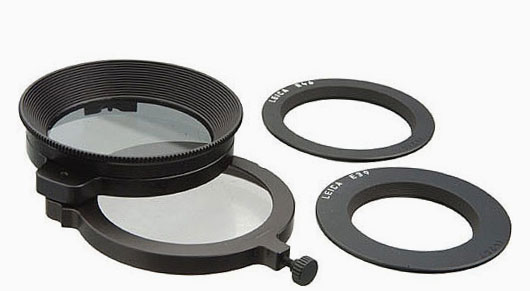

Leica Universal Top (Linear) Polarizer Glass Filter. This one is made so you can swing up the filter to see through a traditional viewfinder how the effect till be. You will need the 49mm adapter as well.
Leica Universal Top (Linear) Polarizer Glass Filter. This one is made so you can swing up the filter to see through a traditional viewfinder how the effect till be. You will need the 49mm adapter as well.




My daughter Robin Isabella in New York. Leica M10 with Leica 28mm Summilux-M ASPH f/1.4. © Thorsten Overgaard.
My daughter Robin Isabella in New York. Leica M10 with Leica 28mm Summilux-M ASPH f/1.4. © Thorsten Overgaard.


The Polarizer Glass Filter for M lenses is a good fit if you want to use the filter for other lenses as well. The filter comes with a 46mm and 39mm ring, and then you have to remember to buy the 49mm adapter ring (Leica No 14218) as well to be able to use it with the 28mm Summilux-M ASPH f/1.4.

If you only want to use a polarizer filter on the 28mm Summilux-M ASPH f/1.4, you just need to look for any brand 49mm filter which of course will cost less than the kit above (from $50 to $100). B+W makes a high transmission Polarizer that is interesting sa well.





Young skater at Godsbanen in Aarhus, Denmark. Leica M 240 with Leica 28mm Summilux-M ASPH f/1.4at f/1.4. © 2015-2016 Thorsten Overgaard.Young skater at Godsbanen in Aarhus, Denmark. Leica M 240 with Leica 28mm Summilux-M ASPH f/1.4 at f/1.4. © 2015-2016 Thorsten Overgaard.



Leica M10 with Leica 28mm Summilux-M ASPH f/1.4. © Thorsten Overgaard.
Leica M10 with Leica 28mm Summilux-M ASPH f/1.4. © Thorsten Overgaard.



The 28mm Summaron-M f/5.6 classic lens - again

Leica spent some time in 2015 and 2016 completing the lineup of 28mm lenses. The Leica Q lens, the f/1.4, and then the f/2.0 and the f/2.8 both came out in updated design.

The final part of the puzzle is the revival of this 1955-lens in October 2016, the Leica 28mm Summaron-M f/5.6. The idea is that a f/5.6 wide angle lens has so much sharpness at f/5.6 that you basically just have to frame and press the shutter.



New York. Leica M10 with Leica 28mm Summilux-M ASPH f/1.4. © Thorsten Overgaard.
New York. Leica M10 with Leica 28mm Summilux-M ASPH f/1.4. © Thorsten Overgaard.




  New eBook from Thorsten Overgaard:

"The Portrait Book
– How to Make People Look Beautiful"




"Love the book.
Very insightful and very well done"

"You are my favorite author"



Questions answered in this new eBook:
- What’s the secret behind Mona Lisa?
- How do you make anybody look beautiful?
- What is the right timing for portraits?
- What do you say to the people?
- How to photograph your spouse?
- How to edit portraits?
- What is the one right thing in all portraits?
- How to do research for portraits?
- What is the secret to light in portraits?
- Which lens to use for portraits?
- What is the composition rules for portraits?
- How to photograph children?
- Who should I photograph?
- How to do street portraits?
- and more...

Buy Now. Instant Delivery.
Only $298.00
578 pages.
Released April 5, 2020

Add to Cart   View Cart

  #1905-0119   100% satisfaction or money back.



Moreover, it's a superior piece of design, so even if you don't hit the streets, it's a fine lens to own.

The original Leica 28mm Summaron-M f/5.6 was reviewed in Leica Fotografie Interntational 2/1957 by David Seymour "Chim" (1911-1956).

"New glasses have replaced the older ones and this has brought a small change in the radii of the surfaces, but all in all, the performance of the lens may be described as vintage." - Erwin Puts

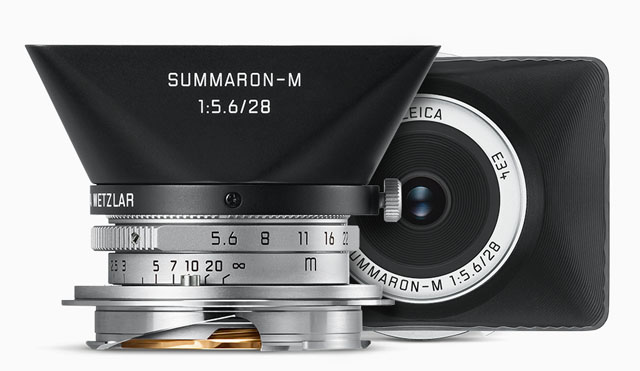

The Leica 28mm Summaron-M f/5.6 (released October 2016).
The Leica 28mm Summaron-M f/5.6 (released October 2016).
Price is $2,495.00.

The lens shade for the Leica 28mm Summaron-M f/5.6 is made of black painted brass.
The lens shade for the Leica 28mm Summaron-M f/5.6 is made of black painted brass. The original one from 1955 is model SOOBK 12500 which sells at $500-$700 on eBay (and the original 1955-lens you would also need; that one is usually around $1,000 without shade).

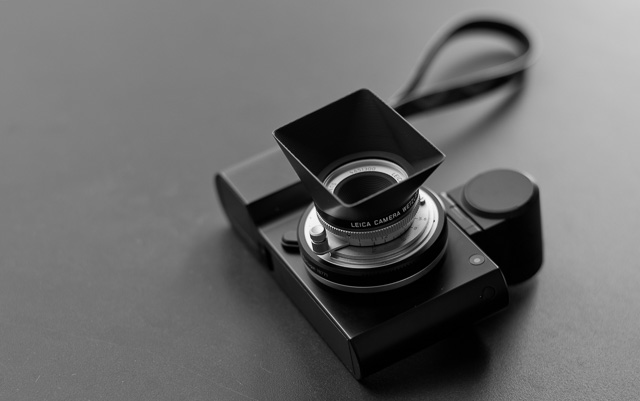

Leica 28mm Summaron-M f/5.6 on the Lecia TL2 via M-to-T Adapter. © Thorsten Overgaard.
Leica 28mm Summaron-M f/5.6 on the Lecia TL2 via M-to-T Adapter. © Thorsten Overgaard.



Reviews of the Leica 28mm Summaron:

Reidreviews: "Leica 28mm Summaron-M review" (as of October 2016)
LEICAGRAPHY by Erwin Puts: "Leica 28 mm lenses for rangefinder cameras, part 1" on the 28mm Summaron and 28mm Summilux, etc. (as of November 2016)
Reidreviews: "Full studio comparison test of the Leica 28/5.6 M Summaron, Cosina Voigtlander 28/3.5 Color Skopar, Leica 28/2.8 Elmarit ASPH (pre-2016) and Canon 28/2.8 LTM" (as of November 18, 2016).

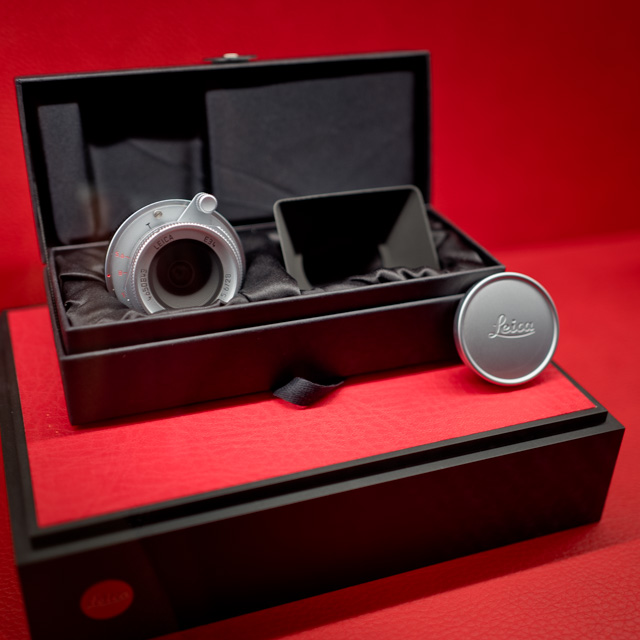

The Leica 28mm Summaron-M f/5.6 box set as it arrives (2016-model).
The Leica 28mm Summaron-M f/5.6 box set as it arrives (2016-model).



Original Leica 28mm Summaron-M f/5.6

The original "real vintage" 28mm Summaron-M is still available on eBay and in Leica second-hand stores. The price is usually around $1,000, and the lens shade is often $600 - $800. Here's how it looks:

The original Leica 28mm Summaron-M f/5.6 has a very soft look (above), whereas the new 28mm has improved and uopdated optics that shows very good contrast, details and colors.
The original Leica 28mm Summaron-M f/5.6 has a very soft look (above), whereas the new 28mm has improved and uopdated optics that shows very good contrast, details and colors.



28mm framelines

The Leica 28mm lenses can be used on most Leica M cameras and the whole 28mm area will be visible in the viewfinder, and there will be framelines showing the edges of the frame.

Most of the Leica M cameras have 28mm framelines built-in into the viewfinder. That is Leica M 240, Leica M 246, Leica M Monochrom, Leica M9, Leica MM, Leica M-E and the Leica models that doesn't have the 0.85 viewfinder: Leica M7, Leica M6 TTL, Leica M6, Leica M4-P (from serial 2.411.001). The Leica M3 doesn't have this but can be fitted with one by Leica Camera AG. Yes, you read right: You can send in your 1950's Leica M3 and get it updated with a new viewfinder.



New York. Leica M10 with Leica 28mm Summilux-M ASPH f/1.4. © Thorsten Overgaard.
New York. Leica M10 with Leica 28mm Summilux-M ASPH f/1.4. © Thorsten Overgaard.



For the Leica M8 and Leica M8.2 which have a cropped sensor, the 28mm acts like a 35mm lens.For those you should use the Leica UV/IR filter E49 (13 412).

External viewfinders can be used, either optical or the EVF-2 electronic viewfinder that fits the Leica M 240, Including Leica M-P 240 and Leica M 60) and Leica M 246.





1800's interior in Den Gamle By. Leica Q. 800 ISO, f/1.7, 1/1000 second. © 2015-2016 Thorsten Overgaard.
1800's interior in Den Gamle By. Leica Q. 800 ISO, f/1.7, 1/1000 second. © 2015-2016 Thorsten Overgaard.



Comparing the
Leica 28mm Summilux-Q ASPH f/1.7 on the Leica Q and the
Leica 28mm Summilux-M ASPH f/1.4 on the Leica M 240

I've compared the 28mm lens on the Leica Q a little with the Leica 28mm Summilux-M ASPH f/1.4 on the Leica M 240. I will be doing more as part of my 28mm article that will expand over August to October (using the Leica M 240 and the Leica M 246).



1. Comparing white balance settings:

I've had a few problems with the white balance in Kelvin because the two cameras aparantly doesn't use the same Kelvin scale, or doesn't respond to it the same way.

You should think that if you establish the white balance in Kelvin, you can just punch it in the numbers and both images will be the same colors. Not so. Here is the two camera files with the same Kelvin number. (This makes use of external Color Meter a little tricky, which was one of the things I was testing that day as well).

Q

The full frame of the Leica 28mm Summilux-Q ASPH f/1.7 on the Leica Q



M

The full frame of the 28mm Summilux-M ASPH f/1.4 on the Leica M 240

The full frame of the Leica 28mm Summilux-Q ASPH f/1.7 on the Leica Q   The full frame of the 28mm Summilux-M ASPH f/1.4 on the Leica M 240
Both images set to Kelvin 4100 - Now, that was a surprise!



2. Comparing size of frame:

I can say that the Leica Q has a wider 28mm frame than the Leica m 240. There is no doubt about that. If the 28mm M lens is a 28mm, the 28mm Q lens might be more like a 24mm or 26mm.

Q

The full frame of the Leica 28mm Summilux-Q ASPH f/1.7 on the Leica Q



M

The full frame of the 28mm Summilux-M ASPH f/1.4 on the Leica M 240

The full frame of the Leica 28mm Summilux-Q ASPH f/1.7 on the Leica Q   The full frame of the 28mm Summilux-M ASPH f/1.4 on the Leica M 240
The staight out of the camera Auto White balance files (Leica Q is 5950 K, Leica M is 5350)



3. Comparing the images:

These are my edited files as I would normally edit them. It is easy to see that the Leica Q has very even distribution of the light and no dark corners. In this case it might look as a good quality.

I am sure we will doubt what we like the best when we start looking at prople, skin, eyes and other things than a simple room. If you want to start thinking about it, look at the window and the defition of the frame, shadows and curtain.

The Leica Q comes with a built-in correction of the file (which corrects for dark corners and adjust the iamge to be straighter), the Leica 28mm Summilux-M ASPH f/1.4 doesn't have a profile in Adobe Lightroom yet.

Q

The full frame of the
Leica 28mm Summilux-Q ASPH f/1.7 on the Leica Q



M

The full frame of the
28mm Summilux-M ASPH f/1.4 on the Leica M 240

The full frame of the
Leica 28mm Summilux-Q ASPH f/1.7 on the Leica Q   The full frame of the
28mm Summilux-M ASPH f/1.4 on the Leica M 240




4. Comparing the depth of field:

I can say that the Leica Q has a wider 28mm frame than the Leica m 240. There is no doubt about that. If the 28mm M lens is a 28mm, the 28mm Q lens might be more like a 24mm or 26mm.

Q

Crop of the scene from the
Leica 28mm Summilux-Q ASPH f/1.7 on the Leica Q



M

Crop of the scene from the
28mm Summilux-M ASPH f/1.4 on the Leica M 240

Crop of the scene from the
Leica 28mm Summilux-Q ASPH f/1.7 on the Leica Q   Crop of the scene from the
28mm Summilux-M ASPH f/1.4 on the Leica M 240
The staight out of the camera auto white balance files

This is how far I will go so far with comparing the two. The Leica Summilux-M ASPH f/1.4 is a wonderful lens. A masterpiece I would say, and will get back to why it is so when I have worked with it for a longer time.

This photo is of a simple room with fairly soft light. It doesn't include people or real use of DOF (depth of field) which would be one of the reasons to get a Summilux lens.



Conclusion

What I would conclude so far is that the Leica Q is a very straight-forward and easy way to get the 28mm quality with straight lines, ease of use, even and bright from corner to corner, and without much trouble in regards to fringing.

I've started posting a few pictures already in my Leica 28mm Summilux-M ASPH f/1.4 article.



1800's interior. Leica M 240 with Leica 28mm Summilux-M ASPH f/1.4. 800 ISO, f/1.4, 1/500 second. © 2015-2016 Thorsten Overgaard.
1800's interior. Leica M 240 with Leica 28mm Summilux-M ASPH f/1.4. 800 ISO, f/1.4, 1/500 second. © 2015-2016 Thorsten Overgaard.



Leica M 240 with Leica 28mm Summilux-M ASPH f/1.4. 800 ISO, f/1.4, 1/250 second. © 2015 Thorsten Overgaard. Below is the same photo made with Leica Q: Leica M 240 with Leica 28mm Summilux-M ASPH f/1.4. 800 ISO, f/1.4, 1/250 second. © 2015-2016 Thorsten Overgaard. Below is the same photo made with Leica Q:



Leica Q with Leica 28mm Summilux-Q ASPH f/1.7 test photos by Thorsten Overgaard
Leica Q. 800 ISO, f/1.7, 1/250 second. © 2015-2016 Thorsten Overgaard.



Leica M Monochrom with the Leica 28mm Summilux-M ASPH f/1.4 and 2814OUS Ventilated Shade by Thorsten Overaard, and the "Always Wear a Camera" strap "Yosemite" by Thorsten Overgaard.
Leica M Monochrom with the Leica 28mm Summilux-M ASPH f/1.4 and 2814OUS Ventilated Shade by Thorsten Overaard, and the "Always Wear a Camera" strap "Yosemite" by Thorsten Overgaard.






Buy this New eBook by Thorsten Overgaard
"The Moment of Emotional Impact in Photography"



  Finding the Magiv of Light by Thorsten Overgaard

★ ★ ★ ★ ★ ★

"It was visually and philosophically beautiful!"

"I think you have observed and found a very unique and exceptional explanation of what makes somebody produce memorable photographs."

"Inspiring book!!!"

"The Moment of Emotional Impact
in Photography"
eBook for computer and iPad.
(48 pages)
Only $38

Add to Cart

View Cart

Order now - Instant delivery.







Hollywood, August 2015. Leica M 246 with Leica 28mm Summilux-M ASPH f/1.4. 6400 ISO.
Hollywood, August 2015. Leica M 246 with Leica 28mm Summilux-M ASPH f/1.4. 6400 ISO.




Late night shootout with Irwin and Meen. Leica M10 with Leica 28mm Summilux-M ASPH f/1.4. © Thorsten Overgaard.
Late night shootout with Irwin and Meen. Leica M10 with Leica 28mm Summilux-M ASPH f/1.4. © Thorsten Overgaard.





Purple fringing

Purple fringing is - as far as I know - an existing problem with modern sharp lenses that hasn't been APO-corrected. Purple fringing is a problem in that sharpness of the lens and the detail of the sensor add more purple fringing than was the case with film and (less sharp) lenses.

It exist where there is high contrast from (over-)exposed areas of white on an edge. In Adobe Lightroom Color Fringe Correction Controls were introduced in Lightroom 4.1, so in Lightroom 6 you can correct for purple fringing, and in the examples below I have edited the same image without de-fringing in Lightroom 3, and then with fringing in Lightroom 6 (see the window details to the left). Notice that also the purple flowers on the table have been "de-purple-ized".

Here is an Abode article about fringing and the tools to remove it.


Lightroom 3 without defringe (Process 2010): Tourists from Taipei, Taiwan visits The Old Town in Aarhus, Denmark where actors are in character as original 1864 citizens of the city. Leica M 240 with Leica 28mm Summilux-M ASPH f/1.4. 1600 ISO at f/1.4, 1/180 second. © 2015 Thorsten Overgaard. Colors with Sekonic C-700 Color Meter.
Lightroom 3 without defringe (Process 2010): Tourists from Taipei, Taiwan visits The Old Town in Aarhus, Denmark where actors are in character as original 1864 citizens of the city. Leica M 240 with Leica 28mm Summilux-M ASPH f/1.4
. 1600 ISO at f/1.4, 1/180 second. © 2015 Thorsten Overgaard. Colors with Sekonic C-700 Color Meter.



Lightroom 6 with defringe (Process 2010): Tourists from Taipei, Taiwan visits The Old Town in Aarhus, Denmark where actors are in character as original 1984 citizens of the city. Leica M 240 with Leica 28mm Summilux-M ASPH f/1.4. 1600 ISO at f/1.4, 1/180 second. © 2015 Thorsten Overgaard. Colors with Sekonic C-700 Color Meter.
Lightroom 6 with defringe (Process 2010): Tourists from Taipei, Taiwan visits The Old Town in Aarhus, Denmark where actors are in character as original 1984 citizens of the city. Leica M 240 with Leica 28mm Summilux-M ASPH f/1.4. 1600 ISO at f/1.4, 1/180 second. © 2015 Thorsten Overgaard. Colors with Sekonic C-700 Color Meter.







Get my Leica Presets
for Lightroom and Capture One






Overgaard's Leica Presets  for Lightroom CC Classic

Overgaard's Leica Presets for: Lightroom CC Classic (7.4 -->)
Lightroom CC (version 1 through 7.2)
Lightroom CC (cloud-based 1.0)

I have made a few essential Presets for Lightroom which do minor adjustments to the Leica files, so as to get the tones exactly how I want them.

The Presets have as their ideal, the Leica M9 sensor, as well as the Kodachrome film (which also happens to be the ideal for Leica, when they developed the Leica M9 sensor). Not that it matters much, but that is the reason why I made my own Presets: To get the that look, rather than a “digital sensor look”.

More info

Buy now. Instant delivery.
#1818-0818

$48.00



Overgaard's Leica Presets  for Capture One Pro

Overgaard's Leica Presets
for Capture One Pro

I have made a few essential Styles for Capture One that does minor adjustments to the Leica files, so as to get the tones exactly how I want them.

The Styles have as their ideal, the Leica M9 sensor, as well as the Kodachrome film (which also happens to be the ideal for Leica, when they developed the Leica M9 sensor). Not that it matters much, but that is the reason why I made my own Styles: To get the that look, rather than a “digital sensor look”.



More info

Buy now. Instant delivery.
#1817-0818

$48.00


  Add to Cart
  Add to Cart
  Read more about my Lightroom Workflow on this page   Read more about my Capture One Workflow on this page






My mothers Rose Garden in Denmark. Leica M 240 with Leica 28mm Summilux-M ASPH f/1.4. © 2015 Thorsten Overgaard.
My mothers Rose Garden in Denmark. Leica M 240 with Leica 28mm Summilux-M ASPH f/1.4. © 2015 Thorsten Overgaard.



The first Leica 28mm lens

The Leitz 28mm Hector f/6.3 that came out in 1935 in black and chrome for the Leica IIIa was the first ever Leica 28mm lens that came out. Since then Leica have made quire a few 28mm lenses. Below is a comparison of the current Leica 28mm lenses.

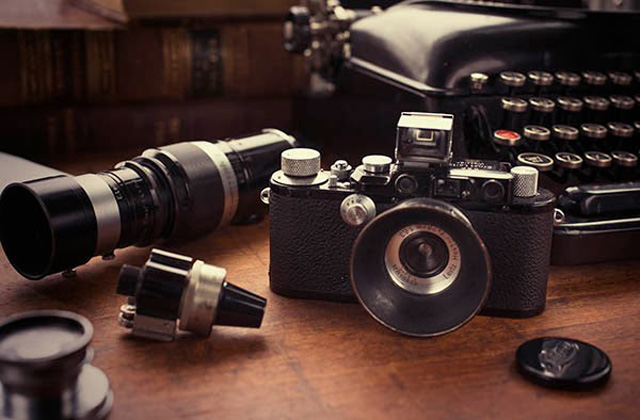

Photo by Tom Gill: A Leica IIIc 1938 with the 28mm Hektor f/6.3, the first Leica 28mm lens.
Photo by Tom Gill: A Leica IIIc 1938 with the 28mm Hektor f/6.3, the first Leica 28mm lens.





A Life With Leica from Northpass Media.





The Leica 28mm Summilux-M ASPH f/1.4 has a fairly good size. It doesn't feel large.
The Leica 28mm Summilux-M ASPH f/1.4 has a fairly good size. It doesn't feel large.

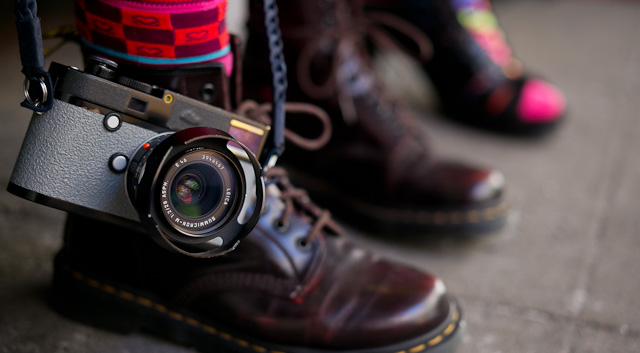

Here is Birgit Krippner's Leica M240 with 28mm Summicron-M ASPH f/2.0 and the ventilated Leica lens shade 12 466 (see below). The leather is Griptac Medium Grey.
Here is Birgit Krippner's Leica M240 with 28mm Summicron-M ASPH f/2.0 and the ventilated Leica lens shade 12 466 (see below). The leather is Griptac Medium Grey.



The matte black Leica 28mm Summicron ASPH f/2.0 Review

Video review of the limited edition (2022)





The sexy shade for the previus 28mm Elmarit and the current 28mm Summicron ASPH

  Leica lens hood 12 466
  Leica lens hood 12 466 for the current Leica 28mm Summicron, the previous 28mm Elmarit and the previus (1994-2010) 35mm Summilux-M ASPH


Don't ask why, but in 2011 Leica designed this mother of all lens shades for the older Leica 35mm Summilux-M ASPH f/1.4 at the same times as they introduced the new 35mm FLE (FLoating Elements). So the lens shade didn't fir the new lens, but only the old one.

The good thing is that it also fits the current 28mm Summicron-M ASPH f/2.0 [11604] and the previous 28mm Elmarit-M f/2.8 [11809] .

It's the sort of thing everybody thinks is overpriced - €350 - yet love when they have gotten it.

In all fairness it's not just a piece of metal but does have some moving mechanical parts inside enabling it to be mounted as a clip-on shade.

And to justify the purchase further, an old half-beaten-up ventilated lens shade for the 50mm or 35mm lens from the 60's easily runs up in $200.



Leica lens hood 12 466 Leica lens hood 12 466 on the 1994-2010 35mm Summilux-M ASPH edition. Leica M9-P silver and Gordy's Camera Staps.



A retro-moment as a Danish guy departs for a music festival on his 1970's PUCH Maxi in July 2015. It's actually in Hjemensgade in Aarhus where I used to go to school (the buildings to the right in the picutre).  Leica M 246 with Leica 28mm Summilux-M ASPH f/1.4. © 2015 Thorsten Overgaard.
A retro-moment as a Danish guy departs for a music festival on his 1970's PUCH Maxi in July 2015. It's actually in Hjemensgade in Aarhus where I used to go to school (the buildings to the right in the picutre).
Leica M 246 with Leica 28mm Summilux-M ASPH f/1.4. © 2015 Thorsten Overgaard.



Using the Leica M electronic "Spirit Level" to get straight lines

For 28mm and other super wide lenses it may be of use to press the INFO button till the Gyroscope or "Spirit Level" comes up on the screen.

It works on an X-axis to get the sensor upright (avoid falling lines) and keeling the camera (buttom) vertical as well (avoid tilted photos).

It has a long horizontal like and a short vertical line: When the long vertical is in center and lights green, the camera is balanced so the sensor is 100% upright vertical.

When the short vertical line is in center og the screen and lights green, the camera is balanced vertical so the bottom plate of the camera is completely hotizontal.

It's quite a task getting both points crossing and green when handheld (but it can be done). Much easier on a tripod.



All vertical lines are straight here because the camera is 100% balanced. Leica M 240 with Leica 28mm Summilux-M ASPH f/1.4. © 2015 Thorsten Overgaard.
All vertical lines are straight here because the camera is 100% balanced. Leica M 240 with Leica 28mm Summilux-M ASPH f/1.4. © 2015 Thorsten Overgaard.



The third element in getting a photograph completely aligned would be that you are in the exact center of the street, a room or so.

If you imagine a laser beam going out shtough the lens, that laser line must be going 100% horizontal, and will hit the center of the scene. And the camea must be level as well (the bottom plate so the image doesn't tilt).



This one is taken from the center. If I had been standing to the right, I would have turned the camera to capture the whole scene and the (horizontal) lines would have tilted. Leica M 240 with Leica 28mm Summilux-M ASPH f/1.4. © 2015 Thorsten Overgaard.This one is taken from the center. If I had been standing to the right, I would have turned the camera to capture the whole scene and the (horizontal) lines would have tilted. Leica M 240 with Leica 28mm Summilux-M ASPH f/1.4. © 2015 Thorsten Overgaard.



What I mean with being center is that you cannot be to the left of a building (or under a tall building) and then "tilt" the camera so as to get the whole building. You have to imagine that "laser line" going through the center of the subject. This is why you wither have to get up higher to take a photo of a tall building, and why you have to move to the center front of a street to get it completely straight.



Straight lines vs. not straight lines:







Denmark in July, 2014. Leica M 246 with Leica 28mm Summilux-M ASPH f/1.4.  © 2015 Thorsten Overgaard.   Denmark in July, 2014. Leica M 246 with Leica 28mm Summilux-M ASPH f/1.4.  © 2015 Thorsten Overgaard.
Denmark in July, 2014. Leica M 246 with Leica 28mm Summilux-M ASPH f/1.4.
© 2015 Thorsten Overgaard.



It's easier to see in this one what it does to the lines in the picture:


Denmark in July, 2014. Leica M 246 with Leica 28mm Summilux-M ASPH f/1.4.  © 2015 Thorsten Overgaard.   Denmark in July, 2014. Leica M 246 with Leica 28mm Summilux-M ASPH f/1.4.  © 2015 Thorsten Overgaard.
Denmark in July, 2014. Leica M 246 with Leica 28mm Summilux-M ASPH f/1.4.
© 2015 Thorsten Overgaard.





NEW VERSION 11.3







Buy Now. Instant delivery.

New Version 11.3

ONLY $698.00

Add to Cart


Now includes
4+ hours of
video tutorials.

100% satisfaction
or 100% refund.
More info.


  #2130-1121-3




Update to Version 11.3

Apply code "UPDATE113" on checkout to get this complete version 11.3 update.

$298.00

Add to Cart

Updates all previous Surival Kit versions since 2009.




Buy the complete new
Lightroom Survival Kit 11.3
The Legendary Tutorial for Photographers

Brand-new JUNE 2022-version.
Now with brand-new 4+ hours of video tutorials.
New sections on compostition and storytelling.
How to edit color photos.
How to edit black & white photos.

How to do keywords logical and easy.

The most successful photo editing kit ever

Photographer Thorsten Overgaard first released the Lightroom Survival Kit in 2009 and have honed it with new and fresh updates. This Version 11 is the most radical updated and renewed version ever, four years in the making.

Thorsten von Overgaard editing on Eizo
Professional workflow experience made simple, logical and easy to use.

Master editor makes it simple to understand

The Survival Kit is unique and one-of-a-kind being made for photographers for photographers. When someone understands their subject, they can explain it so it is easy to understand. The hallmark of Thorsten Overgaard is to make expert knowledge shown and told in a way so anyone can apply it.

Hands-on advice that works

With a 450 pages workbook and 4+ hours of video, every element of digital photography is touched on, in handy chapters and pre-flight checklists. Editing of color vs black and white photos, keywording, cropping of images, fine-tuning of tones, color balance and color control, export of originals, printing, archiving and backup, and much more.

Comes with the Overgaard Leica Presets (Value $48)

The Lightroom Survival Kit comes with Thorsten Overgaard's special-made Lightroom Presets for all digital cameras and for Leica digital cameras.

Understand all from camera to the final print

Chapters in this version goes over the background for High Dynamic Range (HDR), digital raw files and how to set up a professional photography workflow, from calibrating the screen to editing in Lightroom, and to making a final print. And more ...

10+ years experience in one package

No need to spend years figuring out the smartest way to do things when you can tap into the best way of doing things right here. The workflow of Thorsten Overgaard as been refined through years of field work with more than a thousand workshop attendees.

This method of workflow now used by thousands

The Survival Kit has been taught to thousands in workshops and in this Survival Kit. What does it do? It make you enjoy taking and making photos, and it increases your production considerabely. Most important of all, it'll give you back ownership of your files (which you will understand why is so important, once you have bought the Survival Kit and started applying its methods).




"Thorsten's methodology is perhaps not what hardware-, software- and cloud-companies want us to do, but as a former IT engineer I can only acknowledge his views about preserving our digital heritage. This workflow explained is for me the best I have ever seen".

★★★★★




Video tutorials, image files, presets, checklists, definitions, tutorials of Lightroom, that boils down years of experience to a workflow you can implement in less than one day.

  Start working in minutes.


















A couple playing volleyball in the Danish summer evening. Leica M 240 with Leica 28mm Summilux-M ASPH f/1.4at f/1.4. © 2015 Thorsten Overgaard.
A couple playing volleyball in the Danish summer evening. Leica M 240 with Leica 28mm Summilux-M ASPH f/1.4at f/1.4. © 2015 Thorsten Overgaard.



Leica M10 with Leica 28mm Summilux-M ASPH f/1.4. © Thorsten Overgaard.
Leica M10 with Leica 28mm Summilux-M ASPH f/1.4. © Thorsten Overgaard.



The "Leica Glow" and the Leica philosophy on lenses

The "Leica Glow" is something you hear spoken about from time to time. When you use Leica every day, you don't notice it that much. If you use other lenses and then see a Leica photo, most people clearly notice that something is "glowing".

I can't recall that Leica Camera AG ever have described what this might be.



Election night in Denmark, June 2015. Leica Q, 800 ISO, f/1.7, 1/2000 second. © 2015 Thorsten Overgaard.
Election night in Denmark, June 2015. Leica Q, 800 ISO, f/1.7, 1/2000 second. © 2015 Thorsten Overgaard.



I have one explanation that I usually give: When I was scanning slide film photos for a book some years ago, I used a Nikon scanner ($1,200) and a Imacon scanner ($14,000). I used the Nikon for the less important ones as it would scan images in less than a minute. The Imacon I used for the images I really wanted to sing, because the Imacon takes 8 minutes to scan one image.

Same size of scan, different scanners. Imacon has been known for making the worlds best scanners and still does (they were bought by Hasselblad some years ago).

I decided to test the quality, so I did a scan of the same image on both scanners. When I zoomed in to 100% I was horrified: The Nikon scanning was sharper than the Imacon scan!



Leica M 240 with Leica 28mm Summilux-M ASPH f/1.4. © 2015 Thorsten Overgaard. Lightroom 3 with 2010 Process, colors with Sekonic C-700 Color Meter.
Leica M 240 with Leica 28mm Summilux-M ASPH f/1.4. © 2015 Thorsten Overgaard. Lightroom 3 with 2010 Process, colors with Sekonic C-700 Color Meter.



But then when I zoomed out to a larger potion of the image, the Imacon suddenly appeared sharper, more alive and more 3D. Fresh, I would say. And when I zoomed out to the actual size of the image on the screen, the Imacon was so much more alive, sharper, better colors and more sparkling details.

Imacon and Leica are the only two optics/photography companies where I have seen this "philosophy" on light rays. If I look at a Zeiss image, I see extreme sharpness but an overall dead image. For me, that is optics designed by a computer. What I think distinguish Leica and Imacon is that some human make decisions on the road to the final design.

A computer can figure out the sharpest lens, but only a human can figure out a lens that makes things look alive.



Leica Q with 28mm Summilux f/1.7 (
Leica Q with 28mm Summilux f/1.7 (100 ISO, f/17, 1/1000). © Thorsten Overgaard.



This might be a accurate, or less accurate description of the phenomena. If you are into Leica lenses, you know of the Mandler era: That is lenses designed by Dr. Walter Mandler who worked at Leica Camera AG and who's lens designs are characterized by a soft look, but at the same time very detailed. He did the 75/1.4, the 50/2 version II, the Noctilux f/1.0 and many more lenses. If you said his lenses didn't focus on sharp edges, but on many details, you would be on the right track.



Leica M 240 with Leica 28mm Summilux-M ASPH f/1.4. © 2015 Thorsten Overgaard. Lightroom 3 with 2010 Process, colors with Sekonic C-700 Color Meter.
Leica M 240 with Leica 28mm Summilux-M ASPH f/1.4. © 2015 Thorsten Overgaard. Lightroom 3 with 2010 Process, colors with Sekonic C-700 Color Meter.



Since then, Peter Karbe has taken over and is the one in charge of the design of Leica lenses these days. The new lenses has much more control of micro-details, light-rays and the overall result is higher contrast, more accurate colors and an overall apparent sharpness. One other thing that distinguish Leica lenses from other brands is that they cut no corners in lens design and production. This is why - surprisingly - new lens designs are better than older ones. "They don't build them as in the old days" is true for many things in life, but not for Leica lenses.


Leica M246 Monochrom with Leica 28mm Summilux-M ASPH f/1.4. © Thorsten Overgaard.
Leica M246 Monochrom with Leica 28mm Summilux-M ASPH f/1.4. © Thorsten Overgaard.



Sharpness is not a sharp edge, but is perceived sharpness; meaning that the idea that something is sharp and detailed due to the light conditions. It comes down to the control of light rays (Red, Green and Blue) and how they meet on the sensor plane.



Leica Q with 28mm Summilux f/1.7 (
Election posters in Denmark, June 2015. Leica Q. © 2015 Thorsten Overgaard.



If one have tried different binocular brands, one will know that Leica binoculars make you see almost better than with your own eyes. Bright, colorful,contrasty, well-defined and relaxed. Same philosophy.

During an interview in 2013 with Peter Karbe on the Leica lens design and the Leica 50mm APO-Summicron-M ASPH f/2.0 he said something that might lead us to the human factor in lens design:

Peter Karbe: "At Leica we aim to reduce and minimize aberration within each element itself, with each surface and so forth. That is the concept and thinking behind everything we do."

"Look at the M system. We aim to keep it compact and each element has a certain task and this need to be selected carefully. That is the general description and the reason we try so hard."




TRX training in Denmark with trainer Lars Frederiksen. Leica M 240 with Leica 28mm Summilux-M ASPH f/1.4. © 2015 Thorsten Overgaard. Lightroom 6 with 2010
TRX training in Denmark with trainer Lars Frederiksen.
Leica M 240 with Leica 28mm Summilux-M ASPH f/1.4. © Thorsten Overgaard. Lightroom 6 with 2010



So any other lens designer could do this, or do you have an extra secret?

”They need to understand why, and they need to know how to do that. That is our history of ideas at Leica. We have a history of ideas for photographic lenses. Max Berek (1886-1949) designed the first Leica 50mm f/3.5 lens for the Ur-Leica that Oskar Barnack made in 1911. That is our heritage. We learned from that."

"Everybody at Leica try to learn from that which others did before us,” he smiles. “It’s not learned at a university. We learned from them. Our first lens designer was Max Berek. His concept was to reduce the aberration of each element, or of each lens surface.“





The art of composing with a 28mm

Most prefer 35mm or 50mm as their standard lens. Very few have 28mm or 75mm as their standard lens. With standard lens, I mean the one that you use 95% of the time, which is what most people do.

I can do anything I want to do with a 50mm lens. It's only because I easily fall in love with nice optics that I occasionally get other lenses. I still use 50mm most the time no matter what other lenses I got.



Leica Q black & white converted in Lightroom from the Leica Q DNG. ISO 100, f/1.7, 1/500 second. © 2015 Thorsten Overgaard.
Leica Q black & white converted in Lightroom from the Leica Q DNG. ISO 100, f/1.7, 1/500 second. © 2015 Thorsten Overgaard.



If you use your iPhone 6 for photography, you are actually using a 29mm lens. So you already know how to!

Composition is storytelling. What must be in the frame, and what should be omitted is the whole art on how to tell the story you want to tell. Obviously, the wider a focal length, the more there is to control. Buildings, trees, cars, posters, signs, people and all must be put into the frame and placed so they support the story and doesn't distract from the message.

Leica M240 with Leica 28mm Summilux-M ASPH f/1.4. © Thorsten Overgaard.
Leica M240 with Leica 28mm Summilux-M ASPH f/1.4. © Thorsten Overgaard.


Composition means to put things together.

It's much easier to focus the message and story in with a 50mm or 90mm lens and blur out the background. Unless you have a wider story to tell. I've used 21mm quite a bit over the years.

It's demanding but fun to work with wide angle.



The Danish Prime Minister Helle Thorning-Schmidt visits a school class. Leica M 240 with Leica 21mm Summilux-M ASPH f/1.4. © 2014-2015 Thorsten Overgaard.
The Danish Prime Minister Helle Thorning-Schmidt visits a school class. Leica M 240 with Leica 21mm Summilux-M ASPH f/1.4. © 2014-2015 Thorsten Overgaard.



The 28mm is a focal length I have been curious about and wanted to work with for a while (thee years, actually) . I've been waiting for the 28mm Summilux-M ASPH f/1.4. Now I almost got it in the Leica Q for a fraction of the price. I don't know if it will satisfy me, but I will give it a go.

When you go wide angle, you have to get closer to tell a story. If you "stay at 50mm range", most people in the photo will be supporting characters with no main subject. When you go closer to a main subject, you tell a story and have the wide background to support to your story and tell more or add an atmosphere.

One of the inspirations I have to use the 28mm is The World Press winner 2008 by Anthony Suau who used a Leica M6 TTL and 28mm a lot. He is one of the few people I know of that have had 28mm as his standard lens.



World Press Photo Award winner 2008 by Anthony Suau
The World Press Photo Award winner 2008 that was taken with by Anthony Suau with a Leica M6 TTL and 28mm. It is a really strong image when you know the context. As an image itself it raises more questions than it answers. But in the World Press Photo context, and as a news photo, hands down one of the best photos I have seen, considering the year 2008 and the story behind:
"The picture shows an armed officer of the Cuyahoga County Sheriff's Department moving through a home in Cleveland, Ohio, following eviction as a result of mortgage foreclosure. Officers have to ensure that the house is clear of weapons and that the residents have moved out."



If you look up his other photos, you will see a lot of 28mm composition and storytelling that I admire and would like to do. It's not easy I think, but that's why it would be fun to work with.




My daughter Robin Isabella out and about. Leica M 240 with Leica 28mm Summilux-M ASPH f/1.4. © 2015 Thorsten Overgaard. Lightroom 6 with 2010 Process.
My daughter Robin Isabella out and about. Leica M 240 with Leica 28mm Summilux-M ASPH f/1.4
. © 2015 Thorsten Overgaard. Lightroom 6 with 2010 Process.





Reviews of the Leica 28mm Summilux-M ASPH f/1.4

Jono Slack - Sample photos based on the limited edition that came out in May 2014 (As of May 2014).
DPreview have a small introduction to he lens (as of May 27, 2015)
Kristian Dowling in Melbourne did a Field Review (as of July 21, 2015).





Leica M 240 with Leica 28mm Summilux-M ASPH f/1.4. © 2015 Thorsten Overgaard. Lightroom 3 with 2010 Process, colors with Sekonic C-700 Color Meter.
Leica M 240 with Leica 28mm Summilux-M ASPH f/1.4. © 2015 Thorsten Overgaard. Lightroom 3 with 2010 Process, colors with Sekonic C-700 Color Meter.



Depth of Field and Bokeh

A wide lens that has depth of field and a pleasing bokeh, that's how you make wide angle photo fun and give it another dimension. I like my 28mm Summilux f/1.4 and my 21mm Summilux f/1.4 for that extra dimension of creativity I can add by focusing on a subject in the foreground and make the backround an atmosphere without disturbing details.

Leica M10 with Leica 28mm Summilux-M ASPH f/1.4. © Thorsten Overgaard.
Leica M10 with Leica 28mm Summilux-M ASPH f/1.4. © Thorsten Overgaard.



Moving into the "low light wides", the question of course will be, should I get the 21mm, the 24mm or the 28mm Summilux. They are so close, and the main difference from the outside is the size of the lenses. In their expression they are much alike.

I don't have a definitive answer for you on that. For me, the 28mm Summilux is an exciting wide angle that is wider than the 35mm Summilux f/1.4 FLE, and for that I like it. I still use my 21mm Summilux-M ASPH f/1.4.

Others love their 24mm Summilux. As I said, there aren't any definitive answer to that wide angle question.



Robin Isabella. Leica M10 with Leica 28mm Summilux-M ASPH f/1.4. © Thorsten Overgaard.
Robin Isabella. Leica M10 with Leica 28mm Summilux-M ASPH f/1.4. © Thorsten Overgaard.





To be continued ...













Thorsten von Overgaard
Thorsten Overgaard's Leica Reviews and Article Index
Leica M digital camera reviews:   Leica L digital cameras:
Leica M11
Leica M11-D   Leica SL
Leica M11-P   Leica SL2
Leica M11 Monochrom   Leica SL2-S
Leica M10   Panasonic Lumix S5 II X
Leica M10-P   Panasonic Lumix S1R
Leica M10-R   Leica SL3
Leica M10-D   Leica TL2
Leica M10 Monochrom   Leica CL
Leica M9 and Leica M-E   Leica L-Mount lenses
Leica M9-P
Leica M9 Monochrom   Leica R digital cameras:
Leica M240   Leica R8/R9/DMR
Leica M246 Monochrom
Leica MD-262 and Leica M60   Small Leica mirrorless digital cameras:
    Leica Q3 43 APO
    Leica Q3
Leica M film cameras:   Leica Q2 / Leica Q2 Monochrom
Leica M6   Leica Q (model 116)
Leica M4   Leica V-Lux
Leica CL /Minota CLE (1973)   Leica C-Lux
    Leica D-Lux 8
    Leica D-Lux
Leica M lenses:   Leica Digilux 3
Leica 21mm Summilux-M ASPH f/1.4   Leica Digilux 2
Leica 21mm Leica Super-Elmar-M ASPH f/3.4   Leica Digilux 1
Leica 21mm Super-Angulon-M f/3.4   Leica Digilux
Leica 28mm Summilux-M ASPH f/1.4   Leica R film cameras:
Leica 35mm Summilux-M ASPH FLE f/1.4 and f/1.4 AA   Leica R8 / R9
Leica 35mm Summicron-M ASPH f/2.0   Leica R4
Leica 35mm APO-Summicron-M ASPH f/2.0   Leica R3 electronic
Leica 50mm ELCAN f/2.0   Leicaflex SL / SLmot
Leica 50mm Noctilux-M ASPH f/0.95 FLE   Leica compact film cameras:
Leica 50mm Noctilux-M f/1.0   Leica Minilux 35mm film camera
Leica 50mm Noctilux-M f/1.2   Leica CM 35mm film camera
7artisans 50mm f/1.1   Leica R lenses:
Leica 50mm Summilux-M ASPH f//1.4   Leica 19mm Elmarit-R f/2.8
Leica 50mm Summicron-M f/2.0 "rigid" Series II   Leica 35mm Elmarit-R f/2.8
Leica 50mm APO-Summicron-M ASPH f/2.0   Leica 50mm Summicron-R f/2.0
Leica 50mm Elmar-M f/2.8 collapsible   Leica 60mm Macro-Elmarit f/2.8
Leica 75mm Noctilux-M ASPH f/1.25   Leica 80mm Summilux-R f/1.4
7artisans 75mm f/1.25   Leica 90mm Summicron-R f/2.0
Leica 75mm Summilux-M f/1.4   Leica 180mm R lenses
Leica 90mm Summilux-M ASPH f/1.5   Leica 250mm Telyt-R f/4.0
Leica 90mm APO-Summicron-M ASPH f/2.0   Leica 400mm Telyt-R f/6.8
Leica 90mm Summarit-M f/2.5   Leica 35-70mm Vario-Elmarit-R f/2.8
Leica 90mm Elmarit f/2.8   Leica 35-70mm Vario-Elmarit-R f/4.0
Leitz 90mm Thambar f/2.2
    Medium format:
Leitz Cine lenses:   Hasselblad 907x CFV 100c
Leica Cine lenses from Leitz Cine Wetzlar   Leica S1 digital scan camera
    Leica S medium format cameras

    Sony mirrorless digital cameras:
History and overview:   Sony A7
Leica History and Heritage
Famous Leica Usears   Fujifilm mirorrless digital cameras:
Leica Definitions   Fujifilm X-Pro 2
Leica Lens Compendium
Leica Camera Compendium   "Magic of Light" 4K Television Channel
The Solms factory and Leica Wetzlar Campus   Thorsten von Overgaard YouTube Channel

Photography Knowledge   Thorsten Overgaard books and education:
Calibrating computer screen for photographers   Thorsten Overgaard Masterclasses & Workshops
Which Computer for Photographers?   Lightroom Survival Kit
What is Copyright? Advice for Photogarphers   Lightroom Presets by Overgaard
Synchronizing Large Photo Archive with iPhone   Lightroom Brushes by Overgaard
Quality of Light   Capture One Survival Kit
Lightmeters   Capture One Styles
Color meters for accurate colors (White Balance)   "The Photographers Workflow Masterclass"
White Balance & WhiBal   "Finding the Magic of Light" eBook (English)
Film in Digital Age   "Die Magie des Lichts Finden" eBook (German)
Dodge and Burn   "The Moment of Emotional Impact in Photography"
All You Need is Love   "Freedom of Photographic Expression" eBook
How to shoot Rock'n'Roll   "Composition in Photography" eBook
X-Rite   "The Portrait Book" eBook
The Origin of Photography   "A Little Book on Photography" eBook
Hasselblad/Imacon Flextight 35mm and 6x6 scanner   "After the Tsunami" Free eBook
    "Why do I Photograph?" eBook
The Science of Colors:   "The Artist's Guide to the Galaxy" eBook
Chart of all Leica camera's Kelvin Color Performance   "The Leica M11 Know-All eBook"
Chart of Hasselbad camera's Kelvin Color Performance   "The Leica Q Know-All eBook"
    "The Leica Q2 Know-All eBook"
    "The Leica Q3 Know-All eBook"
    "The Leica M240 Know-All eBook"
    "The Leica SL3 Know-All eBook"
    The Digital Photographers Extension Course
    The Overgaard New Inspiration Extension Course I


Leica Photographers:   Famous Leica Photographers
Henri Cartier-Bresson   Riccis Valladares
Rodney Smith   Christoåpher Tribble
Birgit Krippner   Martin Munkácsi
John Botte   Jose Galhoz

Douglas Herr   Milan Swolf
Vivian Maier   Jan Grarup
Morten Albek
Byron Prukston   Richard Avedon

The Story Behind That Picture:   Learn with Thorsten Overgaard:
More than 250 articles by Thorsten Overgaard   Leica M9 Masterclass (video course)
Thorsten Overgaard Workshop Schedule   Leica M10 Masterclass (video course)
    Leica M240 Masterclass (video course)
Leica Forums and Blogs:   Leica M11 Masterclass (video course)
Leica M11 / M240 / M10 User Forum on Facebook   Leica Q Masterclass (video course)
Jono Slack   Leica Q2 Masterclass (video course)
Sean Reid Review (reviews)   Leica Q3 Masterclass (video course)
Heinz Richter's Leica Barnack Berek Blog   Leica SL2 Masterclass (video course)
    Leica SL3 Masterclass (video course)
Connect with Thorsten Overgaard:   Leica TL2 Quick Start (video course)
Thorsten Overgaard on Instagram   Camera Excellence (video course)
Thorsten Overgaard on Threads   A Fly on the Wall (video course)
Thorsten Overgaard on YouTube   Mastering the Noctilux (video course)
Join the Thorsten Overgaard Mailing List   The Leica 50mm Lens Class (video course)
Thorsten Overgaard on Facebook   Street Photography Masterclass (video course)
    Adobe Photoshop Editing Masterclass
    The Photoraphers Workflow Masterclass
    Adobe Lightroom Survival Kit
    Capture One Survival Kit
    Overgaard Workshops & Masterclasses
    Overgaard One-on-One Training
    Thorsten Overgaard Archive Licencing
    Commision Thorsten Overgaard

The Von Overgaard Gallery Store:   Von Overgaard Ventilated lens shades:
Ventilated Shades "Always Wear A Camera"   Ventilated Shade for Current 35mm Summilux FLE
Camera Straps "Always Wear A Camera"   Ventilated Shade E46 for old Leica 35mm/1.4 lens
The Von Camera Bag   Ventilated Shade for Leica 50mm Summilux-M ASPH
The Von Mini Messenger Walkabout Camera Bag   Ventilated Shade E43 for older 50mm Summilux
Desk Blotters 'Always Wear A Camera"   Ventilated Shade for 35mm Summicron-M ASPH
Sterling Silver Leica Necklace   Ventilated Shade for older 35mm/f2 lenses
Software for Photography   Ventilated Shade E39 for 50mm Summicron lenses
Signed Thorsten Overgaard Gallery Prints   Ventilated Shade for Leica 28mm Summilux
Video Masterclasses   Ventilated Shade for current 28mm Elmarit-M
Photography Books by Thorsten Overgaard   Ventilated Shade for older 28mm Elmarti-M
Home School Photography Extension Courses   Ventilated Shade E49 for 75mm Summicron
    ventilated Shade E55 for 90mm Summicron
    Ventilated Shade for 28mm Summaron
    Ventilated Shade for 24mm Elmarit
    Ventilated Shade E60 for 50mm Noctilux and 75/1.4
Gallery Store Specials   Ventilated Shade for Leica Q, Leica Q2 and Leica Q3



















































































Above: Leica M10 with Leica 28mm Summilux-M ASPH f/1.4. © Thorsten Overgaard.



Leica reviews by Thorsten Overgaard. LEICA = LEItz CAmera. Founded 1849 in Wetzlar, Germany. Leica logo in photo by Thorsten Overgaard

LEItz CAmera = LEICA
Founded 1849 in Wetzlar, Germany.









Leica 28mm Summilux-M ASPH f/1.4
(Model 11668). Pice $6,595.00 from Amazon or BHPhoto.
Leica 28mm Summilux-M ASPH f/1.4
(Model 11668). Pice $6,595.00 from Amazon or BHPhoto.
Leica 28mm Summilux-M ASPH f/1.4
(Model 11668). Pice $6,595.00 from Amazon or BHPhoto.



Thorsten von Overgaard in Rome by Morten Albek.
Thorsten von Overgaard
in Rome by Morten Albek.






















Also visit:

Overgaard Photography Workshops
Books by Thorsten Overgaard
Street Photography Masterclass Video
Adobe Photoshop Editing Masterclass
Adobe Lightroom Survival Kit
Lightroom Presets by Overgaard
Lightroom Brushes by Overgaard
Capture One Survival Kit
Capture One Styles by Overgaard
Photographer's Workflow Masterclass
Signed Original Prints by Overgaard

Von Overgaard Gallery Store
Ventilated Shades by Overgaaard
Leather Camera Straps
Camea Bags
Leather Writing Pads
Sterling Silver Camera Necklace

Leica Definitions
Leica History
Leica Lens Compendium
Leica Camera Compendium
Leica 21mm Super-Elmar-M ASPH f/3.4
Leica 21mm Super-Angulon f/3.4
Leica 28mm Summilux-M ASPH f/1.4
Leica 35mm Summilux-M ASPH f/1.4
Leica 35mm Summicron-M ASPH f/2.0
Leica 35mm APO-Summicron-M f/2.0
Leica 40mm Summicron-C f/2.0
Leica 50mm Noctilux-M ASPH f/0.95
Leica 50mm APO-Summicron-M f/2.0
Leica 50mm Summicron-M f/2.0
Leica 50mm Summicron-SL f/2.0
ELCAN 50mm f/2.0
Leica 50mm Summilux-M ASPH f/1.4
7artisans 50mm f/1.1
Leica 75mm Summilux-M f/1.4
Leica 75mm Noctilux-M ASPH f/1.25
7artisans 75mm f/1.25
Leica 80mm Summilux-R f/1.4
Leica 90mm APO-Summicron-M f/2.0
Leica 90mm Summilux-M f/1.5
Leica 35-70mm Vario-Elmarit-R f/2.8
Leitz Cine lenses
Leica L lenses

Leica M6
Leica M11-D
Leica M11-P
Leica M11
Leica M11 Monochrom
Leica M10
Leica M10-P
Leica M10-R
Leica M10-D
Leica M10 Monochrom
Leica M9, M9-P and Leica ME
Leica M9 Monochrom
Leica M 240
Leica M 240 for video
Leica M 262
Leica M-D 262
Leica M 246 Monochrom
Leica SL 601
Leica SL2
Lecia SL3
Panasonic Lumix S1R
Hasselblad 907X
Hasselblad CFV 100C digital back
Hasselblad XPan
Leica R9 dSLR
Leica / Kodak/ Imacon DMR digital back
Leica Q
Leica Q2
Leica Q2 Monochrom
Leica Q3
Leica Q3 43 APO
Leica D-Lux 8
Leica CL
Leica TL2
Leica Sofort
Leica S medium format
Leica X
Leica D-Lux
Leica C-Lux
Leica V-Lux>
Leica Digilux
Leica Digilux 1
Leica Digilux Zoom
Leica Digilux 2
Leica Digilux 4.3
Leica Digilux 3
Leica Digilux 1

Light metering
White Balance for More Beauty
Color Meters
Screen Calibration
Which computer to get
Sync'ing photo archive to iPhone
The Story Behind That Picture
"On The Road With von Overgaard"

Von Overgaard Masterclasses:
M11
/ M10 / M9 / M240 / Q / Q2 / Q3 / SL2 / SL3 /TL2 /









Thorsten Overgaard
Thorsten von Overgaard is a Danish-American multiple award-winning photographer, known for his writings about photography and Leica cameras. He travels to more than 25 countries a year, photographing and teaching workshops to photographers. Some photos are available as signed editions via galleries or online. For specific photography needs, contact Thorsten Overgaard via email.

You can follow Thorsten Overgaard at his television channel magicoflight.tv.

Feel free to email to thorsten@overgaard.dk for questions, advice and ideas.












Thorsten Overgaard photo workshops and masterclasses for Leica photographers and digital photographers





Join a Thorsten Overgaard
Photography Workshop

I am in constant orbit teaching
Leica and photography workshops.

Most people prefer to explore a
new place when doing my workshop.
30% of my students are women.
35% of my students dotwo or more workshops.
95% are Leica users.
Age range is from 15 to 87 years
with the majority in the 30-55 range.
Skill level ranges from two weeks
to a lifetime of experience.
97% use a digital camera.
100% of my workshop graduates photograph more after a workshop.

I would love to see you in one!
Click to see the calendar.


St. Louis   Chicago

Hong Kong



New York

Shanghai



Boston

Beijing



Washington DC

Tokyo



Toronto

Kyoto

  Montreal

Taipei

  Québec
Seoul

Seattle

Jakarta



San Francisco

Bali



Los Angeles

Manila



Las Vegas

Singapore



Santa Barbara

Kuala Lumpur



Santa Fe

Bangkok



Austin

Sydney



Clearwater

Perth



Miami

Melbourne



Cuba

Auckland



São Paulo

Napier



Rio de Janeiro

Moscow



Cape Town

Saint Petersburg



Tel Aviv

Oslo



Jaffa

Malmö



Istanbul

Stockholm



Palermo

Aarhus



Rome

Copenhagen

  Venice

Amsterdam

  Wetzlar

Frankfurt

  Mallorca

Berlin

  Madrid

Münich



Barcelona

Salzburg



Amsterdam

Vienna



Paris

Cannes

London

Reykjavik   Portugal
Roadtrip USA   Milano


























Buy eBooks by
Thorsten Overgaard

"A Little Book on Photography"   "A Little Book on Photography"
Add to Cart

Add to Cart


"The Leica Q Know-All eBook"
Add to Cart   Add to Cart

"Finding the Magic of Light"   "Composition in Photography - The Photographer as Storyteller"
Add to Cart   Add to Cart

"The Freedom of Photographic Expression"   "The Moment of Emptional Impact"
Add to Cart

Add to Cart



The Portrait Book
How to Make People Beautifu
    Add to Cart


Preorder: The Noctilux Masterclass
    Add to Cart

Extension Courses

The New Photography Extension Course"   "New Inspiration Extension Course"
Add to Cart   Add to Cart


Lightroom
Survival Kit 11



Workflow
Masterclass

Add to Cart

Add to Cart


Video Classes


eBook
+Video

This is Street Photography

  Street Photo
Masterclass

Add to Cart

  Add to Cart



Leica Q2
Masterclass

  "Leica Q Video Masterclass"
Leica Q
Masterclass

Add to Cart

  Add to Cart

"Leica TL2 Quick-Start Video Course"
Leica TL2
Quick-Start
Video Course
  "Leica Q Video Masterclass"
Preorder:
Leica M9
Masterclass
Add to Cart   Add to Cart

"Leica M10 Video Masterclass"   "Leica M 240 Video Masterclass"
Add to Cart   Add to Cart

Lightroom Presets

Lightroom Presets Leica M10   Lightroom Presets Leica M9
Add to Cart   Add to Cart

Lightroom Presets Leica TL2   Lightroom Presets Leica Q
Add to Cart   Add to Cart

Lightroom Dutch Painters Presets by Thorsten Overgaard   Leica Presets for Lightroom by Thorsten Overgaard
Add to Cart   Add to Cart

"Hollywood Film Presets"
Add to Cart

Hemingway Presets for Lightroom by Thorsten Overgaard
Add to Cart


201 Lightroom Presets
+ 4 Export Presets
Add to Cart

Capture One Styles:

"Capture One Pro Survival Kit"
Capture One
Survival Kit 22
  Leica Styles for Capture One by Thorsten Overgaard
Leica Styles for
Capture One
  Add to Cart


17 Capture One Styles
Add to Cart







  · © Copyright 1996-2024 · Thorsten von Overgaard




© 1996 - 2024 Thorsten Overgaard. All rights reserved.



Web Analytics
