Leica 75mm Summilux-M f/1.4

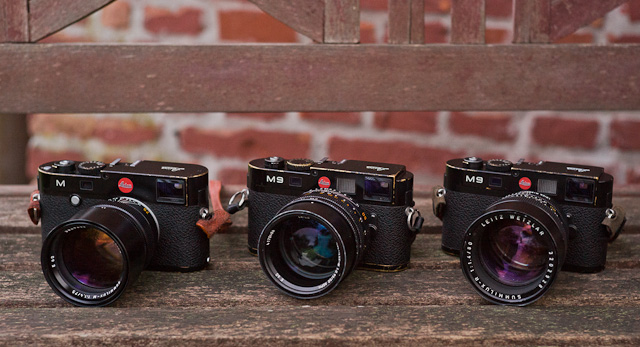

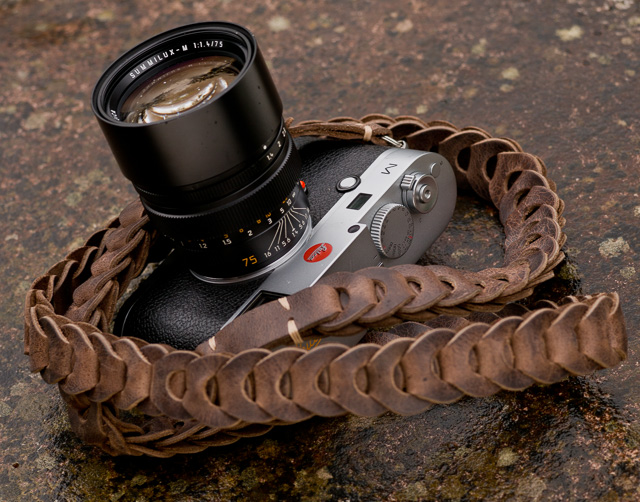

Leica 75mm Summilux-M f/1.4 (model no 11 810) from 1999 on Leica M9 vs Leica 80mm Summilux-R f/1.4 mounted on Leica M 240




Leica 75mm Summilux-M f/1.4
Leica 75mm APO-Summicron-M ASPH f/2.0
Leica 85mm Summarex f/1.5

By: Thorsten Overgaard



The 75mm Summilux-M f/1.4 is a legendary lens, and it only became more legendary when it discontinued. As it is with most Leica products, that which is no longer available goes up in price. Which naturally leads to the question, "Should I get one (before it is too late)?"



Professor Walter Mandler
The 75mm Summilux-M was the personal favorite lens of Walter Mandler (in the middle in this photo)



The 75mm is recognized by the narrow depth of field wide open. Traditionally 90mm and 75mm lenses have been considered good portrait lenses, most likely because one can isolate the subject from the background. With a tele you isolate the backgrpund with a more narrow angle, and the backgrund appears more solid or flat (whereas a wide angle includes more of the background due to a wider angle, and the backgrpund appears with more details and more distance between them).




A real estate manager on his bicycle in my hometown Aarhus, Denmark. June 2015. Leica M 246 Monochrom with Leica 75mm Summilux-M f/1.4. © 2015 Thorsten Overgaard.



This is still true, though the faster apertures of todays 50mm lenses enables us to blur the background with a 50mm lens the same was as you used to use a 90mm lens to do. My take on that is that the isolation of the background (in a portrait) was only possible with small tele lenses (75mm, 80mm, 85mm and 90mm) back in the day when those lenses were not that lightstrong (f/4.0) and their counterpart 50mm lenses captured way too much of the unwanted background being f/2.0 to f/3.5.

When I read "My Life with the Leica" by Walther Benser, that is what he states as the new fantastic possibility with the 90mm lenses back in the 1940s. The ability to isolate the subject from the background. Walther Benser worked for Leica for many years, and I think the term "portrait lens" is more of a marketing term than a "rule of correct photography".




Hollywood, August 2015. Leica M 246 Monochrom with Leica 75mm Summilux-M f/1.4.



In other words, my perception of a good portrait lens is one that allow me to isolate the subect from the bacground. The main subject is the person, the background can be gone, a beautiful bokeh, a vague supporting story, sparkling blur or a painting of intersting colors that set a mood.

Composition is storytelling. It is what is relevant for the story, and for a portrait the story is most often the person. The background will disturb if it is too dominant, unless the background is in fact part of the story one want to tell.






Buy the new eBook
"The Freedom of Photographic Expression"
by Thorsten Overgaard





"The Freedom of Photographic Expression" by Thorsten Overgaard

"The Freedom of
Photographic Expression"
eBook for computer, Kindle and iPad
October 2016 (268 pages)



In this easy to read and apply eBook,
Thorsten Overgaard takes beginners and experienced photographers through the basics of controlling the light and the camera.
This book covers the technical side of photography from beginners level to semi-pro, features a number of photographs by Thorsten Overgaard and chapters on his philosophy on photography.

Only $148




Buy Now

Add to Cart

Instant Delivery




View Cart






"I've bought the new book - made a start reading it - it is really interesting.
I know it’s basic at the beginning but it isn't written in a patronizing way. I have been taking photographs for many years and have been lucky enough to be paid to take them for the last seven years; but it's always good to be taken back to the start"
P. S. (UK)



""Really enjoy your writing and teaching"
D. K. (USA)

"I love your insights on photography."
D.B. (USA)

★ ★ ★ ★ ★ ★










A moment of solitude in my local cafe. Leica M 246 Monochrom with Leica 75mm Summilux-M f/1.4. © 2015 Thorsten Overgaard.



I'm sure some will sit more upright in the chair reading these words. And perhaps that is why I say so. It's good to be challenged in ones viewpoint and try something else and re-think how things can be done.

Somebody told me to use the Leica 21mm Summilux-M ASPH f/1.4 for portraits, so I did. I don't know if I agreed with the person after that, but was interested to learn why he would recommend that, and in the end I did learn something that was useful by using a wide angle with narrow depth of field for portraits. It made me interested, gave me some hard days with my eyes wide ipen, and finally paid off with something that ... shall we say it was a combination of how I knew it had to be done, meeting how "everybody knows" it shouldn't be done. Something new got to be the result of that melting pod.




One of my recent 21mm portraits with the Leica 21mm Summilux-M ASPH f/1.4. Obviously the background is very "busy" but could then be part of the story you want to tell. The wide open aperture of f/1.4 allow me to make the "busy" background into a dreamy effect.




The same portrait as it could have looked with a 90mm lens. The crop changes and there is less background to deal with.
Isolation of the subject is just so much easier with tele lenses, traditionally. If that is what you seek.



Today, a 50mm f/1.4 or f/0.95 will isolate the subject quite as well as a 90mm once did. Hence, one might as well use a 50mm lens for portrait. If not for anything else, becaues it is versatile and thus often sits on the camera. At least that is what I mostly do despite that I have the very good Leica 90mm APO-Summicron-M ASPH f/2.0 in my bag as well.

If you wonder what I am talking about, it is this: A 90mm lens has a more narrow depth of field than a 50mm. And a lens with a wider aperture has a narrow depth of field. If you mix it up, a 50mm f/1.4 will have as much narrow depth of field as a 90mm f/2.0.

The angle of view is more narrow for the 90mm, and maybe you will want that. Or maybe you will work around that potentially busy background to use the 50mm instead.





Leica 75mm Summilux-M f/1.4 sample photo - Rebecca Grant
British actress Rebecca Grant. Leica M 240 with Leica 75mm Summilux-M f/1.4



If we think back to the 85mm Summarex f/1.5 in 1943 we have both a small tele lens with a narrow depth of field, and a wide aperture which makes the narrow depth of field even more narrow.

Fast-forward to 1980 - 37 years of lens technology and better contrast due to better light control - we get to talk about the 75mm Summilux-M f/1.4 with an extremely narrow depth of field and a very high quality of contrast, colors and details.

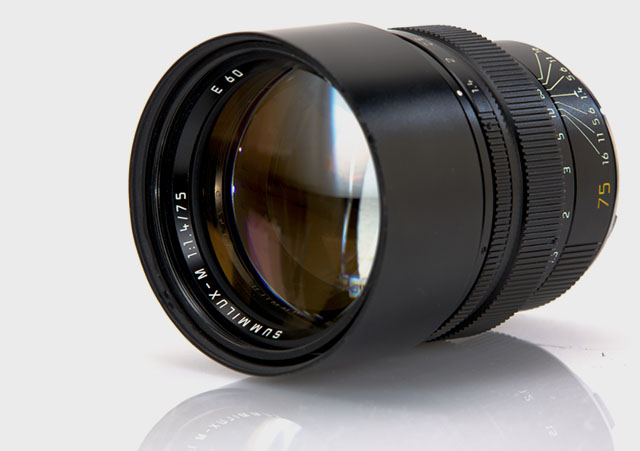

Leica 75mm Summilux f/1.4
Mmmmmm ... Leica 75mm Summilux f/1.4



A 75mm f/1.4 has as narrow a depth of field as a Leica 50mm Noctilux-M f/1.0 or f/0.95 which is why the relevant question is if it is actually the same as a Noctilux?

To add to the confusion, the recent introduction of the Leica M 240 that takes Leica R lenses opens up for a another possibility of getting that special Leica look with narrow depth of field: The Leica 80mm Summilux-R f/1.4!

I may not clarify what to do, but hopefully I can help clarify the choices you have!



Leica 75mm Summilux-M f/1.4 sample photo
Leica M 240 with Leica 75mm Summilux-M f/1.4. I like the colors in this one which is actually a crop of the original (see the bottom of the page). "Being Ben Affleck" we called this image, though it is guitarist/photographer Michael Swisterski. He is used to be "recognized" as "the famous guy".



Perspective and depth of field

I have on my list to do an article one day that explains depth of field and perspective. In short, one could say that perspective and depth of field is the same for all lenses and all apertures. It's the crop(and anlargment) that changes when you change lens. One can take a 18mm lens and if one crop into the middle, the image one will be looking at will be the same as a 400mm lens would make. That is the simlicity of this.

As far as perspective and aperture goes, it is something you can put into a calculation and it will stick.

What you can't put into a calculation is the individual charasteristics of lens designs (which is reason for "the Leica glow" in essence). But perhaps the largest factor in what lenses and cameras produce the best images is this: What the user feels he or she can make with a certain instrument. If you are convinced that a Nikkor 50mm f/1.2 is the best lens ever, it is. If you are convinced it is the worst lens ever, it will be. For you.

One of the factors why a certain lens is great, is that I have decided so. As the photorapher and not the camera makes the photographs, being convinced this is the right instrument, is a very important factor.





A duck family at my house in Denmark, July 2015. Leica M 240 with Leica 75mm Summilux-M f/1.4.



The favorite lens of Walter Mandler

The 75mm Summilux-M was designed in 1980 and accompanied the then brand new Leica M4-P. It is said to be the favorite lens of legendary lens designer Dr Walter Mandler (1922-2005) who designed it. He also fathered the Leitz 50mm Noctilux, so that puts things into perspective.

One could wonder why it was his favorite lens ... what things fell in place in this lens that made him like it that much? I think he had a lot of elements to be proud of ... colors, details, sharpness, as well as an extremely elegant handling of light.

And when I say extremely elegant, I am referring to when precise lenses become magic in the sense that they look like a naturalistic painting done by one of the great masters.

Few want a lens that reproduces precisely what is. No, what we really want is a lens that reproduces reality so the beauty is amplified and the errors are erased. Like a painter would choose which things to amplify and which to blur.

It's a fact that the lens was so perfect that whilst many other lenses were redesigned in the 27 years of the 75mm Summilux regency, the 75mm Summilux-M continued with the same unchanged design all 27 years untill it was discontinued in 2007. Though the lens mount inside the lens was made 40 grams lighter when the lens production was moved from Canada to Germany in 1998.



Professor Walter Mandler
The Leica M4-P(rofessional) of 1981 was begging for some high-speed lenses. Here with a motor winder on the bottom and the Leica 50mm Noctilux-M f/1.0 that had come out just four years earlier, and the Leica 75mm Summilux-M that came almost at the same time as the camera.



The German and the Canadian versions

The Leica 75mm Summilux-M exists in three versions which are essentially not different - photographically speaking. The lens design itself is exactly the same.

But the first version (1980-1982; Model 11 814) is with a ventilated hood attached. And then two years after the introduction, the lens was redesigned with a built-in lens hood (Model 11 815). The weight increased a tiny bit by this redesign of the lens barrel that had to fit the lens hood. But that is all.



Leica 75mm Summilux, 80mm Summilux and 85mm Summarex lenses

11808 Version I Chrome   11 309 Canada   11 309 Canada

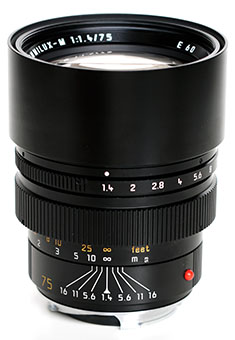

Leitz 75mm Summilux-M f/1.4
Version I (Canada)
  Leitz 75mm Summilux-M f/1.4
Version II (Canada)
  Leica 75mm Summilux-M f/1.4
Version III (Germany)

11 309 Canada   11 309 Canada   11609 Titanium
Leica 75mm
APO-Summicron-M ASPH f/2.0
  Leitz 85mm Summarex f/1.5
with lens hood (reverse)
  Leica 80mm
Summilux-R f/1.4



75mm
Summilux-M
f/1.4
Version I

1980 - 1982
11 814
M bayonet

Made in
Canada

75mm
Summilux-M
f/1.4
Version II

1982 - 1998
11 815
M bayonet

Made in
Canada

75mm
Summilux-M
f/1.4
Version III

1998 - 2007
11 810
M bayonet

Made in
Germany

75mm
APO-Summicron-M ASPH f/2.0


2005 - current
11 637
M bayonet

85mm
Summarex
f/1.5
Chrome or black

1943 - 1960
SOOCX
Screw mount

276 black and
4,066 chrome units made

80mm
Summilux-R
f/1.4


1980 - 2009
11 880/11 881
R mount

(Later versions are with ROM contacts 11 881)

From serial no
(?)
From serial no
325XXXX

From serial no
386XXXX
From serial no
3983051
Serial 541053
to 1152000
Serial 3054601
to 3949383+

E60 mm filter

Round vented plastic hood
12 539

E60 mm filter

Built-in
hood

E60 mm filter

Built-in
hood
E49 mm filter

Built-in
hood
E58 mm filter

Clip-on vented
metal lens hood
ORQPO

E67 mm filter

Built-in
hood

0,7 m - infinity

0,7 m - infinity 0,7 m - infinity 0,7 m - infinity 1 m - infinity 0,75 m - infinity
7 lenses in 5 groups. 7 lenses in 5 groups. 7 lenses in 5 groups. 7 lenses in 5 groups. 7 lenses
in 5 groups.
7 lenses in 5 groups.
490 g
Length: 80 mm
600 g
Length: 80 mm
560 g
Length: 80 mm
430 g
Length: 66.8 mm
700 g Black
880 g Chrome
700 g
Length: 69 mm
f/1.4 - f/16 f/1.4 - f/16 f/1.4 - f/16 f/2.0 - f/16 f/1.5 - f/16 f/1.4 - f/16
3Walter Mandler Walter Mandler Walter Mandler Peter Karbe Max Berek Walter Mandler
No adapter needed for
Leica M 240
No adapter needed for
Leica M 240
No adapter needed for
Leica M 240
No adapter needed for
Leica M 240
Adapter for
Leica M 240:
L39 to M ($11)
(with 6-bit $40)
Adapter for
Leica M 240:
Leica
R-Adapter M $300
Estimated
$4,000
Estimated
$4,000
Estimated
$5,000
Price new at BH
$3,750
Estimated
$2,000 (black)
$6,000 (chrome)
Estimated
$2,000



Leica 75mm Summilux-M f/1.4 sample photo
Leica M 240 with Leica 75mm Summilux-M f/1.4



Made in Germany - Now 40 g less

In 1998 the production of the Leica 75mm Summilux-M f/1.4 was moved from the Ernst Leitz Canada factory to the Leica Camera AG factory in Solms in Germany, and here they did a small redesign of the lens so that the weight dropped 40g. It's not a very visible change as it is only the lens mount inside that is changed (Model 11 810), as well as the focus tab in the bottom of the lens.



Ernst Leitz Canada (ELCAN)   Ernst Leitz Canada (ELCAN)
Ernst Leitz Canada (ELCAN)   Leica Solms, Germany



There is one visible change of the lens, and that is that it now says Leica instead of Leitz ... and if one looks really closely on the barrel, one can see an engraving saying "Made in Germany" on the lens barrel.

This little change made some think this was a more "real" Leica lens than the Canadian.

I find it ironic that the latest version, Leica Germany, generally is considered the most valuable or "most Leica" because given the choice between having the lens made where the designer, Walter Mandler was, and Germany, I would trust the originality of the Canadian version the most. But that is a detail. The German and Canadian factories were in many ways copies of each other (as mentioned in my article Leica History).



Leica 75mm Summilux-M f/1.4 sample photo
Leica M 240 with Leica 75mm Summilux-M f/1.4






Buy the new eBook
"A Little Book on Photography"
by Thorsten von Overgaard





A Little Book on Photography by Thorsten von Overgaard eBook

Order now - Instant delivery.

More info

★ ★ ★ ★ ★ ★



It's a humorous understatement to call this
new eBook by Thorsten Overgaard for
"A Little Book on Photography".
It's a grand book, a history lesson, life experience, a biography and poetry book and brilliant photo book!
All in one beautiful package of 180 pages
to fire you up and get you to love
photography ... unconditionally!

"A Little Book on Photography"
eBook for computer, Kindle and iPad.
New release March 2017.
Intro price only $47 - 180 pages.




Buy Now

Add to Cart

Instant Delivery




View Cart




















The 75mm Summilux-M vs. the 80mm Summilux-R

I've previously compared the 80mm Summilux-R (mounted on the Leica M 240 with the Leica R-Adapter M) to the Leica 50mm Noctilux-M. They are very close in many regards. See page 33 of the Leica M 240 article: "The 80mm Noctilux..?"

The Leica 80mm Summilux-R is in my opinion the crown jewel of the Leica R lenses, the lenses made for the Leica SLR cameras. As such it is a fairly economical way to get the Noctilux look. It's $2,000 secondhand, and then a $300 adapter to mount it onto the Leica M240. The Leica 50mm Noctilux is a $6,000 to $11,400 lens, depending if you go for a second-hand f/1.0 (previous versions) or the new (current version) f/0.95.

Likewise, some will ask if the 80mm Summilux-R and 75mm Summilux-M are almost the same. In many ways they might be, they are even designed by the same designer in the same year. But for two different camera systems.

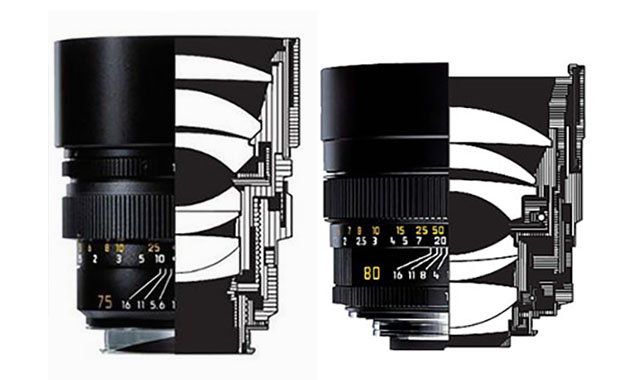

Leica 75mm vs Leica 80mm Summilux-R



They seem to have much in common. I think that if someone sent me the glass used in these lenses, I wouldn't be able to tell which belonged to what. They are very similar in design.

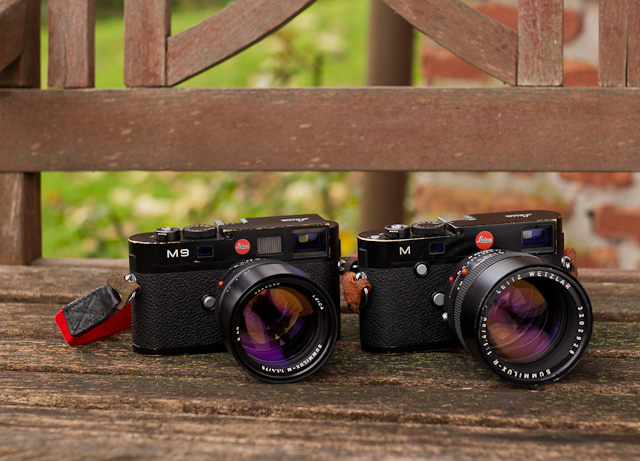

Leica 75mm Summilux-M f/1.4 vs. Leica 80mm Summilux-R f/1.4
Similar lenses in many regards, but the Leica 75mm Summilux-M is more compact and fits right onto the Leica M 240 where it activates the automatic Focus Aid (that enlarges the image 5x or 10x so it is easier to focus accurately). The Leica 80mm Summilux-R f/1.4 is a bit more bulky and sits on the adapter that requires you to press the Focus Aid button on the front of the camera.
Focus turn: They both require that you to turn the focus ring 50% around the lens barrel to get from 70 cm to infinity (more modern Leica lenses require only 30% movement around the lens barrel). The 75mm is usually twice the price of the Leica 80mm.



The new black in lens design

If one should sum up very quickly what has been changing in lens design since the 75mm Summilux f/1.4 was born in 1980, it would be that new designs see better in the dark. The distincive differene between older lenses and the new 50mm Summilux-M ASPH f/1.4, Noctilux f/0.95, Leica 35mm Summilux-M ASPH f/1.4 FLE, Leica 21mm Super-Elmar-M ASPH f/3.4 and mainly the 50mm APO-Summicron-M ASPH f/2.0 is that they see shadow details more crisp than the human eye.

The 75mm Summilux doesn't have this ability to see in the dark, and that is what a future 75mm Summilux-M ASPH f/1.4 would mainly improve.

An let me point out that I am talking about shadow details and not darkness. Shadow details are the details inshadows in a normal lit picture where you have quite a range. A picture in darkness is a picture where the whole scene has very little light (which you would usually handle with faster ISO). It's an intersting subject I shall get back to.





The 75mm Summilux vs. the 50mm Noctilux

Surprisingly I discovered the Leica 75mm Summilux-M to be almost impossible to distinguish from the Leica 50mm Noctilux-M f/0.95 when I used the two lenses for a portrait session. For what I did and what I wanted to accomplish.

I'm not talking about the distance to the subject which of course has to be closer with the 50mm than the 75mm. And as you can tell, I didn't have to deal with the background perspective. What I am talking about is that the micro details, the feel, the skin and the handling of contrast was very similar. Maybe in essence the artistic and dreamy look is what I find strikingly similar. I think this is something I will spend some more time to investigate.



Rebecca Grant
British actress Rebecca Grant. Leica M 240 with Leica 50mm Noctilux-M ASPH f/0.95



Rebecca Grant - Leica 75mm Summilux-M f/1.4 sample photo
British actress Rebecca Grant. Leica M 240 with Leica 75mm Summilux-M f/1.4



Now, close-up ... would you be able to tell which was the Noctilux and which was the 75mm Summilux if I didn't write it below the image..?



Rebecca Grant
Leica 75mm Summilux-M - a 100% crop of the image



Rebecca Grant
Leica 50mm Noctilux-M ASPH f/0.95 - a 100% crop of the image



Working on the edge of what is possible

Now, let it be no secret that if you want technical quality, using a lens wide open is not the way to go. If you stop the 75mm Summilux-M f/1.4 down to f/2.8 you of course get more sharpness overall, details and all that. Though the 75mm is better performing than many in that is has rather good sharpness all over the image.

But the art is to work on the edge of what is possible: Where aesthetics meets technology and engineering. I talked about the master paintings before, and that is what I see of potential in the Summilux f/1.4 and the Noctilux f/0.95 lens.

It is no wonder that many photographers want to record reality with as many deails as possible, preferably with details that can be seen when blown up on a wall. On the other hand, it shouldn't surprise you that the subjects in your photographs - the people - just as often have a different agenda. They prefer to be portrayed with as few unpleasant details as possible, leaving only the good.

This is obviously one of the things that makes photogprahy difficult, yet has to be solved in a diplomatic way that satisfies all interests. The one who does the work, as well as the one who pays for it.



Dutch painter Vemeer's "Young woman with a water pitcher."
A great example of a detailed painting that doesn't go into unpleasant details. Dutch painter Vemeer's "Young woman with a water pitcher."



Lenses that work in the zone between not revealing everything, yet pretending they record every details is very valuable. That is why well-constructed f/1.4 and f/0.95 lenses are very special!

When high-speed photography seemed to be the new black in the 1970's and 1980's several manufacturers made high-speed lenses. But one thing is to take a f/2.8 lens and open it up to f/1.4 so it can photograph with only 25% of the light (detoriation of quality as a result). Another thing is to design a f/1.4 lens that can actually do what a f/2.8 lens can do (in terms of sharpness and contrast) with only 25% of the light.

Now, that's what we are talking about.



Leica 75mm Summilux-M f/1.4 sample photo
The Leica 75mm Summilux-M f/1.4 works very close to the subject. Mind you it is a small tele lens, and yet it goes down to 70 cm as the closest focus.




  Join The Overgaard New Inspiration Extension Course


  The Overgaard New Inspiration Course
More info: Read the article.


For a limited time this course includes
a free portfolio review by Thorsten Overgaard
.
You can do the course at home and on travel at your own pace. Overgaard has taught workshops for years and has compressed the experience to a package of articles, training drills, assignments and video tutorials that will inspire your photography and take you to the next level!


  "The Overgaard
New Inspiration Course"
For computer and iPad. 181 p eBook.

  Only $798

  Add to Cart

  View Cart

Order now - Instant delivery.







Rare 75mm lenses

There has been produced a few anniversary editions of the 75mm Summilux-M f/1.4 with engravings celebrating this or that, but if you want a really special piece to put on display, the Leitz 75mm Summar f/0.85 with a Leica M3 takes the prize. It's a very limited edition and was designed in 1934 by Max Berek for X-ray photography (X-ray lenses for 35mm film were used in the 30's to 50's for photographing radiographic screens (lung/TB screening) because 35mm film was cheaper than X-ray film.).

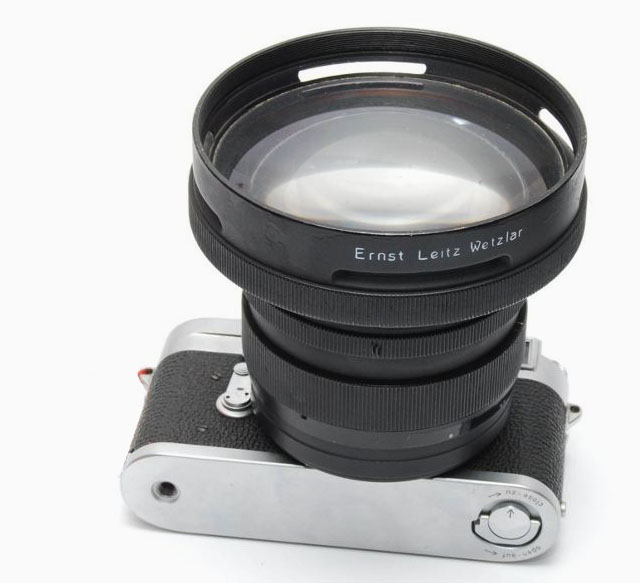

Leitz 75mm Summar f/0.85
No household is really complete without the Leitz 75mm Summar f/0.85





How does the 75mm fit in to it all?

When I used the Leica SLR system for almost everything back in the old days - like in five years ago - my main lens was the Leica 80mm Summilux-R f/1.4. I would use 80mm for everything, and even when the digital back, the DMR, was made for the Leica R9 and the crop factor was 1.3X, I still used the 80mm as the most natural lens, even the crop factor basically made it a 105mm.

Crop factor doesn't change a lens
Now, crop factor is simply what is says. It is how much of the image that is cropped away. In a Leica M8, Leica M8.2 and a Leica R9 with DMR digital back it is 1.3X. It basically means that you divide the frame with 1.3X (and a 24 x 36mm full-frame bcomes 18 x 28mm). You lost 30% of the image.

It doesn't change the qualities of the lens, which is important to take a note of. Not that you are likely to ever stumble into another Leica M with a crop factor; they are all full-frame sensors from Leica M9 in 2009 and forward. But if you use lenses on so-called mirrorless cameras, you will still stumble into the term "crop factor".

A 35mm lens doesn't loose it's qualities when cropped. You just lose the edges of the image. That's why, in my opinion, it was an error that many bought 28mm lenses for their Leica M8 cameras so as to have a frame similar to the 35mm lens they were used to on the Leica M7 and Leica MP film rangefinders. The 35mm is just not the same as the 28mm.

Likewise, when I moved from using a 80mm on a Leica R9 film camera to a R9 with a digital back, I didn't change lens. I just stepped a little back so as to have the same frame. The type of photo I got was the same. Perspective - the backgrounds relative size comparted to the subject in front - was changed, but I usually blurred that background aways.

What on Earth am I talking about?




Leica 75mm Summilux-M f/1.4 sample photo
Cropped frame 75mm Summilux   Full frame 75mm Summilux



A 75mm lens is always a 75mm lens - cropped or not.

A 90mm lens has a 27 degree angle, a 75mm has a 33 degree angle, and a 50mm lens has a 45 degree angle.

Using a 75mm or 50mm and just stepping back or forward, will give the same magnification of course. But the foreground-background relation will change. The depth of field will change. Quite a few things will change.

That is why a 50mm f/2 and a 90mm f/2 are very different. But a 50mm f/1.4 and a 90mm f/2.0 has a very similar depth of field in the final image.





The eye vs. a camera lens

The eye is close to the 50mm lens only in the regard that it is the same enlargement. But your eyes basically have a angle of view that is about 180 degrees combined. That's how wide you see things.

They eyes could basically be said to be part of our alarm system: We keep an eye out for things within a 180 degree angle, and the ears help us notice any unusual activity behind, above and below us so we can turn our head and find out if it is a hungry lion attacking or a London bus approaching.



Leica 75mm Summilux-M f/1.4 ssample photo
Leica M 240 with Leica 75mm Summilux-M f/1.4. See the cropped version in colors on top of the page.



At the same time you only focus on one specific area. One of the problems a photographer faces when doing razor sharp large format landscapes is that to the eye a landscape isn't sharp from corner to corner: We scan the landscape with the eyes so as to have the image details.

The camera takes the same image with everything in focus in one snap, and that could be said to be one of the problems in composing landscape images.

This in my opinion is why I used to find the 80mm Summilux, and to a large degree the 75mm Summilux-M a more natural look. It is very much like how I see things, combined with how I want to see them. It has the similarity of the eye that it focuses on a relatively small area but records the rest in a blur. And it adds aesthetics in the way it does it.





The portrait in music

It's interesting that Chick Corea recently offered a few of the audiences in his concerts to come onto the stage and have their portrait played!

It's even more interesting how well the audience recieved it, because it proved that one can portray a person through music.






"Often when I write music, I write music as a painter would paint a painting.

He looks at a mountain and he paints the mountain. Or he looks at a face and he paints a face.

It's like a portrait. I think it is fun to make improvised portaits of ... people!"

- Chick Corea






It is always interesting to see what another person comes up with when they have to portray you. In a portrait session two people meet and have to work together to accomplish a portrait that they can agree is good.

A portrait is not a recording of how the person looks. It's an artistic presentation of a personality.

The lens - or technique - of course plays a part in how this can be done.



Leica 75mm Summilux-M f/1.4 sample photo - Princess Joy Villa
Princess Joy Villa. Leica M 240 with Leica 75mm Summilux-M f/1.4



Think of it as poetry. A Bob Dylan song may be words, but when it becomes beautiful it is not the actual literal meaning of the words that makes it beautiful. It is the emotion it creates.

I mention Bob Dylan because he does not only use some very Dylan-ish words, he also often sings them so you can hardly hear what he sings. In other words, he is a great example that poetry may convey an emotion rather than the actual meaning of the words.






"She was workin’ in a topless place
And I stopped in for a beer
I just kept lookin’ at the side of her face
In the spotlight so clear
And later on as the crowd thinned out
I’s just about to do the same
She was standing there in back of my chair
Said to me, “Don’t I know your name?”
I muttered somethin’ underneath my breath
She studied the lines on my face
I must admit I felt a little uneasy
When she bent down to tie the laces of my shoe
Tangled up in blue
"

- Bob Dylan






This may also explain why a manual for a camera or a washing machine is seldom aesthetic to read. It is trying to give you data rather than convey emotion.

  Leica logo
  MTF chart
  Leica logo
  Picasso


It is not what Hemingway factually tells you in "The Old Man and the Sea" that is of importance. It is how it makes you feel.

This should give us a hint about the actual importance of MTF charts for lenses (Modulation Transfer Function) and all that measurement of lenses. It's not that I don't find them interesting. I actually love to read Erwin Putts' descriptions of lenses and have probably read all of them by now. You should know your tools in detail, but then you should choose with your heart.

The best in test may not be the best in real life for what you want to tell.

What should hit you first when you see a photo or portrait, is the emotional impact. And this is why the lens' ability to create a pleasant and aesthetic look is much more of interest than the sharpness, focal length and all that.



Lenses for portraits
Focal length does play in for portraits in the sense that a 21mm or 35mm lens will make the nose relatively larger, whereas a 50mm, 75mm and 90mm creates a more natural look with proper proportions.

The 90mm will be the most proper proportions - with a long background so to say (that will actually appear flat), the 75mm will display a wider view than the 90mm of what is in the background.

I teach in my workshops that light is the most important thing to look for when doing portraits. When looking for a location to do a portrait, you apply a "tunnel look" because the lens only records the face and the very limited background you choose to show behind the person. It doesn't matter what happens outside the image. If the background is blurred out with a 90mm f/2.0 or a 50mm f/0.95, the background is reduced to a blur with - preferable - some sparkling light in the bokeh.



Leica 75mm Summilux, 50mm Noctilux and 80mm Summilux-R
Leica 75mm Summilux-M f/1.4 next to Leica 50mm Noctilux-M ASPH f/0.95 and Leica 80mm Summilux-R f/1.4



Which lenses to have

In the practicality of daily life where we are often concerned with explaining to our self and others why we have the lenses we have, a 50mm and 75mm will often be considered too close. I usually carry 21mm, 50mm and 90mm lenses with me, and the 90mm is the one that get's the least use. It's a very nice lens, but I just don't need it that often.

Likewise one could say that 21mm, 35mm and 75mm would go as a good set. But given what I just said above, the viewing angle shouldn't be the only guideline for which lenses to own.

I could easily argue that the 75mm lens is not necessary between my 50mm and 90mm. I can also just as easily argue that it is a lens with a very special look that gives me a great working distance to the subject.

There really isn't any rules for this. As far as myself goes, I tend to focus on lenses that help me express what I want, and lenses that make me want to take photos and explore possibilities.



For more on the other lenses mentioned in this article, read my Leica 90mm Lenses article, my Leica 80mm Summilux-R f/1.4 article and my Leica 50mm Noctilux-M ASPH f/0.95 article.













    Thank you
For help, corrections and information to

Erwin Puts
Lorenzo Formoso







Thorsten Overgaard, October 27, 2014







leica.overgaard.dk
Thorsten Overgaard's Leica Article Index
Leica M cameras:   Leica S:
Leica M10   Leica S1 digital scan camera
Leica M Type 240 and M-P Typ240   Leica S2 digital medium format
Leica M-D Typ 262 and Leica M60   Leica S digital medium format
Leica M Monochrom Typ246 digital rangefinder
Leica M Monochrom MM digital rangefinder   Leica Cine Lenses:
Leica M9 and Leica M-E digital rangefinder   Leica Cine lenses from CW Sonderoptic
Leica M9-Professional digital rangefinder
Leica M4 35mm film rangefinder
Leica M lenses:   Leica SLR cameras:
Leica 21mm Summilux-M ASPH f/1.4   Leica SL 2015 Type 601 mirrorless fullframe
Leica 21mm Leica Super-Elmar-M ASPH f/3.4   Leica R8/R9/DMR film & digital 35mm dSLR cameras
Leica 21mm Super-Angulon-M f/3.4   Leica R10 [cancelled]
Leica 28mm Summilux-M ASPH f/1.4   Leica R4 35mm film SLR
Leica 35mm Summilux-M ASPH FLE f/1.4 and f/1.4 AA   Leica R3 electronic 35mm film SLR
Leica 35mm Summicron-M ASPH f/2.0   Leicaflex SL/SL mot 35mm film SLR
Leica 50mm Noctilux-M ASPH f/0.95
Leica 50mm Noctilux-M f/1.0 and f/1.2   Leica R lenses:
Leica 50mm Summilux-M ASPH f//1.4   Leica 19mm Elmarit-R f/2.8
Leica 50mm APO-Summicron-M ASPH f/2.0   Leica 35mm Elmarit-R f/2.8
Leitz 50mm Summicron-M f/2.0 "rigid" Series II   Leica 50mm Summicron-R f/2.0
Leica 75mm Summilux-M f/1.4   Leica 60mm Macro-Elmarit f/2.8
Leica 75mm APO-Summicron-M ASPH f/2.0   Leica 80mm Summilux-F f/1.4
Leica 90mm APO-Summicron-M ASPH f/2.0   Leica 90mm Summicron-R f/2.0
Leica 90mm Summarit-M f/2.5   Leica 180mm R lenses
Leica 90mm Elmarit f/2.8   Leica 400mm Telyt-R f/6.8
Leitz 90mm Thambar f/2.2   Leica 35-70mm Vario-Elmarit-R f/2.8
    Leica 35-70mm Vario-Elmarit-R f/4.0

History and overview:   Small Leica cameras:
Leica History   Leica Q full-frame mirrorless
Leica Definitions   Leica Digilux 2 vintage digital rangefinder
Leica Lens Compendium   Leica Digilux 1
Leica Camera Compendium   Leica X
The Solms factory and Leica Wetzlar Campus   Leica Sofort instant camera
    Leica Minilux 35mm film camera
    Leica CM 35mm film camera

Photography Knowledge   Thorsten Overgaard books and education:
Calibrating computer screen for photographers   Thorsten Overgaard Masterclasses & Workshops
Quality of Light   Overgaard Lightroom Survival Kit for Lightroom CC/6
Lightmeters   "Finding the Magic of Light" eBook (English)
Color meters for accurate colors (White Balance)   "Die Magie des Lichts Finden" eBook (German)
White Balance & WhiBal   "Composition in Photography" eBook
Film in Digital Age   "The Moment of Impact in Photography" eBook
Dodge and Burn   "Freedom of Photographic Expression" eBook
All You Need is Love
How to shoot Rock'n'Roll   "After the Tsunami" Free eBook
X-Rite   The Overgaard New Inspiration Extension Course I
The Origin of Photography   The Overgaard Photography Extension Course
Case in Point
The Good Stuff
Hasselblad/Imacon Flextight 35mm and 6x6 scanner   "Magic of Light" Television Channel
Leica OSX folder icons   Thorsten von Overgaard YouTube Channel

Leica Photographers:
Jan Grarup   Riccis Valladares
Henri Cartier-Bresson   Christopher Tribble
Birgit Krippner   Martin Munkácsi
John Botte   Jose Galhoz

Douglas Herr
Vivian Maier
Morten Albek
Byron Prukston

The Story Behind That Picture:   Thorsten Overgaard on Instagram
More than 100 articles by Thorsten Overgaard   Join the Thorsten Overgaard Mailing List
Thorsten Overgaard Workshop Schedule   Thorsten Overgaard on Twitter
    Thorsten Overgaard on Facebook
Leica Forums and Blogs:
Leica M10 / M240 / M246 User Forum on Facebook   Heinz Richter's Leica Barnack Berek Blog
The Leica User Forum   Leica Camera AG
Steve Huff Photos (reviews)   Leica Fotopark
Erwin Puts (reviews)   The Leica Pool on Flickr
LeicaRumors.com (blog)   Eric Kim (blog)
Luminous Landscape (reviews)   Adam Marelli (blog)
Sean Reid Review (reviews)   Jono Slack
Ken Rockwell (reviews)   Shoot Tokyo (blog)
John Thawley (blog)   Ming Thein (blog)
  I-Shot-It photo competition


The Von Overgaard Gallery Store:
Hardware for Photography   Von Overgaard Ventilated lens shades:
Software for Photography   Ventilated Shade for Current 35mm Summilux FLE
Signed Prints   Ventilated Shade for older Leica 35mm/1.4 lenses
Mega Size Signed Prints   Ventilated Shade for Leica 50mm Summilux-M ASPH
Mega Size Signed Limited Prints   Ventilated Shade E43 for older 50mm Summilux
Medium Size Signed Limited Prints   Ventilated Shade for 35mm Summicron-M ASPH
Small Size Signed Limited Prints   Ventilated Shade for older 35mm/f2 lenses
Commisioning Thorsten Overgaard Worldwide   Ventilated Shade for 50mm Summicron lenses
Thorsten Overgaard Archive Licencing   Ventilated Shade for Leica 28mm Summilux
Vintage Prints   Ventilated Shade for current 28mm Elmarti-M
Photography Books by Thorsten Overgaard   Ventilated Shade for older 28mm Elmarti-M
Home School Photography Extension Courses   Ventilated Shade for 75mm Summicron (coming)
Overgaard Workshops & Masterclasses   ventilated Shade E55 for 90mm Summicron
Artists Nights   Ventilated Shade for 28mm Summaron
    Ventilated Shade for 24mm Elmarit
Gallery Store Specials   Ventilated ShadeE60 for 50mm Noctilux and 75/1.4

Above: Leica 75mm Summilux-M f/1.4 (model no 11 810) from 1999 on Leica M9 vs Leica 80mm Summilux-R f/1.4 mounted on Leica M 240 via the Leica
R-Adapter M
.


Leica logo

LEItz CAmera = LEICA
Founded 1849 in Wetzlar, Germany.





Definitions

What does Summarex mean?
The lens was supposedly named after the dog Rex of lens designer Max Berek (1886-1949). Then again, Rex refers to "King" and Summar is "the sum of", or "highest".

What does Summilux mean?
Refers to the maximum lens aperture - here f/1.4 , "-lux" added for "light".








Also visit:

Overgaard Photography Workshops
Von Overgaard Gallery Store
Von Overgaard Ventilated Shades
Thorsten Overgaard Books
Leica Definitions
Leica History
"Photographer For Sale"
Leica Lens Compendium
Leica Camera Compendium
Leica 21mm Super-Elmar-M ASPH f/3.4
Leica 21mm Summilux-M ASPH f/1.4

Leica 28mm Summilux-M ASPH f/1.4
Leica 35mm Summilux-M ASPH f/1.4
Leica 35mm Summicron-M ASPH f/2.0
Leica 50mm Noctilux-M ASPH f/0.95
Leica 50mm APO-Summicron-M f/2.0
Leica 50mm Summicron-M f/2.0
Leica 50mm Summilux-M ASPH f/1.4
Leica 75mm Summilux-M f/1.4
Leica 90mm Summicron-M ASPH f/2.0
Leica 35-70mm Vario-Elmarit-R f/2.8
Leica Cine lenses from CW Sonderoptic
Leica Digilux 2

Leica M10
Leica M9, M9-P and Leica ME
Leica M 240
Leica M 240 Video
Leica M 262
Leica M-D 262
Leica M Monochrom
Leica M 246 Monochrom

Leica SL full-frame mirrorless
Leica R9 and R8 SLR with digital back
Leica Q
Leica TL2
Leica Sofort
Leica S digital medium format
Leica X
"On The Road With von Overgaard"
Light metering
White Balance for More Beauty
Color Meters

Screen Calibration
Which computer to get
Sync'ing photo archive to iPhone
Lightroom Survival Kit
The Story Behind That Picture



Thorsten Overgaard
Thorsten von Overgaard is a Danish writer and photographer, specializing in portrait photography and documentary photography, known for writings about photography and as an educator. Some photos are available as signed editions via galleries or online. For specific photography needs, contact Thorsten Overgaard via e-mail.

Feel free to e-mail to thorsten@overgaard.dk for
advice, ideas or improvements.






Photo seminars Berlin Copenhagen and Hong Kong

















Join a Thorsten Overgaard
Photography Workshop

I am in constant orbit teaching
Leica and photography workshops.

Most people prefer to explore a
new place when doing my workshop.
30% of my students are women.
35% of my students dotwo or more workshops.
95% are Leica users.
Age range is from 15 to 87 years
with the majority in the 30-55 range.
Skill level ranges from two weeks
to a lifetime of experience.
97% use a digital camera.
100% of my workshop graduates photograph more after a workshop.

I would love to see you in one!
Click to see the calendar.


St. Louis   Chicago

Hong Kong



New York

Shanghai



Boston

Beijing



Washington DC

Tokyo



Toronto

Kyoto

  Montreal

Taipei

  Québec
Seoul

Seattle

Jakarta



San Francisco

Bali



Los Angeles

Manila



Las Vegas

Singapore



Santa Barbara

Kuala Lumpur



Santa Fe

Bangkok



Austin

Sydney



Clearwater

Perth



Miami

Melbourne



Cuba

Auckland



São Paulo

Napier



Rio de Janeiro

Moscow



Cape Town

Saint Petersburg



Tel Aviv

Oslo



Jaffa

Malmö



Istanbul

Stockholm



Palermo

Aarhus



Rome

Copenhagen

  Venice

Amsterdam

  Wetzlar

Frankfurt

  Mallorca

Berlin

  Madrid

Münich



Barcelona

Salzburg



Amsterdam

Vienna



Paris

Cannes

London

Reykjavik   Portugal
Roadtrip USA   Milano

























  · © Copyright 1996-2017 · Thorsten von Overgaard




© 1996 - 2017 Thorsten von Overgaard. All rights reserved



Web Analytics
